cost effective 4K UHD 8X8 HDMI Matrix Switch Control Switcher With Remote And RS232 4K 60Hz

cost effective 4K UHD 8X8 HDMI Matrix Switch Control Switcher With Remote And RS232 4K 60Hz

FOB Reference Price: Get Latest Price

≥1 Pieces

US $410

≥21 Pieces

US $394

≥51 Pieces

US $363

≥101 Pieces

US $330

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Black

Quick Details

Model Number:: HDMX8x8-V1.4

Brand Name:: ruition

Place of Origin:: Guangdong, China

Color:: Black

Our advantage

Shenzhen Ruition Industrial Limited Company is a professional manufacturer of all types of HDMI adapters integrating development and production together.

Our main products include HDMI Splitters, extenders, converters, switchers, and related products. Located Shenzhen, Guangdong, China, We enjoy convenient air, land and sea transportation. Currently, our products have already been sold to Europe, the Middle East, Southeast Asia, Hong Kong and Macao regions, and many other places.

Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We are Hoping and welcome you to contact us

>>>> For product design and development, please contact us! ! !

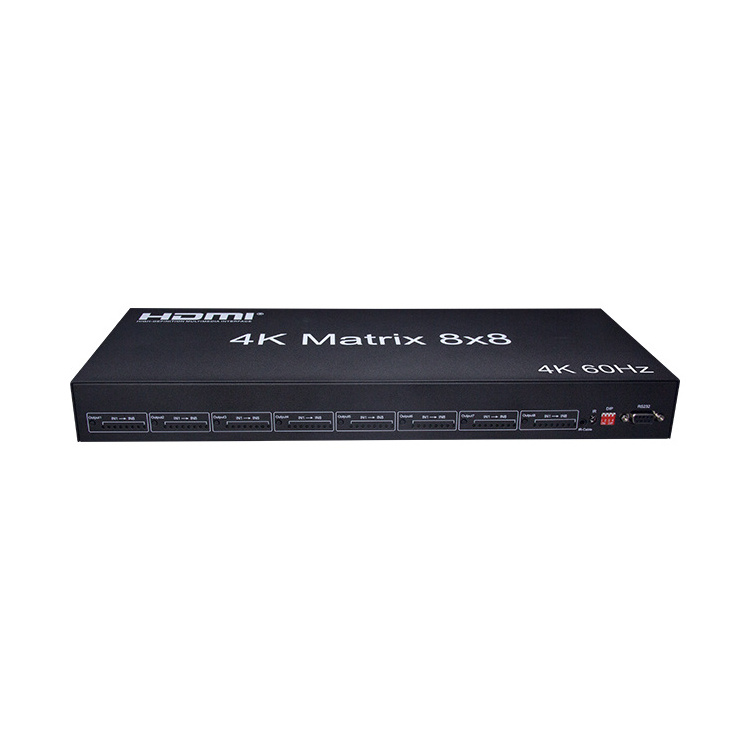

cost-effective 4K UHD 8X8 HDMI Matrix Switch Control Switcher With Remote And RS232 4K 60Hz
INTRODUCTION The HDMI Matrix 8x8 can connect eight HDMI signal sources with the eight displays at the same time.It can easily and freely split or switch eight hdmi signals on eight displays or projectors which compatible with hdmi signal. Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control.

HDMI matrix 8x8 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss.This HDMI matrix offers solutions for digital entertainment center, HDTV,retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference r ntation, school and corporate training environments.

Features :
* Very compact structure
* Stable and reliable
* Economical and cost-effective
* Support 3D;
* Support IR Remote Control;
* Support RS232 Control;
* The eight outputs could show the same or different source simultaneously;
* Support 4K (input) resolution 2K (output) (Downscaling);

SPECIFICATIONS
HDMI resolution	up to 4K/60Hz
Support video format	8/10/12 bit deep color
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3
Max baud rate	18Gbps
Input cable distance	≤5m HDMI AWG26(4K);≤20m HDMI AWG26(1080P)
Output cable distance	≤5m HDMI AWG26(4K);≤20m HDMI AWG26(1080P)
HDMI Input	8
HDMI Output	8
Max working current	2.6A
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
Operating Temperature range	(-15 to +45℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	276x143x26 (mm)
Weight	720.5g

Product show

1: DC/12V --- DC 12V/3A;

2: ON/OFF --- Power switch;

3: HDMI Input1→HDMI Input8 --- HDMI Input 1-8 port;

4: HDMI Output1→HDMI Output8 --- HDMI Output 1-8 port ;

5: Output1 - Output8 --- Output selection;

IN1→IN8 --- LED indicator of Input for each output selection;

6: IR Cable --- IR extension port ;

7: IR --- IR port;

8: DIP --- EDID;

9: RS232 --- RS232 port;

Noted: the dial switch to dial downward is 1, dial upward is 0.

Operating and Connecting :
1. Connect each HDMI source devices and input of HDMI Matrix with HDMI cable.
2. Connect display devices and output of HDMI Matrix with HDMI cable.
3. Use the switch button or IR remote control to switch the signal source freely.
4. Connect 12V power supply to the HDMI 8x8 Matrix.
5. How to use RS-232 port?
Through RS - 232 port you can update software and monitor the state of the input and
output signals. And can switch signals. When connects the computer, customer can
easily switch the signals via computer.

Notes:
Please use correctly and maintenance properly, to ensure product performance and
work properly
1. Should stay away from damp, high temperature, dusty, corrosion and oxidation gas
environment in order to avoid damage.
2. All parts should avoid strong vibration, no collision,tapping and dropping fall, to avoid
damage.
3. Do not touch the unit power adapter plugs with wet hand.
4. Unplug the adapter plug from the power socket, please hold the plug, don't pull the
power cord.
5. please turn off the power supply when not use the machine(unplug the power adapter
plug when not use for a long time).
6. Please do not open the machine cover, do not touch any device in the machine.
7. Please use the power adapter provided or approved by the manufacturer.

The Package includes:

1. HDMI Matrix 8x8
2. IR Remote Control
3. IR Receiver cable
4.12V DC Power adapter
5. User manual
