Quick Details
-
Brand Name:
-
Rice Micro
-
CPU:
-
PXA3XX (624MHZ)
-
operating system:
-
Windows CE 6.0
-
agreement:
-
ISO18600B/C, EPC Gen2
-
memory:
-
2GB RAM, 16GB ROM
-
Reading distance:
-
0.6-4 meters
-
Type of reading:
-
Barcode/RFID
-
screen:
-
TFT-LED QVGA
-
watertight:
-
IP65
-
accumulator:
-
7.4V,2500mah/3.7V 5000mah
-
Product name:
-
RFID reader
Quick Details
-
Frequency:
-
624MHZ
-
Protocol:
-
ISO18600B/C
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Rice Micro
-
CPU:
-
PXA3XX (624MHZ)
-
operating system:
-
Windows CE 6.0
-
agreement:
-
ISO18600B/C, EPC Gen2
-
memory:
-
2GB RAM, 16GB ROM
-
Reading distance:
-
0.6-4 meters
-
Type of reading:
-
Barcode/RFID
-
screen:
-
TFT-LED QVGA
-
watertight:
-
IP65
-
accumulator:
-
7.4V,2500mah/3.7V 5000mah
-
Product name:
-
RFID reader
Product Description

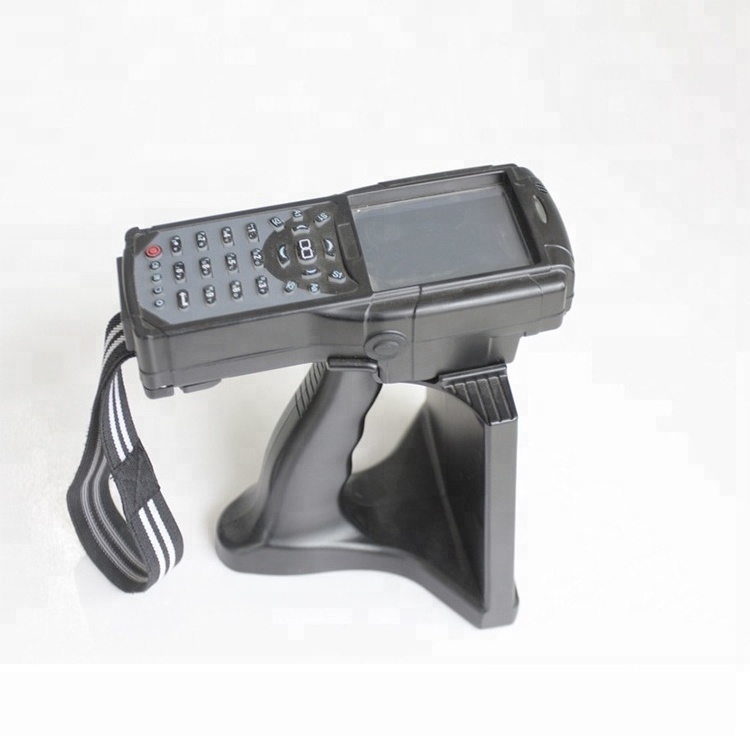

RICE Micro Windows/Android UHF/HF/LF/RFID UHF Reader Module Handheld/Barcode/Reader
|
CPU
|
|
PXA3XX (624 MHz)
|
|
operating system
|
|
Windows CE 6.0 R3 (language customizable)
|
|
memory
|
RAM
|
2GB
|
|
|
F-ROM
|
16GB
|
|
Barcode scanning engine
|
scanner
|
1D/2D laser barcode scanner
|
|
|
module
|
Optical/Moto
|
|
|
Scanning speed
|
100 times per second +-2 times
|
|
|
Scan distance
|
60-400 mm
|
|
|
angle
|
54 ± 5
|
|
|
width
|
60-360 mm at the maximum reading distance
|
|
|
resolution
|
0.127-1.00 mm
|
|
|
code
|
Upc-a; Upc-e; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Sanguang Code 39; Code 39 full ASCII; Code
93;Code 11; Staggered 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 database 14; GS1 Database Ltd., GS1 Database Extension; |
|
RFID
|
LF 125KHZ
|
The maximum reading is 10 cm
|
|
|
LF 134.2khz
|
The maximum reading is 10 cm
|
|
|
High frequency 13.56 MHz
|
The maximum reading is 10 cm
|
|
|
UHF 860-928M
|
Maximum reading above 4 meters
|
|
LCD
|
type
|
TFT, LED QVGA touch screen
|
|
|
resolution
|
QVGA (240x320) is sunlight readable
|
|
|
size
|
3.5 inches
|
|
input
|
Soft keyboard
|
English, Chinese input (multi-language customizable)
|
|
|
Hard keyboard
|
30 keys
|
|
Industry standard
|
|
IP65
|
|
Working environment
|
Operating temperature.
|
-15 ~ + 50 ℃
|
|
|
Storable temperature.
|
-20 ~ + 60 ℃
|
|
|
Work wet
|
5-95%
|
|
|
Wet storage
|
5-95%
|
|
|
Drop-proof
|
4 inches (1.2 meters) multi-drops
|
