Quick Details
-
Brand Name:
-
GDZX
-
Model Number:
-
ZX-106
-
Product name:
-
Automatic Transformer Oil trace Moisture Tester
-
Power supply::
-
AC 220V±10V ,50Hz±2.5Hz
-
Work rate::
-
50VA
-
Ambient humidity::
-
≤85%
-
Size and weight::
-
49*44*26cm; 13kg
-
Range::
-
0ug~ 200mg (10ug~100ug)
-
Test sample type::
-
solid, liquid, gas
-
Data storage::
-
1000 test records
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
GDZX
-
Model Number:
-
ZX-106
-
Product name:
-
Automatic Transformer Oil trace Moisture Tester
-
Power supply::
-
AC 220V±10V ,50Hz±2.5Hz
-
Work rate::
-
50VA
-
Ambient humidity::
-
≤85%
-
Size and weight::
-
49*44*26cm; 13kg
-
Range::
-
0ug~ 200mg (10ug~100ug)
-
Test sample type::
-
solid, liquid, gas
-
Data storage::
-
1000 test records
Factory Sale Water Content Tester Oil Content Analyzer Determine Automatic Transformer Oil Trace Moisture Tester
Introduction

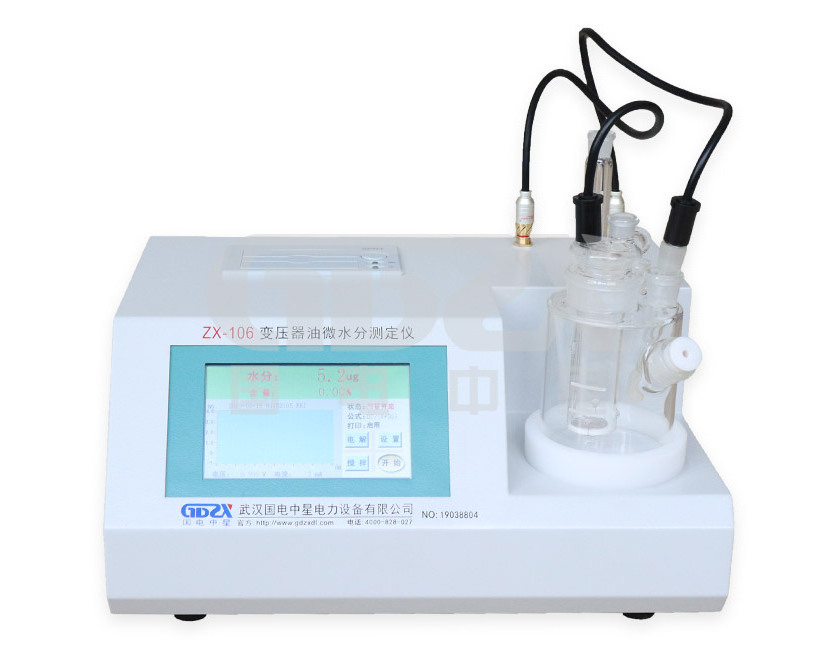

ZX-106 Automatic Transformer Oil Trace Moisture Tester by Karl Fisher coulomb tit-ration method, can reliably on liquid, gas and solid samples for trace moisture determination. When testing, for insoluble solid reagent and easy contamination of the electrode and reagent material can be equipped with corresponding solid, gas and liquid injector for indirect determination, is a kind of highly efficient, fully automatic analysis instrument. Widely used in electric power, petroleum, chemical, pharmaceutical, railway, environmental protection, scientific research institutions and other industries.
Features
1. Electrode open circuit fault and short circuit fault auto-detection function;
2. Built-in thermal printer, can do off-line printing;
3. With Screen protection function to extend LCD life span;
4. High precision and rapid measuring speed;
Technical index
|
1.Drop formula: |
electric quantity tit-ration (Coulomb analysis) |
|
2.Range: |
0ug~ 200mg (10ug~100ug) |
|
3.Sensitivity threshold: |
0.1ug |
|
4.Accuracy: |
3-1000ug ±3ug, The above 1000ug is not more than ±0.2% (Error without sampling, ambient humidity); |
|
5.Test sample type: |
solid, liquid, gas |
|
6.Display formula: |
64K color high definition touch monitor |
|
7.Data storage: |
1000 test records |
|
8.State indication: |
Dynamic curve, text display |
|
9.Stir mixing speed: |
sliding touch panel speed control |
|
10.Time period: |
ten years of normal operation of power down time |
|
11.Printer: |
micro thermal printer, paper width 56mm |
|
12.Power source: |
220V 10V + AC, 50Hz + 2.5Hz |
|
13.Work rate: |
50VA |
|
14.Ambient temperature: |
5~35℃ |
|
15.Ambient humidity: |
≤85% |
|
16.Size and weight: |
49*44*26cm; 13kg |
