Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SHINING
-
Model Number:
-
TF-35
-
Cable Connector:
-
Din Cable Connector
-
Din Cable Connector:
-
35mm Cable Connector
-
Rating Voltage:
-
600V
-
Rating Current:
-
110A
-
Solid Wire Size:
-
2.5~50.0 mm2
-
Stranded Wire Size:
-
2.5~35.0 mm2
-
Wire Size:
-
AWG 16-2
-
Pole / Way / Pin / Position:
-
Any
Quick Details
-
Type:
-
Screw
-
Application:
-
Power
-
Gender:
-
Female
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SHINING
-
Model Number:
-
TF-35
-
Cable Connector:
-
Din Cable Connector
-
Din Cable Connector:
-
35mm Cable Connector
-
Rating Voltage:
-
600V
-
Rating Current:
-
110A
-
Solid Wire Size:
-
2.5~50.0 mm2
-
Stranded Wire Size:
-
2.5~35.0 mm2
-
Wire Size:
-
AWG 16-2
-
Pole / Way / Pin / Position:
-
Any
| TF-35 Euro Type 600V 110A Screw Clamp 35mm Din Cable Connector |
| Gerneral Product Information | |
| Item number: | TF-35 |
| Rating: | 600V, 110A |
| Size: | 58.0*16.0*71.0mm (L*W*H) |
| Wire Size: | 35.0 mm 2 (Stranded)/ 50.0 mm 2 (Solid) |
| Wire Size: | AWG 16~2 |
| Dimensions [mm] | ||||
| Item No. | Wire Range | Length (L) | Width (W) | Height (H) |
|
TF-
2.5
|
2.5 mm 2 | 48.0 mm | 5.0 mm | 47.0 mm |
|
TF-
4
|
4.0 mm 2 | 48.0 mm | 6.0 mm | 47.0 mm |
|
TF-
10
|
10.0 mm 2 | 48.0 mm | 8.0 mm | 47.0 mm |
|
TF-
16
|
16.0 mm 2 | 50.0 mm | 12.0 mm | 58.0 mm |
| TF- 35 | 35.0 mm 2 | 58.0 mm | 16.0 mm | 71.0 mm |
|

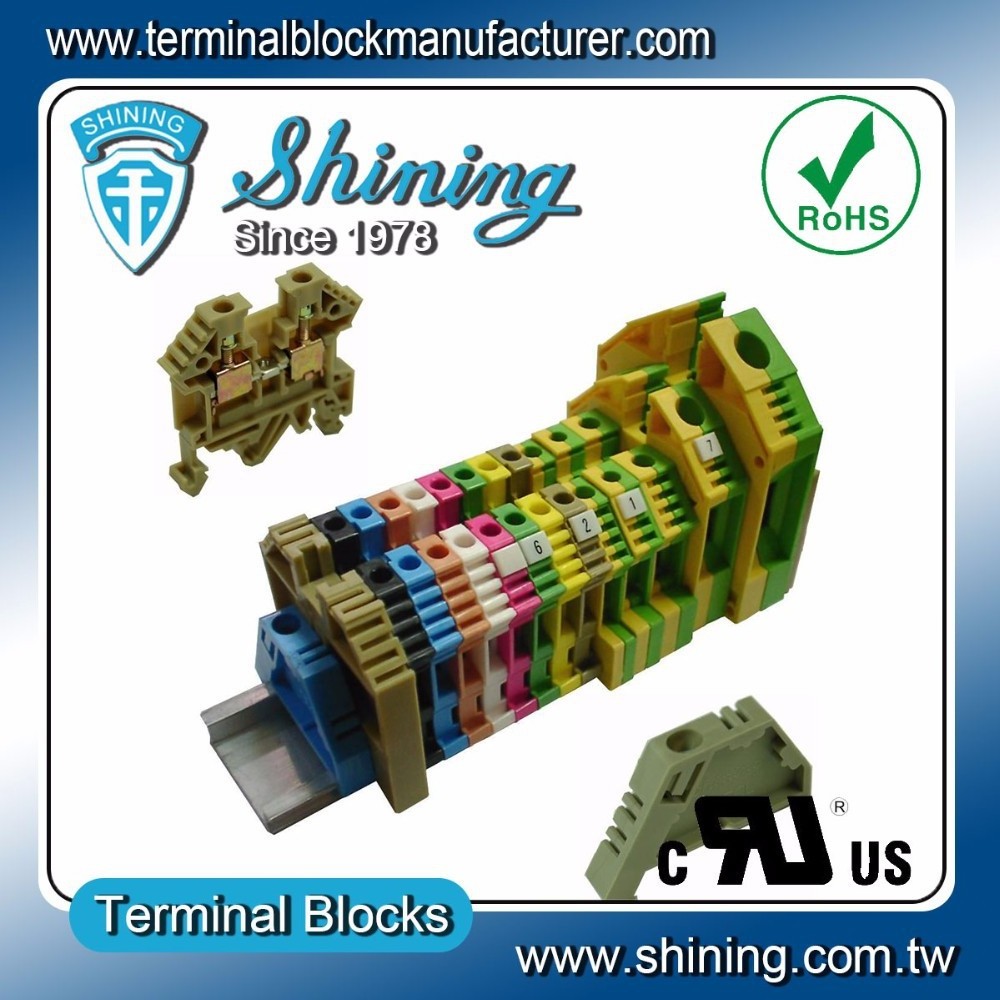

Product Photos
|
| Product Features |
|
Item Number:
TF-35
Rated Voltage: 600V Rated Current: 110A Install Type: By 35mm Din Rail Pole: Any Pole Assembly is available Certificate: RoHS / UL Approved. Assembl y with Din Rail TA-001A / TA-001S
The TF Series Feed Through Terminal Blocks offer savings in cost, space and time. These Terminal Blocks mount on Standard 35 x 7.5 mm DIN Rails and are design to meet world wide standards. The TF Series Terminal Blocks come in all wire ranges and no pre-treatment of the wire is necessary, even for stranded wire . A full line of accessories are available including End Plates , End Brackets ( End Clamps) , cross connectors for Circuit Bridge and Marking Tags . The TF Series Terminal Block plastic housing is made from Nylon with a UL94-V0 rating for 85°C . This assures ample dielectric strength for any industrial application. The Screws and Clamps are made of Steel with Zinc Plating , and together they generate a high locking action and provides an excellent vibration and corrosion resistant connection. |
| Item No. | TF-2.5 | TF-4 | TF-10 | TF-16 | TF-35 | Remark |
| Specifications |
|
|||||
| L x W x H [mm] | 48x5x47 | 48x6x47 | 48x8x47 | 50x12x58 | 58x16x71 | |
| Rated Torque [N-m] | 0.34 | 0.62 | 0.11 | 1.81 | 2.82 | |
| Rated Torque [in-lb] | 3.0 | 5.5 | 11.0 | 16.0 | 25.0 | |
| Poles / Positions (P) | Any (n: the Number of Poles) | |||||
| Electrical Specification | ||||||
| Rated Voltage [V] | 600V | |||||
| Rated Current [A] | 17A | 35A | 53A | 65A | 110A | |
| Solid Wire Size [mm 2 ] | 0.2~4mm 2 | 0.2~6mm 2 | 0.2~10mm 2 | 2.5~25mm 2 | 2.5~50mm 2 | |
| Stranded Wire Size [mm 2 ] | 0.2~2.5mm 2 | 0.2~4mm 2 | 0.2~10mm 2 | 2.5~16mm 2 | 2.5~35mm 2 | |
| Wire Size [AWG] | 30~12 | 28~8 | 28~6 | 26~6 | 16~2 | |
| Materials | ||||||
| Insulator Materials | Nylon | |||||
| Color | Beige(Gray), Blue, or other colors. (White, Black, Red, Green, ...) | |||||
| Flame Retarded Grade | UL94V-0 | |||||
| Temperature [℃] | 85℃ | |||||
| Approval | UL/cUL approved. File No. E257927 | |||||
| Accessories & Parts | ||||||
| End Plate | TF-EP2.5-10 | TF-EP16 | TF-EP35 | |||
| End Clamp | TF-ECL (TF-ECH) | TF-ECH | ||||
| DIN Mount Rail | TA-001A / TA-001S (35mm DIN Rail) | |||||
|
Marker Strip (10pcs / strip) |
M-MKH5X5- M-MKH5X5-10 M-MKH5X5-11 M-MKH5X5-22 M-MKV5X5-10 M-MKH5X5-N M-MKH5X5-G M-MKH5X5-L1 M-MKH5X5-11 |
M-MKH6X5- (Blank) M-MKH6X5-11 (Horizontal 1~1) M-MKH6X5-10 (Horizontal 1~0) M-MKV6X5-10 (Vertical 1~0) M-MKV6X5-22 (Vertical 2~2) M-MKH6X5-N (Horizontal N) M-MKH6X5-G (Horizontal grounding symbol) M-MKH6X5-L1 (Horizontal L1)(L2, L3 are availabel) M-MKH6X5-11 (Horizontal 11~20) M-MKV6X11-380 (Vertical 380) M-MKV6X11-12V (Vertical 12V)
|
Color: White (Print: Black) Blank, N, Grounding, L1, L2, L3,... 1~0, 11~20, .../0, 1, 2, 3, ...~0v |
|||
| Bridge Assembly Kit 10P |
TF-BAK2.5- P10 |
TF-BAK4- P10 |
TF-BAK10- P10 |
TF-BAK16- P10 |
TF-BAK35- P10 |
A 10P short circuit Bridge Assembly Kit (BAK) include 10bridge screws, 10 bridge tube, and a 10P bridge bar. |
| Short Circuit Bridge Kit 2P (2P~9P available) |
TF-BAK2.5- P2 (P2~P9) |
TF-BAK4- P2(P2~P9) |
TF-BAK10- P2 (P2~P9) |
TF-BAK16- P2 (P2~P9) |
TF-BAK35- P2 (P2~P9) |
A 2P short circuit Bridge Assembly Kit (BAK) include 2 bridge screws, 2 bridge tubes, and a 2P bridge bar. |
| Bridge Screw (BS) | TF-BS2.5 | TF-BS4-16 | TF-BS35 | Small package: 25, 50, 100pcs/ per bag | ||
| Bridge Tube (BT) | TF-BT2.5 | TF-BT4-16 | TF-BT35 | Small package: 25, 50, 100pcs/ per bag | ||
| Bridge Bar (BB) 10P |
TF-BB2.5- P10 |
TF-BB4- P10 |
TF-BB10- P10 |
TF-BB16- P10 |
TF-BB35- P10 |
A 10Poles Bridge Bar |
| Bridge Bar (BB) 2P (2P~9P available) |
TF-BB2.5- P2 (P2~P9) |
TF-BB4- P2 (P2~P9P) |
TF-BB10- P2 (P2~P9) |
TF-BB16- P2 (P2~P9) |
TF-BB35- P2 (P2~P9) |
A 2Poles Bridge Bar, 2~9P available |
| Partition Plate (PT) | TF-PT2.5 |
TF-PT4- 10 |
TF-PT16 | TF-EP35 | Partition Plate for short circuite bridge | |
| Packaging |
|
100pcs/box, 400pcs/4boxes/N.W. :21.8kgs /carton
|
