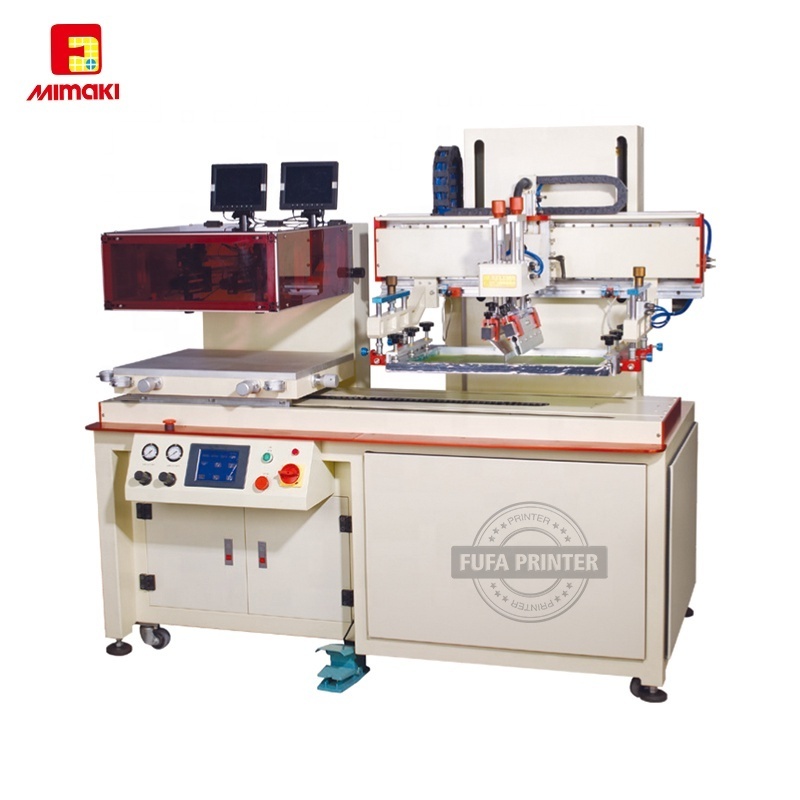

Semi auto CCD precision silk screen printing machine

Applications:

Be applied to touch screen panel,screen display,PC board,cool light board,current-conducting bpard ,LCD display board,keyboard,instrument electronic components etc .

CCD video para can finish high precision items.

Advantage of this machine

1.Machine material:cast alloy aluminum which is lighter and durable

2.PLC control panel or servo motor can design as your reequipments

3.Printing accuracy can reach +-0.01mm

4. The screw on the machine is durable

5.Parts process by CNC or worker, more accuracy

Parameter

Feature :

1.Motor vertical lifting design,adopt precision guide rail lift and steady.

2.CCD video para design,more efficiency and accurate positioning

3.Fast set up and servo drive

4.It is easy and rapid to change/install frame/fixed position, save installation time enhance productivity by touch panel

5.Easy PLC control.offer multifunction setting.keeping the working datamation,standardized

6.With urgent switch,safe return system and automatic debug warning,safety protection

To finish silk screen printing process , you should need follow consumbles (  Screen frame /  JIg / Ink and thinner / Squeegee)

27 years exported experience to ensure safety arrive at your factory ( solid standard exported plywood case)

After-sale service :. if the parts of machine have any problem in one year,we will freely change the

parts.and provide the technical support for ever.If you have any problem for the machine,you could contact us at any time, we have professional staff to answer for you.
