Quick Details
-
Drilling Depth:
-
230MM
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
HW
-
Weight:
-
3600 KG
-
Drilling Depth:
-
230MM
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
Product Description

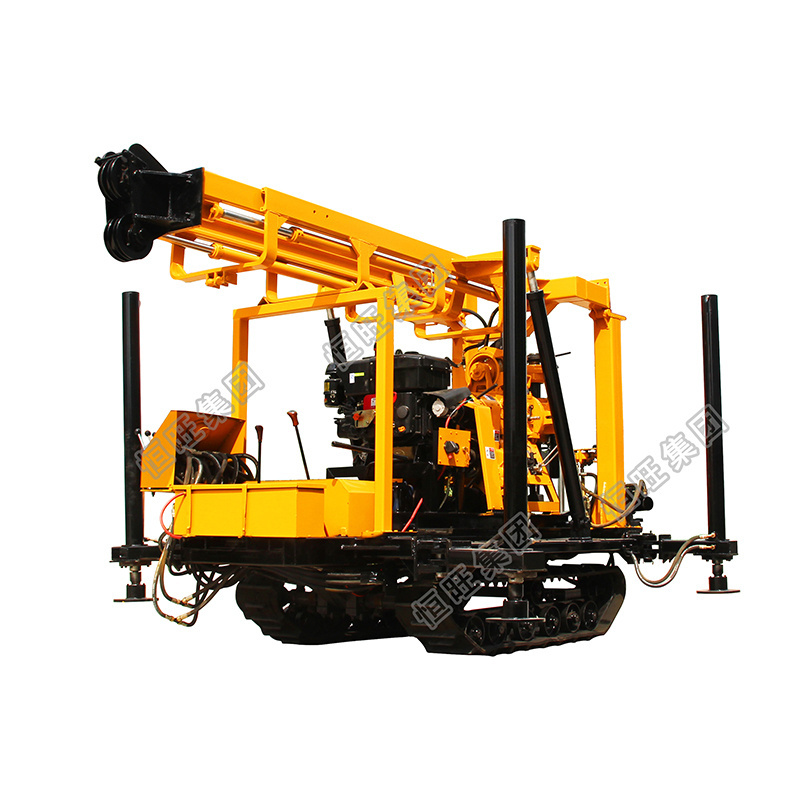

* 1.This drilling rig use the automatic telescopic drilling tower,supported by two high strength cylinder.and a set of Hydraulic valve control the drilling tower up and down.The operation is saving of time and labor, safety and reliable,to maximize create the benefits for users.
* 2.The Chassis use the Rubber tracks,Lighter weight can reduce the voice from the vehicle moving,and reduce the vehicle body vibration,then can reduce the fuel consumption.it can walk on the city road and dosen’t hurt the road
* 3.The Chassis comes with hydraulic legs,can use for rig leveling,loading and unloading,it can also can be used as ancillary support when machine working4、24Ve1ectric-start diesel engine reduces the operator's labor intensity.
* 2.The Chassis use the Rubber tracks,Lighter weight can reduce the voice from the vehicle moving,and reduce the vehicle body vibration,then can reduce the fuel consumption.it can walk on the city road and dosen’t hurt the road
* 3.The Chassis comes with hydraulic legs,can use for rig leveling,loading and unloading,it can also can be used as ancillary support when machine working4、24Ve1ectric-start diesel engine reduces the operator's labor intensity.
Specification
|
Machine parameter |
Model
|
HW-230L
|
|
|
Drilling depth(m)
|
230m
|
|
|
Open hole dia. (mm)
|
500/273
|
|
|
End hole dia. (mm)
|
75
|
|
|
Drill rod dia. (mm)
|
42/50
|
|
|
drill angle (° )
|
90-75
|
|
|
Matching engine power (kW)
|
15
|
|
|
Weight without power (kg)
|
3600
|
|
|
Dimension L*W*H(m)
|
3.8*1.95*2. 7
|
|
Spindle
|
Speed (r/min)
|
64/128/287/557
|
|
|
Stroke (mm)
|
450
|
|
Crawler chassis
|
Crawler size (mm)
|
350*90*48
|
|
|
Climbing angle (° )
|
20°
|
|
|
Moving speed (km/h)
|
10
|
|
|
Hydraulic leg valid height(mm)
|
1300
|
|
Drill tower
|
Rated load (ton)
|
18
|
|
|
Height (m)
|
6.5
|
|
Mud pump |
Flow (L/min)
|
160
|
|
|
Max. pressure (MPa)
|
1.3
|
|
|
Reciprocating times/min
|
165
|
|
|
Inlet hose dia. (mm)
|
51
|
|
|
Outlet hose dia. (mm)
|
32
|
