Quick Details
-
Dimension(L*W*H):
-
(L)3230*(W)1150*(H)2400mm
-
Year:
-
2024
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
2200 KG
-
After Warranty Service:
-
Online support, Spare parts, Field maintenance and repair service
-
Color:
-
Blue/green or as your requirments
-
Advantage:
-
Energy saving 1/3 compare with similar machines
-
Output::
-
40pcs/hour
-
working layers:
-
1-4 layers
-
Garansi:
-
1.5 Tahun
-
Certificate:
-
ISO ,CE
-
Keyword:
-
Scrap Tyre Powder To Rubber Tile Production Line
-
Application:
-
Vulcanizing Rubber Products
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HVST
-
Voltage:
-
380V/220V/450V
-
Dimension(L*W*H):
-
(L)3230*(W)1150*(H)2400mm
-
Year:
-
2024
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
2200 KG
-
After Warranty Service:
-
Online support, Spare parts, Field maintenance and repair service
-
Color:
-
Blue/green or as your requirments
-
Advantage:
-
Energy saving 1/3 compare with similar machines
-
Output::
-
40pcs/hour
-
working layers:
-
1-4 layers
-
Garansi:
-
1.5 Tahun
-
Certificate:
-
ISO ,CE
-
Keyword:
-
Scrap Tyre Powder To Rubber Tile Production Line
-
Application:
-
Vulcanizing Rubber Products
Rubber floor mats for cars manufacturing machine
1.1.Rubber floor tile making machine 1.2.automatic control 1.3.equiped with lead rail 1.4.electric heating 1.5.design accordingly
|
MOdel Name
|
550*550*4
|
600*600*4
|
1000*1000*2
|
|
Total Pressure
|
0.50MN
(50 TONS)
|
1.00MN
(100 TONS)
|
1.20MN
(120TONS)
|
|
Plate Size
|
550*550*60
|
680*680*60mm
|
1100*1100mm
|
|
Plate Material
|
Q235B
|
Q235B
|
Q235B
|
|
Dyalight
|
150mm
|
200mm
|
150mm
|
|
Working Layer
|
4
|
4
|
2
|
|
Pressure on Unit Area
|
1.65Mpa
|
1.6Mpa
|
16.0Mpa
|
|
Motor Power
|
2.2kw
|
2.2kw
|
5.5kw
|
3. Application

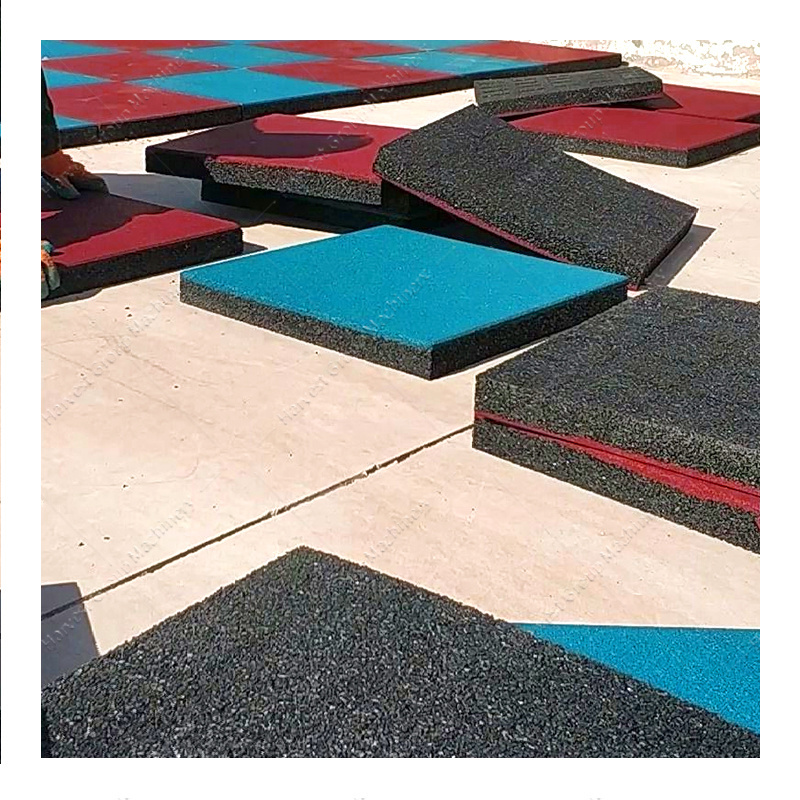

It is mainly used for making the rubber ground tile, and it is also applied to vulcanizing other
rubber and plastic products and so on.
4.Structure
1.The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron; hydraulic cylinder material is ductile cast iron; weldment between top and bottom crossing.
4.2. Put holder and oil cylinder at the side of plate, push off and resetting moulds are finished by oil cylinder moving when
using. There is not ejecting holder in manual ejecting mould structure, but still convenient when using.
4.3.Hydraulic system is consisting of unipump, operating valve and control system.
4.4.Electric system is consisting of oil pump motor and vulcanizing timing. When working pressure reach 22.1 Mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.
It is mainly used for making the rubber ground tile, and it is also applied to vulcanizing other
rubber and plastic products and so on.
4.Structure
1.The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron; hydraulic cylinder material is ductile cast iron; weldment between top and bottom crossing.
4.2. Put holder and oil cylinder at the side of plate, push off and resetting moulds are finished by oil cylinder moving when
using. There is not ejecting holder in manual ejecting mould structure, but still convenient when using.
4.3.Hydraulic system is consisting of unipump, operating valve and control system.
4.4.Electric system is consisting of oil pump motor and vulcanizing timing. When working pressure reach 22.1 Mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.
Product Description
|
Step 1. Automatic Mixer: Applications： it is mainly use to mix rubber granules and glue, for the bottom or rubber tile
|
|
|
|
Motor Power
|
2.2KW
|
|
|
Overall Size
|
1000*1000*850mm
|
|
|
Depth
|
320mm
|
|
|
Diameter
|
850mm
|
|
|
Each Processing Range
|
180L
|
|
|
Mixing Time
|
3-6minutes
|
|
|
Weight
|
180kg
|
|
|
Step 2: Vulcanizing machineApplication: Rubber granules(powder), pigment and glue, for the top of rubber tile. By this machine
|
|
|
|
Motor power
|
3kw
|
|
|
Output
|
mixture of all input
|
|
|
capacity
|
50L/Batch
|
|
|
Feature
|
4 Barrel can use to mix different colors
|
|
|
Control Way
|
automatic system
|
|
|
Overall sizes
|
1200x650x1850mm
|
|
|
Weight
|
200kg
|
|
Step 3: Rubber Tile Making Machine
Step 4： Molds for different shape of rubber tiles
Finished Rubber Powder
Customer feedback
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
Customer Site
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
