Quick Details
-
Machine Type:
-
Beading Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Field maintenance and repair service, Field installation, commissioning and training, Video technical support
-
Raw Material:
-
Steel Bar
-
Extra Services:
-
Machining
-
product name:
-
Steel Round Bar Bending Machine
-
Voltage::
-
380v,50hz,3 phase
-
Bending diameter:
-
6-50mm
-
Weight::
-
342kg
-
Packing size:
-
1.04*0.87*0.965m
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGYUAN
-
Weight (KG):
-
109
-
Machine Type:
-
Beading Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Field maintenance and repair service, Field installation, commissioning and training, Video technical support
-
Raw Material:
-
Steel Bar
-
Extra Services:
-
Machining
-
product name:
-
Steel Round Bar Bending Machine
-
Voltage::
-
380v,50hz,3 phase
-
Bending diameter:
-
6-50mm
-
Weight::
-
342kg
-
Packing size:
-
1.04*0.87*0.965m
Packaging details:wooden case for steel bar bending machine
Shipping details:

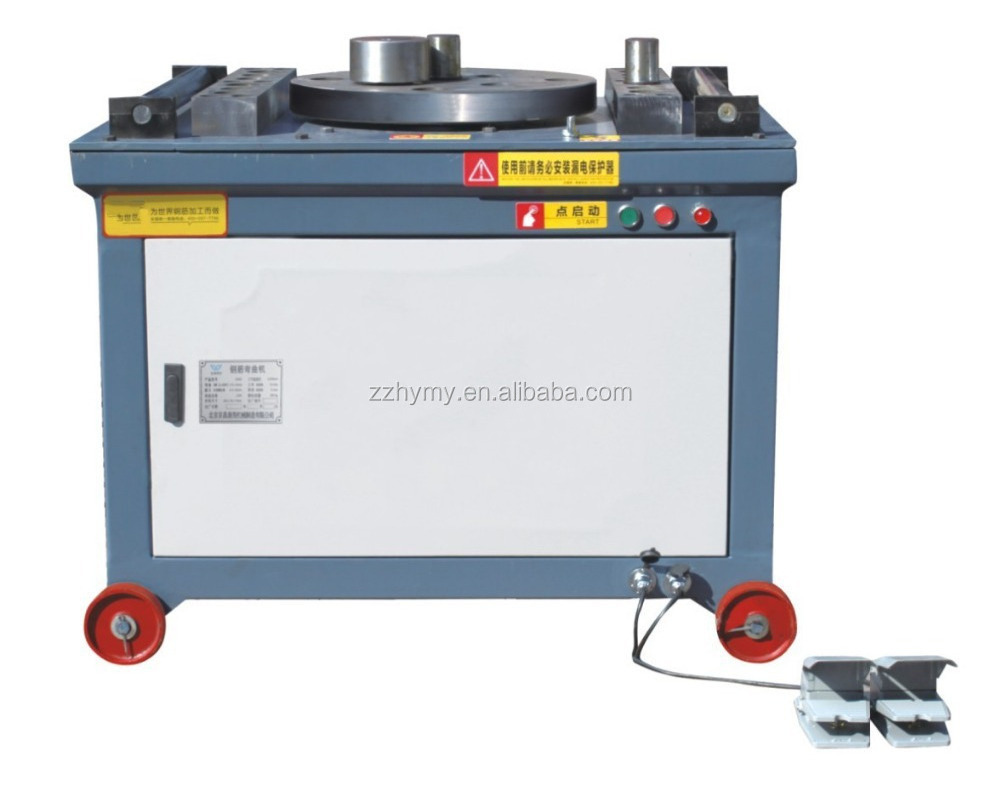

Steel Round Bar Bending Machine
Specification of Steel Round Bar Bending Machine
|
No. |
Item |
Model |
||||
|
GW50 |
GW42D |
GW40 |
RB-32 |
CYW50A |
||
|
1 |
Bending dia (round bar) |
Φ6-50mm |
Φ6-40mm |
Φ6-40mm |
Φ6-32mm |
Φ6-50mm |
|
2 |
Bending dia (corrugated bar) |
Φ6-42mm |
Φ6-32mm |
Φ6-32mm |
Φ6-28mm |
Φ6-42mm |
|
3 |
operation disc size |
Φ400mm × 45mm |
Φ360mm × 38mm |
Φ350mm × 38mm |
* |
Φ400mm × 45mm |
|
4 |
spindle speed |
2.685rpm |
14rpm |
14r/min |
5rpm |
7rpm |
|
5 |
transmission |
worm and wheel |
gear |
gear |
mechanical |
mechanical |
|
6 |
power supply |
electricity |
electricity |
electricity |
electricity |
diesel |
|
7 |
control mode |
automatic / manual |
automatic |
manual |
automatic |
automatic / manual |
| 8 |
Power(kw) |
4 |
3 |
3 |
3 |
7.7 |
|
9 |
whole weight(kg) |
490 |
374 |
342 |
109 |
1100 |
|
10 |
packing size(mm) |
1060×920×980 |
1045×870×965 |
1040×870×965 |
650×650×730 |
2100×9300×1130 |
Welcome to contact me by cell/what's app 0086 15617575581
The main feature of Steel Round Bar Bending Machine
1) The special extra-thick steel plates,high steel disc of iron,high power medium-speed international standard motor, the quality is more stable.
2) It is fully enclosed gear-box,low noise,high and low speed,which uses easily.
3) It adds eccentric bushing,ultra high hardness accessories and adjustable baffles,so it will have longer service life.
The internal structure of Steel Round Bar Bending Machine
