Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANGRUI
-
Model Number:
-
KR-B00
-
Sample:
-
Sample Availble
-
Material:
-
Galvanized Steel
-
Product name:
-
Ceiling Decor Panels
-
Usage:
-
Celling
-
Surface:
-
Spray Painted
-
Color:
-
White Color Powder Coating
-
Size:
-
150*200mm
-
Thickness:
-
1mm
-
Shape:
-
Sqaure
-
Style:
-
Morden
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
NONE
-
Project Solution Capability:
-
Others
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANGRUI
-
Model Number:
-
KR-B00
-
Sample:
-
Sample Availble
-
Material:
-
Galvanized Steel
-
Product name:
-
Ceiling Decor Panels
-
Usage:
-
Celling
-
Surface:
-
Spray Painted
-
Color:
-
White Color Powder Coating
-
Size:
-
150*200mm
-
Thickness:
-
1mm
-
Shape:
-
Sqaure
-
Style:
-
Morden
Product Description
GENERAL DESCRIPTION

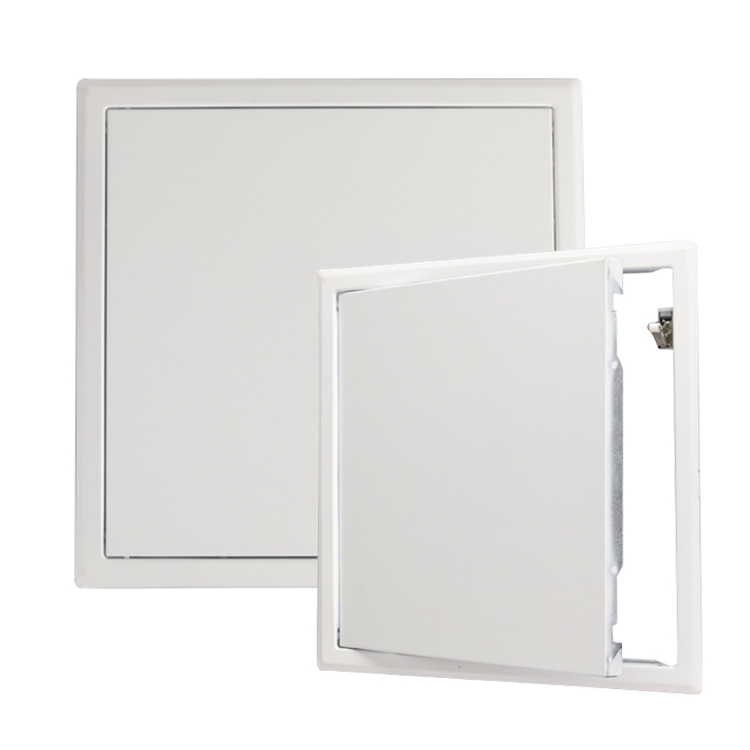

The Ceiling Access Panel shall be fabricated from 1.0 mm, galvanized steel with a prime coat finish suitable for painting. The panel shall have rounded safety corners and a concealed piano hinge. Frame shall be one piece construction with no mitres or welds on the face. And this ceiling access panel are ideally for new installations or for remodeing, in masonry, tile, wood or other wall and ceiling surfaces.
MATERIAL SPECIFICATION
MATERIAL: Galvanized Steel, Available stainless steel
FINISH: Powered Coating, RAL 9016
LATCHING SYSTEM: Snap Lock
APPROVAL AND TESTING REPORT
N/A
|
Size
|
A(mm)
|
B(mm)
|
C(mm)
|
D(mm)
|
E(mm)
|
T(mm)
|
|
200X200
|
235
|
235
|
200
|
200
|
25
|
1.0
|
|
300X300
|
335
|
335
|
300
|
300
|
25
|
1.0
|
|
400X400
|
435
|
435
|
400
|
400
|
25
|
1.0
|
|
500X500
|
535
|
535
|
500
|
500
|
25
|
1.0
|
|
600X600
|
535
|
635
|
600
|
600
|
25
|
1.0
|
|
item
|
value
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Project Solution Capability
|
Others
|
|
Application
|
Hotel
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Zhejiang,China
|
|
Material
|
Glavanized Steel, Available stainless steel
|
|
Brand Name
|
KANGRUI
|
|
Function
|
Moisture-Proof, Mould-Proof, Smoke-Proof, Sound-Absorbing, Soundproof, Waterproof
|
|
Ceiling Tile Shape
|
Square
|
|
Ceiling Tile Type
|
Metal Ceilings
|
|
Finish
|
Powered Coating, RAL 9016
|
|
Latching Lock
|
Snap Lock
|
|
Sample
|
Sample Availble
|
