Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XBH
-
Voltage:
-
110V/220V
-
Dimensions(L*W*H):
-
162*84*68CM
-
Weight:
-
155 KG
-

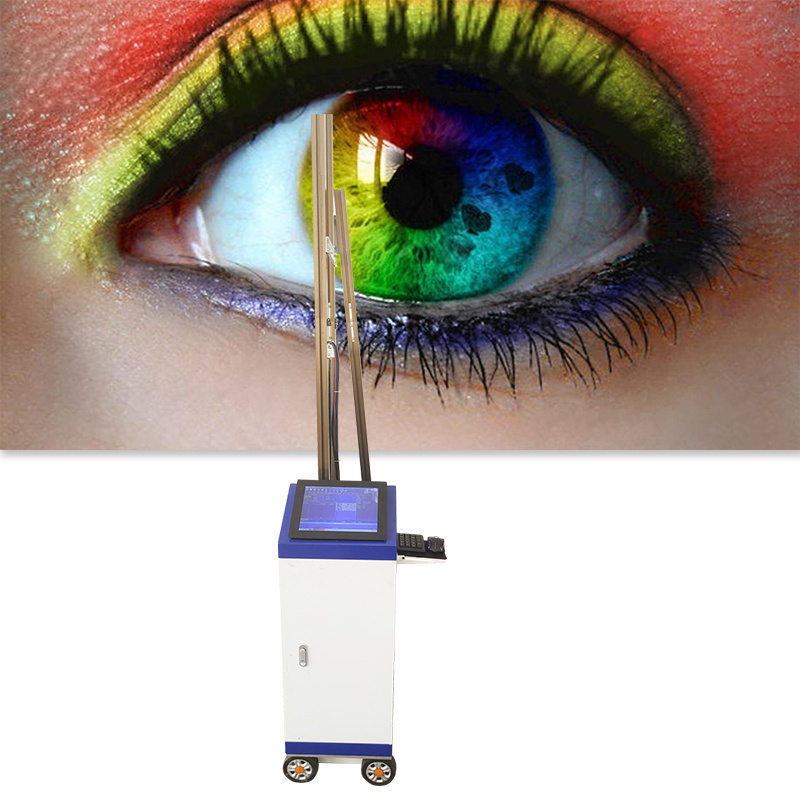

Product name:
-
3D Wall Printer
-
Print head:
-
dx7/dx8/xp600
-
Ink Color:
-
CMYKW
-
Ink:
-
uv ink
-
Construction noise:
-
Standby<20dBA, Drawing<60dBA
-
Image Format:
-
PSD,CDR,JPG,JPEG,PNG etc.
-
Print speed:
-
9-24sqm/h
-
Printing material:
-
Glass, tile, board,Acrylic,PVC and metal plates, e
-
Language:
-
Chinese/English(Other languages can be customized)
-
Operating platform:
-
Windows XP/7/8/9/10
Quick Details
-
Print Dimension:
-
0.35~1.9m x any width (default), other heights can
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XBH
-
Voltage:
-
110V/220V
-
Dimensions(L*W*H):
-
162*84*68CM
-
Weight:
-
155 KG
-
Product name:
-
3D Wall Printer
-
Print head:
-
dx7/dx8/xp600
-
Ink Color:
-
CMYKW
-
Ink:
-
uv ink
-
Construction noise:
-
Standby<20dBA, Drawing<60dBA
-
Image Format:
-
PSD,CDR,JPG,JPEG,PNG etc.
-
Print speed:
-
9-24sqm/h
-
Printing material:
-
Glass, tile, board,Acrylic,PVC and metal plates, e
-
Language:
-
Chinese/English(Other languages can be customized)
-
Operating platform:
-
Windows XP/7/8/9/10
Specifications
|
product name
|
wall printing machine
|
|
|
|||
|
warranty
|
1 year
|
|
|
|||
|
Control method
|
Wired/wireless printing
|
|
|
|||
|
Printing software
|
Genuine industrial machine printing software
|
|
|
|||
|
ink type
|
uv ink
|
|
|
|||
|
ink color |
1pc DX8 head
|
|
2pcs DX8 head
|
|||
|
|
CMYK
|
|
CMYK+W
|
|||
|
Transportation and carrying
|
Portable
|
|
|
|||
|
Power
|
No load 20W, maximum 250W
|
|
|
|||
|
Surface tracking
|
Hyperboloid banner sensor, up and down bidirectional sensing
|
|
|
|||
|
Ink supply system
|
Single-color single-supply for negative pressure system,4-color ink bin integrated
|
|
|
|||
|
Printing size
|
2.5m x any width (default), other heights can be customized
|
|
|
|||
|
Construction noise
|
Standby＜20dBA,Drawing＜60dBA
|
|
|
|||
|
Support pictures
|
Photos taken by mobile phone, camera and Internet
|
|
|
|||
|
Voltage
|
220VAC/380VAC
|
|
|
|||
|
Applicable medium |
Wall surface:Putty wall surface,Latex paint wall,Big white wall,Imitation porcelain wall,Rice paper, Wall clothing,Painted glaze,Shell powder,Color grain paint and other walls
Other media:Glass, tile, board,Acrylic,PVC and metal plates, etc.
Direct printing, print and dry without waiting
|
|
|
|||
|
Image Format
|
PSD,CDR,JPG,JPEG,PNG,BMP,TIFF,EPS,AI and PDF,etc.
|
|
|
|||
|
Color drawing technology
|
Micro Piezo Inkjet Technology,Variable ink drop,High fault tolerance feathering technology,
Automatic memory recovery technology for construction interruption |
|
|
|||
|
Operating environment
|
-20℃-50℃(-4°F-122°F),10%-70%,Relative humidity, non-condensing state
|
|
|
|||
|
Print resolution
|
360×720dpi/720×1080dpi/720×1440dpi/1080×1440dpi/1440×2880dpi
|
|
|
|||
|
Operating environment
|
-20℃-50℃(-4°F-122°F),10%-70%，Relative humidity, non-condensing state
|
|
|
|||
|
Storage environment
|
-21℃-50℃(-22°F-140°F),10%-70%，Relative humidity, non-condensing state
|
|
|
|||
|
Operating platform
|
Windows XP/7/8/9/10
|
|
|
|||
|
Certification qualification
|
GPC,International test qualified(GB18582-2001、GBT9756-2001)、CE
|
|
|
|||
|
Print mode
|
PASS
|
㎡/h
|
|
|||
|
Fast mode
|
A
|
24
|
|
|||
|
Production mode
|
B
|
18
|
|
|||
|
Quality mode
|
C
|
12
|
|
|||
|
HD mode
|
D
|
9
|
|
|||
|
Package size
|
162*84*68cm
|
|
|
|||
|
Packing weight
|
185KG
|
|
|
|||
|
The key components
|
|
|
|
|||
|
Printhead
|
DX8/DX7/DX11
1pc/2pcs
|
Motor
|
3 imported intelligent servo motors+decelerator
|
|||
|
Main board
|
8-core high-speed CPU, 8GB Memory, high-speed USB I/O
|
Wall detection
|
2 Nano distance detectors
|
|||
|
UPS Power Supply
|
Ultra strong uninterruptible power supply,power failure endurance 5hous
|
Power-off memory
|
Power-off memory function
|
|||
|
Ink supply technology
|
Negative pressure system ink supply,No ink extraction required
|
Laser positioning
|
Precise infrared laser positioning system
|
|||
|
Y-axis Guide
|
High strength precision rail
4 sections 5m
|
X-axis Guide
|
Imported linear drive module
|
|||
|
Machine language
|
Chinese/English
(Other languages can be customized)
|
Gift Gallery
|
Gift 5T Gallery
|
|||
FAQ
1.How many basic colors does the printer uses?
Four colors, CMYK: cyan, magenta, yellow and black,White or Varnish?
2.Do you needa flat surface for the wall printer to move along the wall ?
No need for very flat walls, our wall printers print high quality
pictures on uneven surfaces.
3.The process to set the printer up on site – how long does it take?
It takes only 10 minutes to assemble our?wall printer.
4.Does the machine move on the running track or does the machine move?
It is the machine that moves on the track, not the track is moving.
5.What type of ink does the printer use and where can I buy from?
The ink of the machine is custom-made, because after our adjustment, this ink is very suitable for the printing process of our machine, and the printed picture is very good. You can contact us to purchase print ink.
6.What type of files can I print with?
Support JPG, BMP, TIFF, PDF, AI, PSD, CDR, etc.
7.Durability of the ink – is it for interior or exterior applications?
The room can be kept for 10 years without fading, and the outdoor can be kept for 5 years without fading.
8.What is the print height?
The standard picture print height is 180-240cm, and the printable picture after custom vertical track is up to 350cm.
9.What materials can I print on?
Putty wall, latex paint wall, brick wall, diatom mud wall, shell powder, paper, wood. UV-wall printer can also print on?non-absorbent surfaces such as: Glass, tile, metal.
10.Any defects during the warranty period at your expense?
Non-human damage during the one-year warranty period.
11.Is it possible to enlarge a print at height? So you print out a part of the picture, then set it down again and continue. Will the photo appear to be in two parts?
Of course . You can print the stitches left and right, or you can stitch them up and down. The image printed with the feathering effect does not appear to be two parts. You can watch the video we took.
