1. Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan.
2. A precious inspection tracer device is installed,it will stop working automatically when the unqualified product is found.
3. The parameters such as major diameter,angle etc can be modified at any time according to the working status displayed on the
fluorescence screen.
5. It is suitable for producing double torsion spring,straight spring,pagoda-shaped compression spring,rectangle spring,swirl
spring and other different spring and sepcial-shaped spring etc.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
800
-
Power (kW):
-
6.4
-
After-sales Service Provided:
-
Overseas third-party support available
-
No. of axis:
-
Multi-axis
-
Weight(KG):
-
800
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RH
-
Voltage:
-
Three phase380±10%V.AC.50HZ
-
Weight (KG):
-
800
-
Power (kW):
-
6.4
-
After-sales Service Provided:
-
Overseas third-party support available
-
No. of axis:
-
Multi-axis
-
Weight(KG):
-
800
Product Description

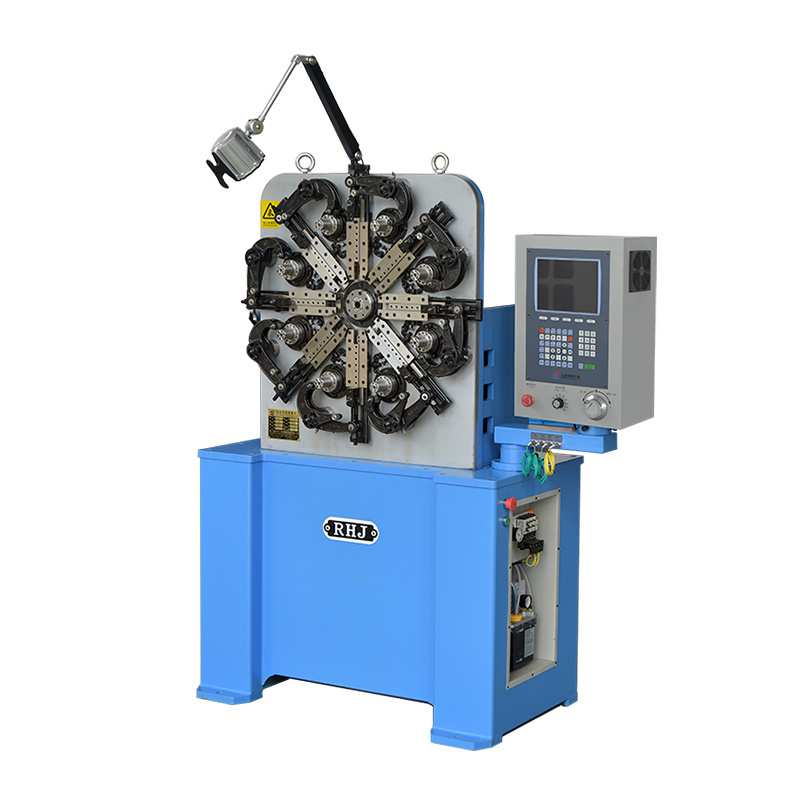

TYPE RH625/RH626/RH635/RH636/645 CNC COILING SPRING MACHINE
Specification
|
Type
|
RH625/RH626
|
|
wire diameter of coiled material(mm)
|
φ0.3~φ2.5
|
|
max.outside diameter of coiled spring(mm)
|
φ50
|
|
instruction value of wire feed(mm)
|
±0.01~±9999.99
|
|
instruction value of cam
|
±0.1°~±359.9°
|
|
savable system
|
99groups
|
|
motor power(kw)
|
X axis 2.7
Y axis 2.7
Z axis 1.0
|
|
totally motor power(kw)
|
6.4
|
|
weight(kg)
|
800
|
|
voltage
|
Three phase380±10%V.AC.50HZ
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
