Quick Details
-
Range of Spindle Speed(r.p.m):
-
20 - 8000
-
Positioning Accuracy (mm):
-
0.015
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIPOW
-
Model Number:
-
XK7124
-
Voltage:
-
220V/380V/415V ,50/60Hz,3Phase
-
Dimension(L*W*H):
-
1900*1400*2100mm
-
Weight (KG):
-
1700
-
Spindle Motor Power(kW):
-
3.7
-
Max. Table Load(kg):
-
200 kg
-
Name:
-
cheap mini CNC bed-type milling machine XK7124 CNC mill price
-
X/Y/Z Axis Travel:
-
400*280*400mm
-
Work Table size:
-
900*240mm
-
Spindle speed:
-
8000rpm
-
Spindle taper:
-
BT40
-
Cutting speed:
-
1-2000mm/min
-
X/Y/Z Rapid Travel:
-
8/8/6 m/min
-
Positioning accuracy:
-
±0.015mm
-
Repeat accuracy:
-
±0.01mm
-
Power (kW):
-
3.7
Quick Details
-
Table Travel (X) (mm):
-
400 mm
-
Table Travel (Y) (mm):
-
280 mm
-
Table Travel (Z) (mm):
-
400 mm
-
Range of Spindle Speed(r.p.m):
-
20 - 8000
-
Positioning Accuracy (mm):
-
0.015
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIPOW
-
Model Number:
-
XK7124
-
Voltage:
-
220V/380V/415V ,50/60Hz,3Phase
-
Dimension(L*W*H):
-
1900*1400*2100mm
-
Weight (KG):
-
1700
-
Spindle Motor Power(kW):
-
3.7
-
Max. Table Load(kg):
-
200 kg
-
Name:
-
cheap mini CNC bed-type milling machine XK7124 CNC mill price
-
X/Y/Z Axis Travel:
-
400*280*400mm
-
Work Table size:
-
900*240mm
-
Spindle speed:
-
8000rpm
-
Spindle taper:
-
BT40
-
Cutting speed:
-
1-2000mm/min
-
X/Y/Z Rapid Travel:
-
8/8/6 m/min
-
Positioning accuracy:
-
±0.015mm
-
Repeat accuracy:
-
±0.01mm
-
Power (kW):
-
3.7
|

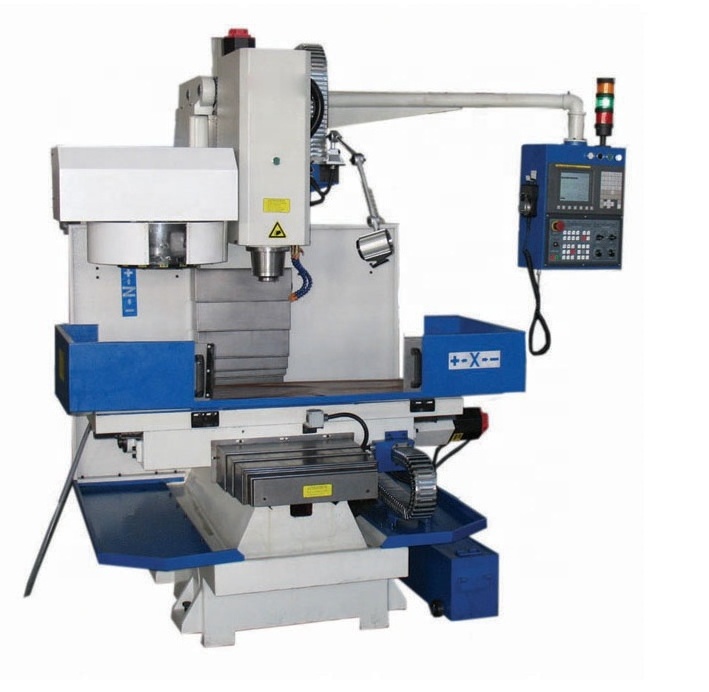

| Cheap mini bed-type CNC mill XK7124 Fresadora CNC price |
|
|
Main Feature 1.High Precision Hard guideway and screw 2.Taiwan-made spindle unit,6000,8000rpm speed available 3.Taiwan OKADA Funnel Type 10T/12T ATC can be choosen 4.Reliable Control System:Fanuc,Siemens,Mitsubishi,GSK. 5.Automatic Central Lubrication System. |
1. TAIWAN High Precision Speed Spindle
1)High Speed, Stable Performace
2)6000/8000 rpm Speed Spindle available
3)BT30,BT40 Spindle Taper freely choosen
2. High Rigidity Hard Guideway and Screw
1)High Rigidity,High Performance
2)High Precision,Long Using Life
3. TAIWAN Funnel Type Tools Magazine
1)OKADA Funnel Type ATC 10T,12T ATC can be choosen
2) Funnel Type Tools Magazine is optional parts
4. Reliable Control System
1)Standard : GSK980, KND System,
2)Optional:Fanuc,Siemens,Mitsubishi and other customized system
5. High Quality Electrical Parts
1)High Quality Electrial Compotents is used
2)Make the Machine performance Better.
|
Size of worktable(length×width) |
900mm×240mm |
|
T slot (width x qty) |
14mm×3 |
|
Max loading weight on worktable |
150Kg |
|
X-Axis travel |
400mm |
|
Y-Axis travel |
240mm |
|
Z-Axis travel |
400mm |
|
Distance between spindle nose and table |
100-450mm |
|
Distance between spindle center and column |
315mm |
|
Spindle taper |
BT40 |
|
Max. spindle speed |
8000r/min |
|
Spindle motor power |
3.7Kw SERVO MOTOR |
|
Rapid feeding speed: X,Y,Z axis |
8/8/6 m/min |
|
X,Y,Z axis Servo motor |
6/6/6 N.m |
|
Feeding Speed |
1-2000mm/min |
|
Positioning accuracy(mm) |
0.015mm |
|
Repeatability accuracy(mm) |
0.01/300mm |
|
Air Pressure |
0.6Kpa |
|
Tool clamping way |
Pneumatic |
|
N.W (include machine stand) |
1800Kg |
