cng home refueling station cng filling stations at home cng compressors

home portable natural gas compressor for general home use

Refuel your cng vehicle at home,the advantages of the home cng compressor:

Simple installation and operation,low service cost,anti-explosive designed of this compressor make it running in safety.Seperate electric controller equiped.It is an ideal unit for filling your vehicle at home,for outdoor and indoor use,three phase electric needed.

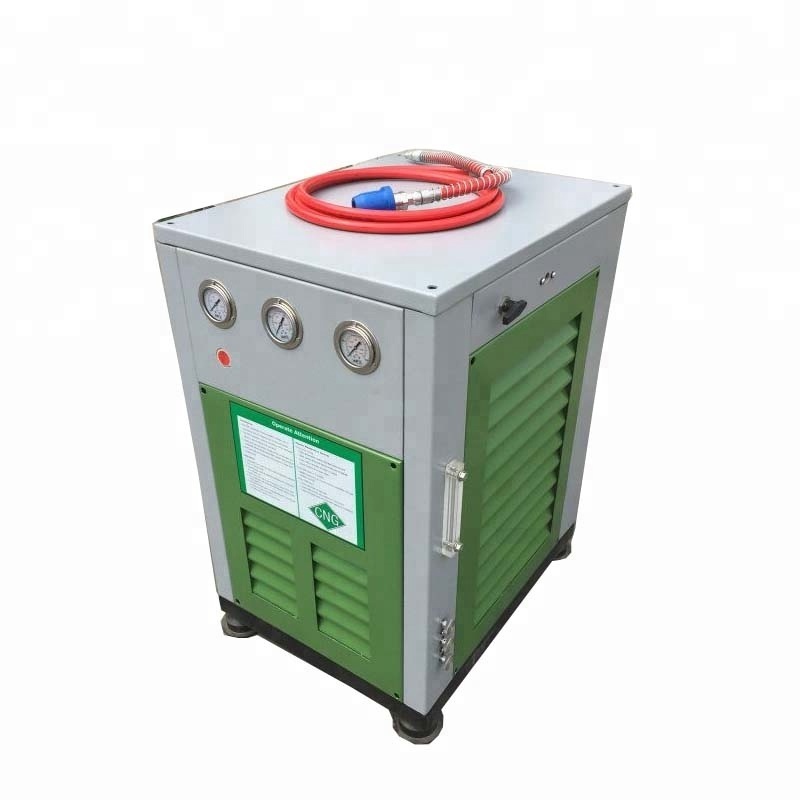

3NM3/H ,2cfm cng home compressor

filling time:                 65minute for 60L tank 200bar/3000psi,70minute for 60L tank 250bar/3600psi working pressure :     220bar/3000psi,250 bar/3600psi
motor power:              electric 4.5kw/6hp,50/60 hz three phase
inlet pressure:            less than 0.3 bar,5 psi
driven:                        belt

lubricate:                    splash
starter:                       on /off button <p >

swithch:                      auto -stop
condensate drain:      manual

filling hose connect:   2
dimension:                 600x900x650mm

weight:                       80kg
noise level:                70 db

we also have 3Nm3/h, 5Nm3/h, 12Nm3/h, 15Nm3/h, 28Nm3/h, 40Nm3/h cng home compressor for you choice.

Packing and shipping

Our certification

Our after-service engineer team

please send us your requests, our engineer team will  specially design the compressor for you.
