Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AIBEIKEN
-
Model Number:
-
IB16AD Touch Switch
-
Product Name:
-
24V Touch Switch
-
Mounting Hole Size:
-
16mm
-
Operation Type:
-
Momentary(Latching /Stepless Dimming /Segmented Dimming)
-
Switch Combination:
-
1NO(Normally Open)
-
Head Type:
-
Concave (or Flat Head )
-
Enclosure Material:
-
Stainless Steel
-
Terminal Type:
-
150mm Long
-
Contact Resistance:
-
50 mΩ max
-
Operating Temperature:
-
-40°C ~+75°C
-
Accessories:
-
Nut, Rubber Waterproof O-ring
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AIBEIKEN
-
Model Number:
-
IB16AD Touch Switch
-
Product Name:
-
24V Touch Switch
-
Mounting Hole Size:
-
16mm
-
Operation Type:
-
Momentary(Latching /Stepless Dimming /Segmented Dimming)
-
Switch Combination:
-
1NO(Normally Open)
-
Head Type:
-
Concave (or Flat Head )
-
Enclosure Material:
-
Stainless Steel
-
Terminal Type:
-
150mm Long
-
Contact Resistance:
-
50 mΩ max
-
Operating Temperature:
-
-40°C ~+75°C
-
Accessories:
-
Nut, Rubber Waterproof O-ring
-
Certification:
-
CE

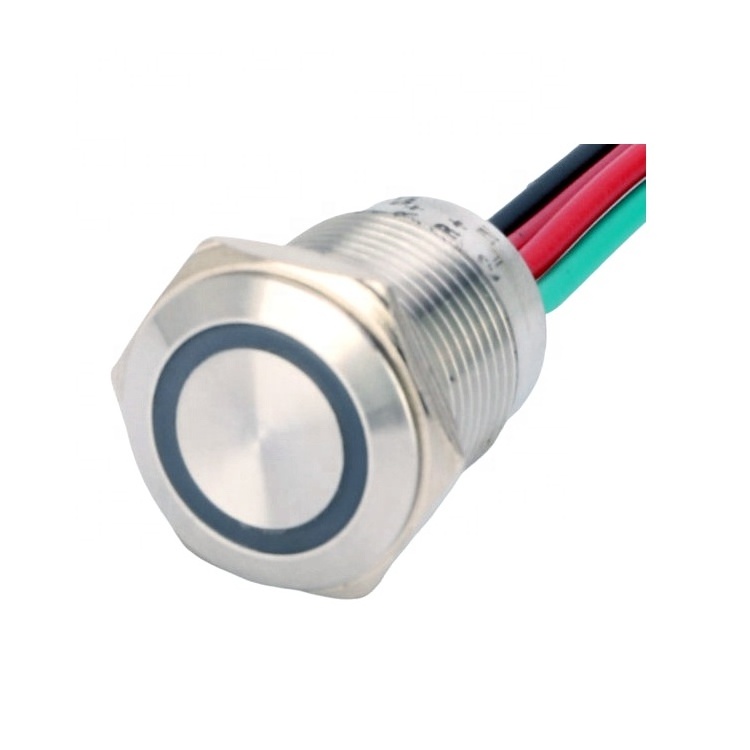

Flat Type Momentary Waterproof IP67 blue led Light 12V Ring Led 24V Dia 16mm Touch Switch With 150mm cable Wire
Touch switch, just touch it!
The wires replace the terminal pins, make installing very easy
Touch Switch, normally be used to control the lights. Don't exceed the rating amps and volts, you can run it on your other projects.
Mounting hole size: 3/4" ( 19mm )
Switch Type: Momentary/Latching/Stepless Dimming/Segmented Dimming
Input Voltage: 12V (or 3V/5V/6V/24V)
Output Current: 2A
LED color: Blue (Red, Green, Yellow, White, Purple, Bi-color available )
Head shape: Concave
Enclosure material: Stainless Steel
Protection level: IP67 IK08
Operating Temperature: -20 ℃ ~ +55 ℃
|
Product Name |
19mm Touch Switch |
|
Model |
IB19PD |
|
Mounting Hole |
19mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat Round (or Concave) |
|
Cable Length |
150mm long |
|
Current |
2A |
|
Led Voltage |
12V (or 3V/5V/6V/24V) |
|
Led Color |
Blue (Red, Green, Yellow, White, Purple available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Stainless Steel |
|
Delivery Days |
1-7 days |
|
Contact Resistance |
50 mΩ max |
|
Waterproof Degree |
IP67 |
|
Operating Temperature |
-20°C ~+55°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
Customized Order Confirm |
1. What Led Color? 2. What Led Voltage? |
|
What You Get |
1X Touch Switch: 19mm, Momentary, 12V Blue LED, Stainless Steel |
Note: We have Momentary/Latching/Stepless Dimming/Segmented Dimming Function for this switch, If you need Customized LED or function, please inform us by mail:
1. What Led Color? 2. What Led Voltage? 3. What function?
