Quick Details
-
Warranty:
-
3 Years
-
Type:
-
LED Tail Light, TAIL LIGHT
-
Product name:
-
4 inch Round LED STT Light 4" round led trailer tail lights
-
Car Make:
-
TRUCK TRAILER
-
Lamp Type:
-
SMD 3528
-
MOQ:
-
500 PCS
-
Certification:
-
SAE DOT
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOJA
-
Model Number:
-
104112A/C/R, 104112A, 104112R
-
Warranty:
-
3 Years
-
Type:
-
LED Tail Light, TAIL LIGHT
-
Product name:
-
4 inch Round LED STT Light 4" round led trailer tail lights
-
Car Make:
-
TRUCK TRAILER
-
Lamp Type:
-
SMD 3528
-
MOQ:
-
500 PCS
-
Certification:
-
SAE DOT

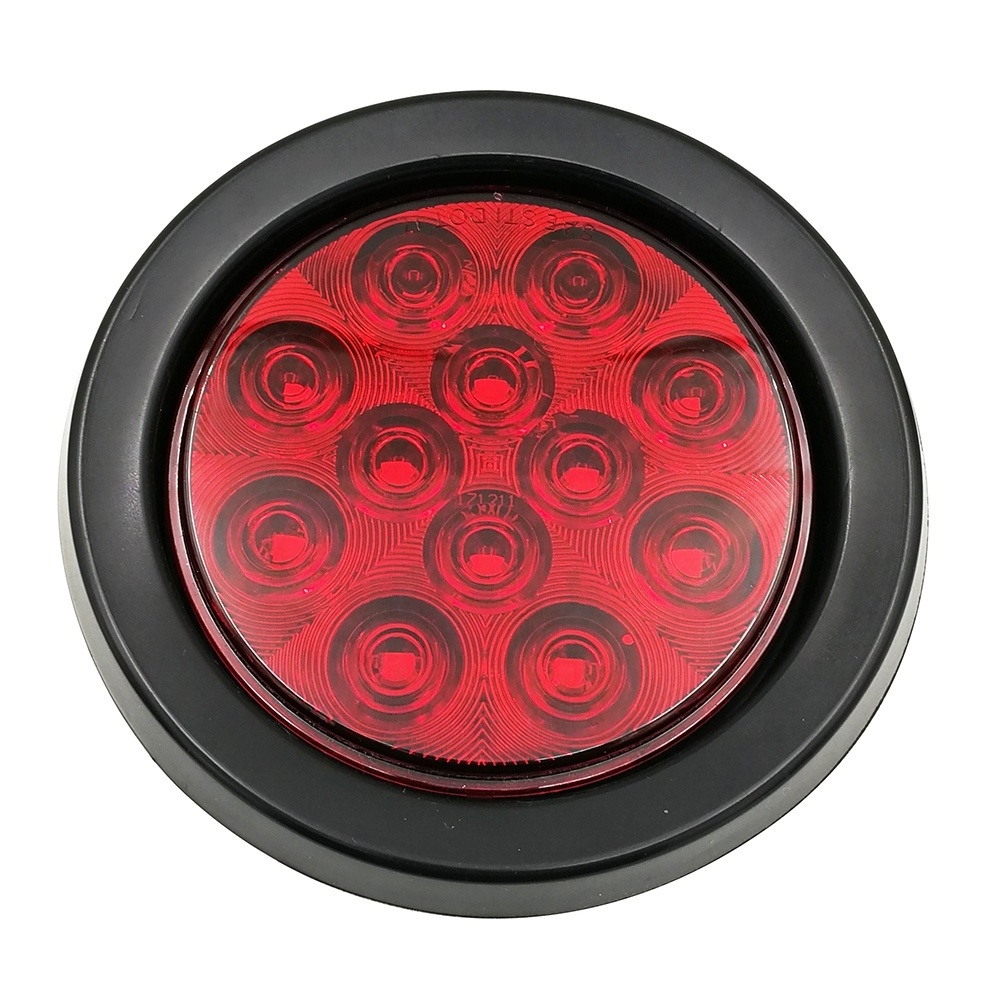

4 inch Round LED STT Light 4" round led trailer tail lights STT grommet mount
FEATURES:
- Choice of 7 LEDs, 12 LEDs or 32 LEDs versions; super bright LEDs of SMD type or 5mm
- Stop, Turn, Tail functions combined.
- Engineered lens optics
- PC lens and housing welded together to ensure a permanent and water proof seal.
- LED circuit board coated with conformal coating for excellent moisture and environmental protection
- Right angle 3-prong plug assembly, PVC grommet mounting; also available in flange mount version by special order
- Super long life span up to 100,000 hours
-
Meets DOT FMVSS 108/SAE requirements except Amber versions of 7 LEDs (104207A)
Rated for 12V, tested to 13.8V - Also available in multi-voltage 10~30V operating range, or 24V (special order only – minimum may apply)
SPECIFICATION:
|
Part No. |
Description |
Input Voltage |
Nos. of LEDs |
LED Type |
Lighting Color |
Current Draw (mA) at 13.8V |
|
104112R |
Grommet Kit |
12 V |
12 |
SMD |
Red |
20/200 mA |
|
104112A |
Grommet Kit |
12 V |
12 |
SMD |
Amber |
200 mA |
|
104112C |
Grommet Kit |
12 V |
12 |
SMD |
White |
200 mA |
|
104232R |
Grommet Kit |
12 V |
32 |
5 mm |
Red |
20/145 mA |
|
104232A |
Grommet Kit |
12 V |
32 |
5 mm |
Amber |
145 mA |
|
104232C |
Grommet Kit |
12 V |
32 |
5 mm |
White |
145 mA |
|
104112RM |
Grommet Kit |
12~24 V |
12 |
SMD |
Red |
15/150 mA |
|
104112AM |
Grommet Kit |
12~24 V |
12 |
SMD |
Amber |
150 mA |
|
104112CM |
Grommet Kit |
12~24 V |
12 |
SMD |
White |
150 mA |
|
104232RM |
Grommet Kit |
12~24 V |
32 |
5 mm |
Red |
20/145 mA |
|
104232AM |
Grommet Kit |
12~24 V |
32 |
5 mm |
Amber |
145 mA |
|
104232CM |
Grommet Kit |
12~24 V |
32 |
5 mm |
White |
145 mA |
|
104200G |
Grommet only for 4” Round Light |
|||||
|
906403P |
Right Angle 3 Prong Plug for 4” Round Light |
|||||
DIMENSION:
