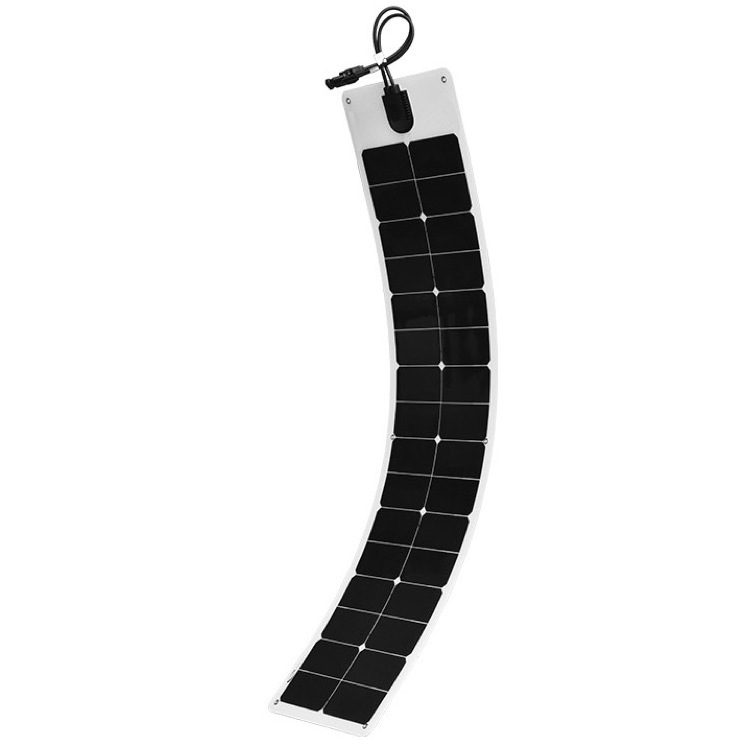

Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel
Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel

Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel

FOB Reference Price: Get Latest Price
≥2 Pieces
US $30
≥500 Pieces
US $26
≥5000 Pieces
US $24
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Panel Dimensions:
1140x286mm
Panel Efficiency:
50W
Brand:
OEM
Power:
50W
Lamination Material:
ETFE
Backing Color:
White/Black
Solar cell:
sunpower flexible solar panel
Size:
1140*286*3mm
Panel Efficiency::
22.60%
Maximum System Voltage:
1000VDC
Type:
Flexible

Quick Details

Cell size:
156.75mmx156.75mm
Brand Name:
OEM
Model Number:
Flexible solar panel 50W
Place of Origin:
Guangdong, China
Panel Dimensions:
1140x286mm
Panel Efficiency:
50W
Brand:
OEM
Power:
50W
Lamination Material:
ETFE
Backing Color:
White/Black
Solar cell:
sunpower flexible solar panel
Size:
1140*286*3mm
Panel Efficiency::
22.60%
Maximum System Voltage:
1000VDC
Type:
Flexible

Custom size sunpower solar panel portable 12V 18V Sunpower 50W ETFE thin film Flexible solar panel

Product Description

Miolentek flexible solar panel is perfect for boat or other applications .With proper installation it is suitable to run over it. Equipped with 0.9m cable and MC4 connectors .Its maximum bending radius of 30° and a thickness of only 3~4mm.Assembly is easy to realize itself with the kit available in our shop or through the 4 connection holes in the corners of the panel .All our flexible solar panels are made up of Class A high efficiency solar cells.

Product name
Sunpower 50 W ETFE thin film Flexible solar panel
Max -Power:
50W
Solar cells:
Sunpower
Min power tolerance:
±3%
Voltage at Pmax(Vmp):
18.8V
Current at Pmax(Imp):
2.9A
Open circuit voltage(Voc):
23.9V
Short circuit current(Isc):
3.08A
Max System Voltage(VDC):
1000VDC
cell Efficiency:
22%
Temperature Coefficient of Pmax:
-0.32%/℃
Temperature Coefficient of Voc:
-1.8mv/℃
Temperature Coefficient of ISC:
-0.06%/℃
Nominal Operating Cell Temperature:
45±5℃
Data under standard testing conditions(STC):1000W/M²; 1.5AM
Dimension:
1140*286*3mm
No of cells
2*8
Weight: (kg)
1.6KG
Surface
TPT
Back
TPT
Junction Box(protection degree):
IP67/MC4
Operating Temperature:
-10℃~60℃
Warranty:For 1 year and service life of 10 years.
