Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16NZ
-
Diameter:
-
16mm
-
Switch Combination:
-
1NO1NC
-
Operation type:
-
Latching
-
Emitting Type:
-
Ring LED
-
Lamp color:
-
Red Green Yellow Blue White
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/20A
-
Shell Metal:
-
Chromium plated brass/Aluminum oxide/Stainless Steel/Stainless Steel/
-
Product name:
-

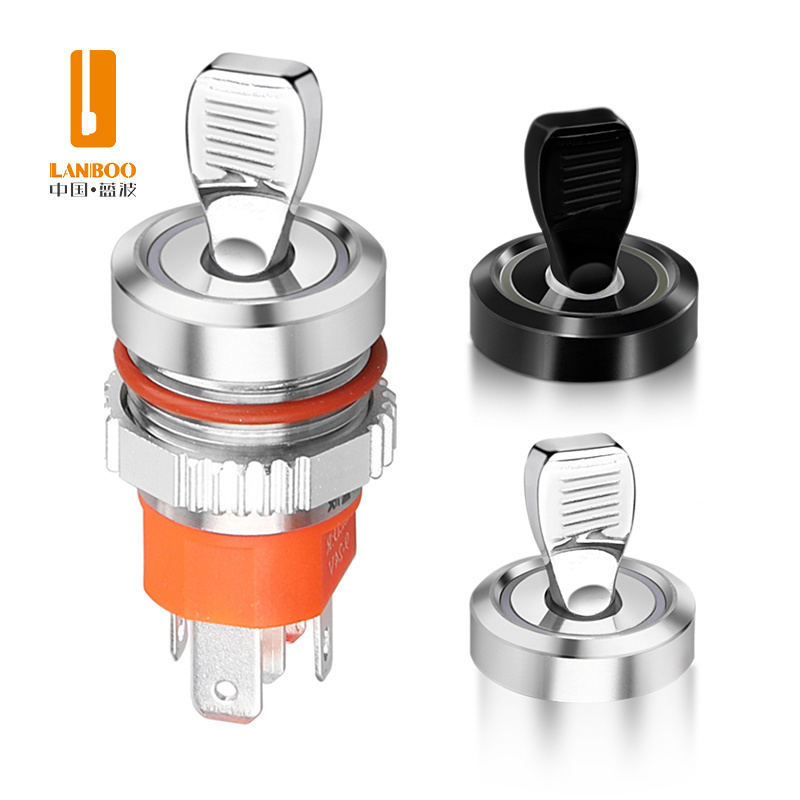

16mm 16A high current IP65 waterproof metal button switch
-
Certification:
-
CCC,CE
Quick Details
-
Protection Level:
-
IP65/IK10
-
Max. Current:
-
Ith:20A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB16NZ
-
Diameter:
-
16mm
-
Switch Combination:
-
1NO1NC
-
Operation type:
-
Latching
-
Emitting Type:
-
Ring LED
-
Lamp color:
-
Red Green Yellow Blue White
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK10
-
Rated Voltage/Current:
-
AC250V/20A
-
Shell Metal:
-
Chromium plated brass/Aluminum oxide/Stainless Steel/Stainless Steel/
-
Product name:
-
16mm 16A high current IP65 waterproof metal button switch
-
Certification:
-
CCC,CE
| Model Description | |
| Model NO. | LB16NZ |
| Mounting diameter | 16mm |
| Head shape | Plat Head/High Head |
| Switch Combination | 1NO1NC |
| Operation type | Latching |
| Illuminating type | Ring LED |
|
Illuminating color |
red/green/blue/yellow/white |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Chrome plated brass/ Aluminum oxide/ Stainless Steel / Titanium plated stainless steel |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Fast moving single contact | Toggle Angle | On 12 ° |
| Contact Resistance | ≤50mΩ | Actuating Force | about 6.3 ± 0. 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤5mm. |
| Dielectric Strength | 1000VAC min | Nut torque | 0.85-1.2N.m |
| Ambient Temperature | -40℃~+80℃ |
Outshell
Handle |
304Stainless Steel/Chrome plated brass/ Aluminum oxide
PA66+GF20/ bright chrome plating (resistance plating),PA66+GF20/ black matte spray paint |
| Protection Levels | IK10 | Diffuser | PC,V2 |
| Electrical Life |
Resistive load
|
Nut
Base Seat/ Bottom Seat |
6063 Pickling (RoHS)
PA66 |
| Mechanical Life |
Latching: 500,000 times
|
Pins |
H65 Silver Plated (RoHS) |
| Waterproof | IP65( custom ) | Contact | AgSnO2(RoHS) |
| Switch Rated Load | |||||
|
Project |
Parameter | ||||
| Reated Insulation Voltage | AC250V | ||||
| Fusing Current | 20A | ||||
| Rated Voltage | DC12V | DC24V | AC110V | AC220V | |
| Rated Current | Nonreactive Load | 15A | 15A | 15 A | 15 A |
| Inductive Load | 4A | 4A | 4A | 4A | |
| Led Lamp Parameters | |
| Project | Parameter |
| Led type | High Brightness LED lamp,cool |
| Luminous color | Red,Green,Blue,Yellow,White |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 50,000hours |
