Quick Details
-
Max. Resolution:
-
203 dpi
-
Brand Name:
-
masung
-
Model Number:
-
MS-D347-TL
-
Place of Origin:
-
Guangdong, China
-
mechanism:
-
CAPD347
-
Printing method:
-
Thermal dot line printing
-
Dots/line:
-
576 dots/line
-
Dot pitch:
-
8 dot/mm
-
Paper thickness:
-
54~78 um
-
power supply:
-
DC 24V/2.5A
-
Command set:
-
ESC/POS
-
Firmware location:
-
512KB Flash memory
-
Buffer:
-
32 KB
-
Paper feed direction:
-
180° horizontal
Quick Details
-
Max Paper Size:
-
80 mm
-
Black Print Speed:
-
200 mm/s
-
Color Print Speed:
-
null
-
Max. Resolution:
-
203 dpi
-
Brand Name:
-
masung
-
Model Number:
-
MS-D347-TL
-
Place of Origin:
-
Guangdong, China
-
mechanism:
-
CAPD347
-
Printing method:
-
Thermal dot line printing
-
Dots/line:
-
576 dots/line
-
Dot pitch:
-
8 dot/mm
-
Paper thickness:
-
54~78 um
-
power supply:
-
DC 24V/2.5A
-
Command set:
-
ESC/POS
-
Firmware location:
-
512KB Flash memory
-
Buffer:
-
32 KB
-
Paper feed direction:
-
180° horizontal
Features:
Brand name printer mechanism High printing speed Auto cutting (full/partial by Adjustable) Interfaces diversification Multiple detection sensors Paper jam prevention Support Windows/Linux/Android OS
Competitive Advantage:
OEM offer
Brand-name printer parts
Android system support
Customization offer
Prompt delivery
Small order accepted
Sample is available
ROHS &CE certificatedApplications:
Payment kiosk; information machine; parking system; queue management kiosk; ATM; gas station kiosk; ticket vendor, multimedia kiosk; self-service terminal and more

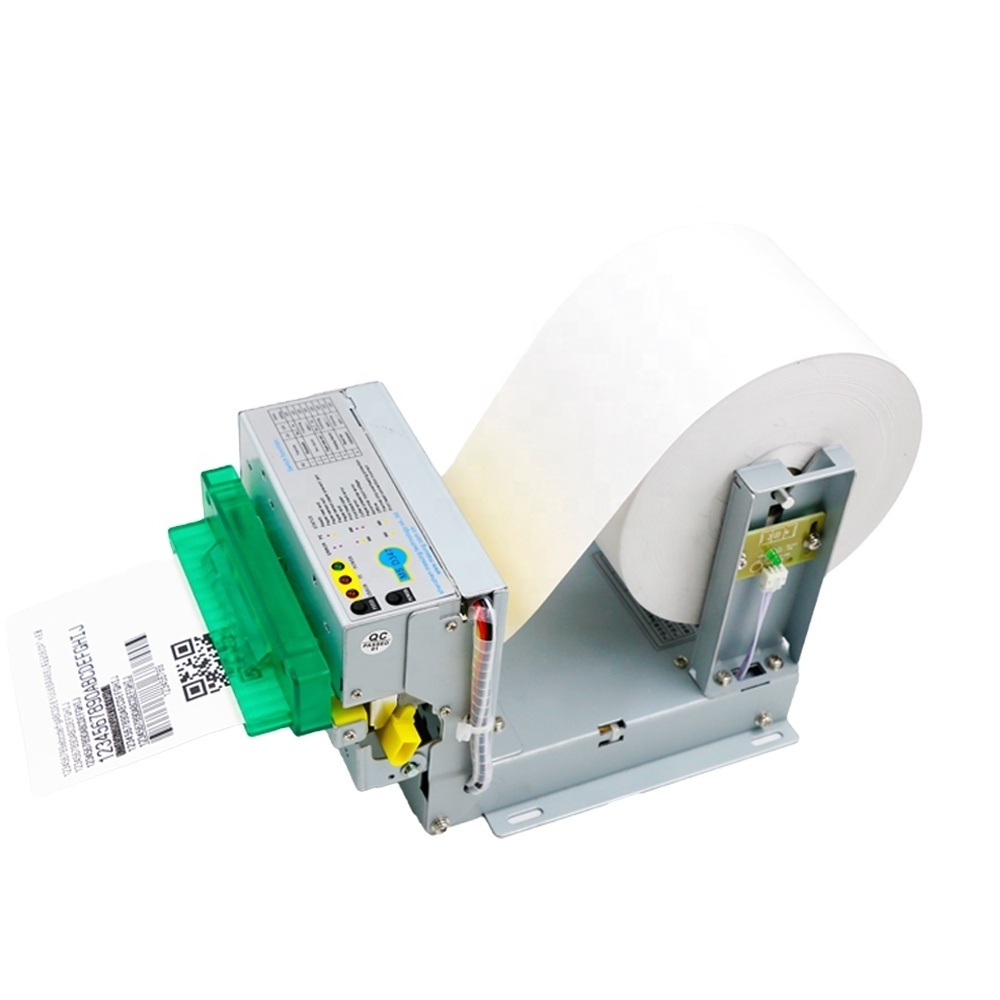

MS-D347-TL
|
Type
|
80mm thermal kiosk printer
|
|
|
|
mechanism：
|
CAPD347
|
|
|
|
Printing method
|
Thermal dot line printing
|
|
|
|
Dots/line
|
576 dots/line
|
|
|
|
Dot pitch
|
8 dot/mm
|
|
|
|
Paper width
|
80 mm
|
|
|
|
Printing width
|
72 mm
|
|
|
|
Paper thickness
|
54~78 um
|
|
|
|
Printing speed
|
200 mm/s
|
|
|
|
Paper feed direction
|
180° horizontal
|
|
|
|
Sensors
|
Head temperature
|
Thermistor
|
|
|
|
Paper press shaft
|
Mechanical switch
|
|
|
|
Paper end
|
Photo interrupter
|
|
|
Font size
|
ASCII:9*17;12*24;
Chinese: 24*24 |
|
|
|
|
|
|
|
|
Paper loading
|
Easy loading
|
|
|
|
Power supply
|
Logic circuit
|
4.75~5.25 V
|
|
|
|
Motor
|
21.6~26.4 V
|
|
|
Dimension (L*W*H)
|
186.9*121.5*112.2 mm
|
|
|
|
Weight
|
Approx 1.92 kg
|
|
|
|
Reliability
|
Circuit: over 1,000,000,000 pulses
Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines |
|
|
|
Ambient environment
|
Work temperature
|
-10 ℃~50℃
|
|
|
|
Work humidity
|
20~85% RH
|
|
|
|
Storage temperature
|
-25℃~70℃
|
|
|
|
Storage temperature
|
10~90% RH
|
|
|
Interface
|
RS-232 /USB/Parallel
|
|
|
|
power supply
|
DC 9~24V/2.5A
|
|
|
|
Command set
|
ESC/POS
|
|
|
|
Barcode
|
supported
|
|
|
|
Firmware location
|
512KB Flash memory
|
|
|
|
Buffer
|
32 KB
|
|
|
|
SRAM
|
64KB (extra)
|
|
|
|
Driver
|
Parallel/USB driver
|
|
|
|
System
|
Windows/Linux/Android OS
|
|
|
please let us know the quantity you want.
7. About Payment :
Terms For mass order, you can pay us by using T/T, LC, or others. About samples order, T/T, Paypal alibabare acceptable.
