Quick Details
-
Panel Size:
-
640*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
A6, A8, A10
-
Product Name:
-

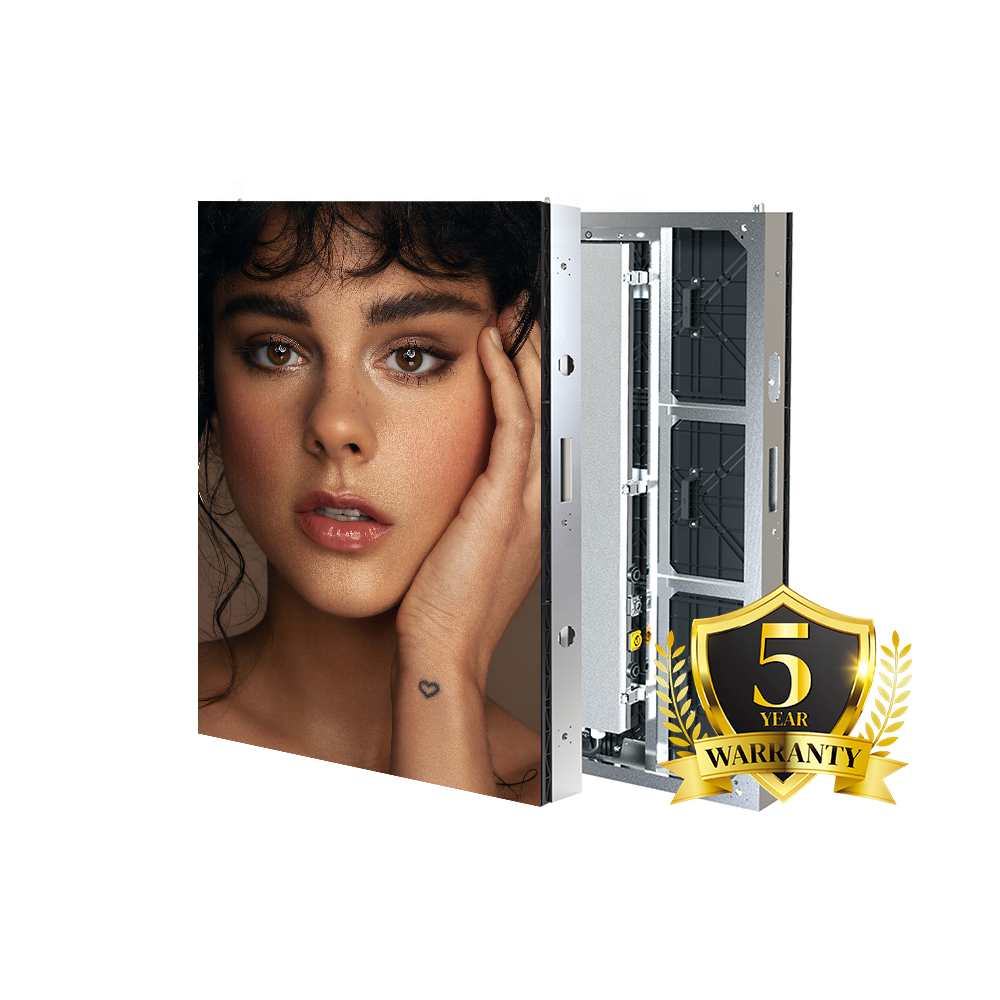

Outdoor Digital Led Signage Custom Dynamic Screen Display
-
Brightness:
-
5200nits
-
LED Chips:
-
Nationstar SMD2727/3535/
-
Cabinet Size:
-
640*960mm
-
Cabinet Material:
-
Alumium
-
Module Size:
-
320*320mm
-
IP Protetion Level:
-
IP65
-
Maintainence Type:
-
Front and Rear Service
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Warranty:
-
5 years
-
Pixel Pitch:
-
6.67mm, 8mm, 10mm
Quick Details
-
Application:
-
Outdoor
-
Brand Name:
-
Canbest
-
Color:
-
Full Color
-
Panel Size:
-
640*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
A6, A8, A10
-
Product Name:
-
Outdoor Digital Led Signage Custom Dynamic Screen Display
-
Brightness:
-
5200nits
-
LED Chips:
-
Nationstar SMD2727/3535/
-
Cabinet Size:
-
640*960mm
-
Cabinet Material:
-
Alumium
-
Module Size:
-
320*320mm
-
IP Protetion Level:
-
IP65
-
Maintainence Type:
-
Front and Rear Service
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Warranty:
-
5 years
-
Pixel Pitch:
-
6.67mm, 8mm, 10mm
Discover Your Right Application , Make Your Business Possible !
Solution Analysis
Application
Products Description
Technical Parameter
|
Value
|
A6
|
A8
|
A10
|
|
Pixel pitch (mm)
|
6.67
|
8
|
10
|
|
Pixel configuration
|
Nationstar
SMD2727
|
Nationstar
SMD3535
|
Nationstar
SMD3535
|
|
Module Size (mm)
|
320*320
|
320*320
|
320*320
|
|
Pixel Matrix Per Panel
|
96*144
|
80*120
|
64*96
|
|
Cabinet Material
|
aluminum
|
aluminum
|
aluminum
|
|
Brightness (nits)
|
6000
|
6000
|
6000
|
|
Viewing Angle (H/V)
|
140 / 110
|
140 / 110
|
140 / 110
|
|
Refresh rate (Hz)
|
≥3840
|
≥3840
|
≥3840
|
|
IP grade ( F / R)
|
IP65
|
IP65
|
IP65
|
|
Power Consumption
(Max / Avg)
|
760/ 310 w/sq.m
|
850/ 380 w/sq.m
|
1000/400 w/sq.m
|
|
Size (L x W x D mm)
|
640*960*87
|
640*960*87
|
640*960*87
|
|
Panel weight (Kgs)
|
15.3
|
15.3
|
15.3
|
|
Lifespan (Hrs)
|
100000
|
100000
|
100000
|
