Quick Details
-
Brand Name:
-
CXZTCL
-
Product name:
-
Hydraulic Control Valve
-
Color:
-
White
-
Operation:
-
Direct-acting
-
Function:
-
Water Level control
-
Material:
-
PA66 nylon
-
Working Pressure:
-
0.02-1.0Mpa
-
Working Temperature:
-
Less than 70 ℃
Quick Details
-
Port Size:
-
1/2" 3/4" 1", 1/2" 3/4" 1"
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
CXH
-
Brand Name:
-
CXZTCL
-
Product name:
-
Hydraulic Control Valve
-
Color:
-
White
-
Operation:
-
Direct-acting
-
Function:
-
Water Level control
-
Material:
-
PA66 nylon
-
Working Pressure:
-
0.02-1.0Mpa
-
Working Temperature:
-
Less than 70 ℃
Products Description

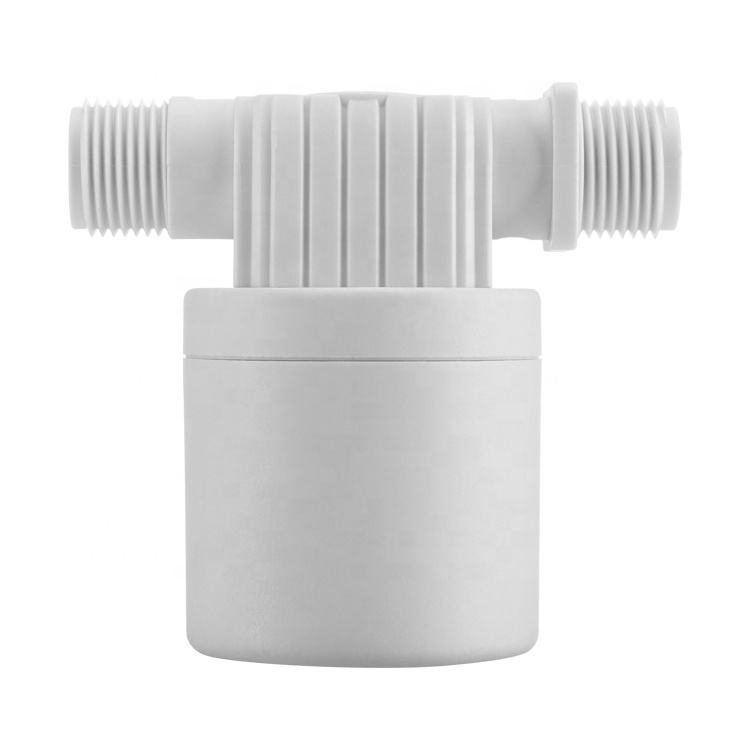

1.This water level control valve is a patented product instead of traditional float valve .
2.It control the water supply and stop according to water level .
3.Small size ,large water discharge and can save more than 60% water .
4.Resisitant rust with stainless steel screw .
5.This water level control valve has been widely used in animal drinking water , water tank ,air cooler ,toilet , swimming pool ,aquarium ,boiler ,solar energy .
2.It control the water supply and stop according to water level .
3.Small size ,large water discharge and can save more than 60% water .
4.Resisitant rust with stainless steel screw .
5.This water level control valve has been widely used in animal drinking water , water tank ,air cooler ,toilet , swimming pool ,aquarium ,boiler ,solar energy .
Product Paramenters
|
Mould Name
|
Type
|
Size
|
Temperature
|
Working Pressure
|
Applicable
|
|
HXN15
|
1/2" inside type
|
DN15
|
≤70℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXNS15
|
1/2" inside type top inlet
|
DN15
|
≤70℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXN20
|
3/4" inside type
|
DN20
|
≤70℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXNS20
|
3/4" inside type top inlet
|
DN20
|
≤70℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXN25N
|
1"inside type
|
DN25
|
≤70℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXN25
|
1" inside type big outlet
|
DN25
|
≤70℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXW15
|
1/2" outside type
|
DN15
|
≤120℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXWS15
|
1/2" outside type top inlet
|
DN15
|
≤120℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXW20
|
3/4" outside type
|
DN20
|
≤120℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXWS20
|
3/4" outside type top inlet
|
DN20
|
≤120℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXW25N
|
1" outside type
|
DN25
|
≤120℃
|
0.02-1.0Mpa
|
Clean water
|
|
HXW25
|
1" outside tyupe big outlet
|
DN25
|
≤120℃
|
0.02-1.0Mpa
|
Clean water
|
