Cat.6 1G Slim Stranded Ethernet Patch Cord U/UTP 28AWG (0.2~5m)

Product Name

Cat.6 1G Slim Stranded Ethernet Patch Cord U/UTP 28AWG (0.2～20m)

Description

* Cat.6 1G Slim Stranded Ethernet Cord UTP 28AWG(0.2～20m)
* Space Saving: O.D. 3.8mm Slim Ethernet Cable takes less space than 22~24AWG cables
* Reduce Congestion: Alleviate congestion as well as improving airflow in the racks
* Slim O.D.: Improve complex cabling environment and prevent damage while plugging/unplugging cable
* 4 pairs of pure copper conductors support up to 1Gbps and 250MHz within 30 meters of cable
* Cable with HDPE insulation is feature of waterproof, anti-ultraviolet, anti-aging

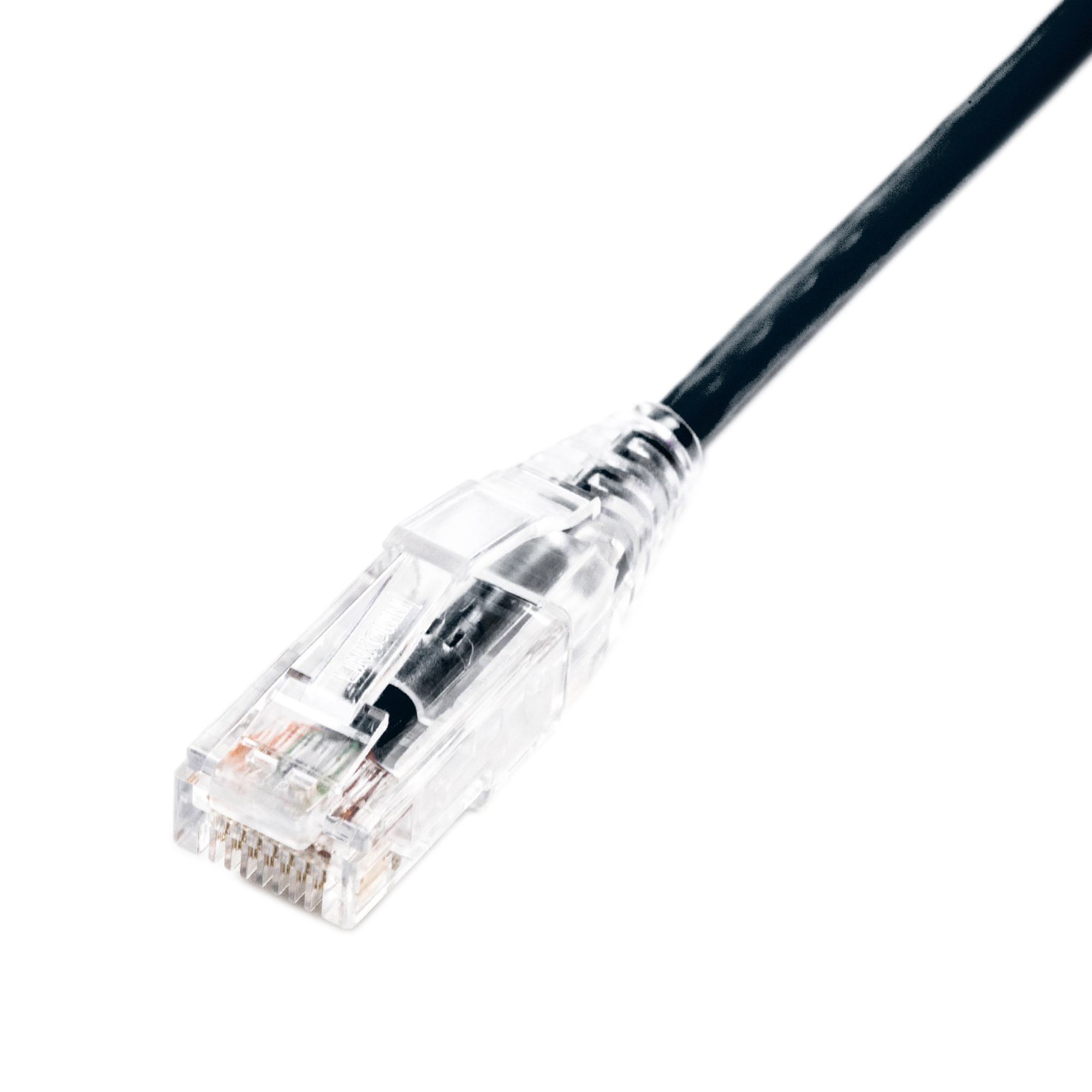

* Each of termination RJ-45 plug is original equipment manufacturer made with boot, to ensure the performance of transmission

Technical Details

* Cable Diameter: 28AWG 3.8mm±0.2mm
* Conductors: Oxygen-Free pure bare Copper (7 x 0.127mm)
* Conductor Insulation: HDPE
* Jacket: PVC
* Boot: PC
* Contact Material: Phosphor Bronze, 50μ” Gold-plated
* Contact Type: 3-prong for solid/stranded conductors
* Test Standard: Fluke Channel
* Supported Data Rate: 1000(1G)Base-T
* Supported Bandwidth: 250MHz
* Max Transmission Distance: 15～20M
* Operating Temperature: -20°C to +75°C

Compliant with TIA/EIA-568.2-D , ISO/IEC 11801 , POE type III 60W/ IV 100W and UL Standard
