1HP and 2HP/ 36 solt 9 spline/Paddle Wheel Aerator

1HP and 2HP/ 36 solt 9 spline/Paddle Wheel Aerator

FOB Reference Price: Get Latest Price

≥1 Sets

US $213

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: Aquaculture Equipment

Model:: YC0.75

Function:: Increase Oxygen in Water

High Quality Motor:: 36 solt

Reducer or Gear Box:: 9 spline

load current:: 1.23A

Weight:: 70Kg

Cover Area:: 3300Sq.m

Oxygen Transfer:: 1.5Kg/h

Voltage:: 220,380,410,415,440V

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: XIAO QING QING

Model Number:: YC0.75

Type:: Aquaculture Equipment

Model:: YC0.75

Function:: Increase Oxygen in Water

High Quality Motor:: 36 solt

Reducer or Gear Box:: 9 spline

load current:: 1.23A

Weight:: 70Kg

Cover Area:: 3300Sq.m

Oxygen Transfer:: 1.5Kg/h

Voltage:: 220,380,410,415,440V

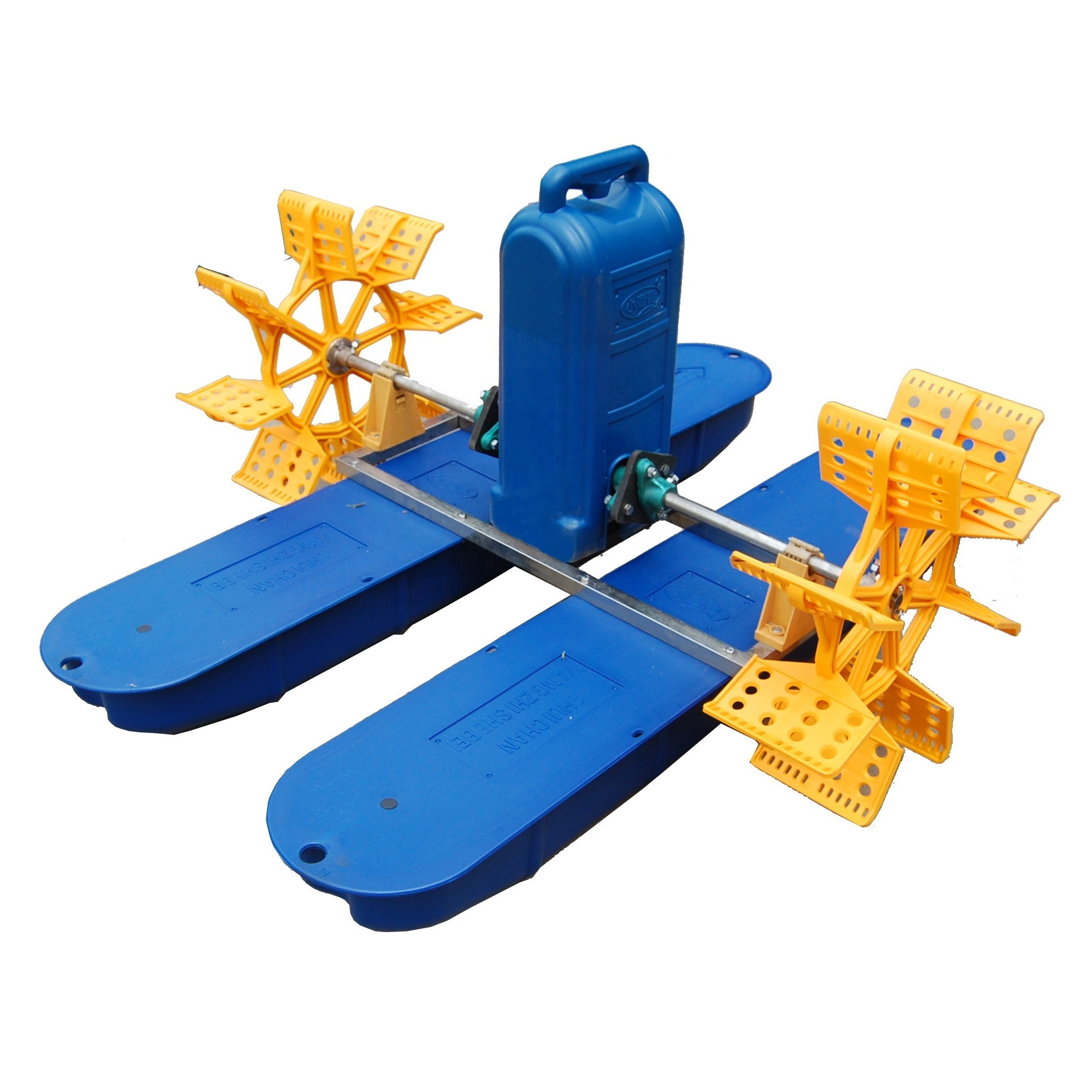

Product Name: PADDLE WHEEL AERATOR 1HP

Brand: XIAO QING QING

Specification:

Model

Weight

Cover

Area

Impellers

Oxygen

Transfer

YC 0 . 7 5

7 0kg

3300m ²

1 . 5 kg/h

Characteristic:

1. Arcuate bevel - gear instead of worm gear , with high efficiency and saving over 20% electric energy than traditional model s .

2. Strong water current, high oxygenation performance, easy maintenance and energy saving .

3. The unique aerator motor made under “ISO9001”And “ISO14001” System.

4."100% New Raw Materials" are guaranteed to be used in our products.

Motor Specification:

High Quality Motor ( 36 solt ) and Reducer ( 9 spline ) load current : 1 . 23 A

Motor

3-PHASE INDUCTION				MOTOR
MODEL	YC0.75	FRAME		Y90L
POLES	4	OUTPUT		1HP 0.75KW
VOLT	380V	Hz	50	INS	H
AMP	1.23A	RATING		CONT
RPM	1440r/min	DESIGN		CNS-2934 C4088
DATE	2019	WEIGHT		18kg

1HP(0.75kw), 3Phase, 380V,50HZ, Aluminum fan cover, Current :≤ 1.23A, Low current design to save electric energy ,We are professional producer of motor for 25 years and famous in China. The coil of motor made of pure 100% copper wire , Best quality whole round silicon steel plates, Cast iron body with perfect painting.

ReducerSpecification:

1.Professional design for aquaculture industry.

2. Arcuate bevel - gear is made of chromium-manganese-titanium with carbon-nitride surface treatment. This ensures long usage life span and high rigidity.

3. Low friction coefficient reducer.

High Performance PP Impeller 640x210mm

1.Replaceable paddle, lower maintenance cost.

2.Toughness against corrosion and sunburn resistance.

3.Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.

# 304 Stainless Steel Frame

Made of # 304 stainless steel material.Sturdy and without deformation.

It can be fixed with rings.

HDPE Float 1750x320x200mm Weight: 7.8kg/pc

1. Made of 100% new HDPE material.

2. Resist impact, acid-alkalinity and sun exposure.

3. One-piece blow molded with absolutely no seeping.

HDPE Motor Cover

1. All new HDPE material.

2.UV Resistant

PP Bearing

1.Made from 100% new PP material.

2."One-Piece Mold" design, no "Pop-Up" problem.

3.Nylon material with hard-wearing rubber sleeve to make shaft in good operation.

Stainless Steel Movable Joint

# 304 Stainless Steel Impeller Shaft (solid) diameter:25mm length:505 mm weight:2kg/pc

Main products: Paddle Wheel Aerator, Automatic Fish and shrimp Feeder, Impeller Aerator, Diesel Aerator , Surge Wave Aerator , etc .
