Quick Details
-
Interface Type:
-
usb
-
Keyboard Standard:
-
21 KEYS
-
Brand Name:
-
HCCTG
-
Model Number:
-
KB21U
-
Place of Origin:
-
Guangdong, China
-
Key Switch Mechanism:
-
Electrostatic Capacity Key Switch with over 30 million life cycle time
-
Total Travel Distance:
-
4 + 0.5mm
-
Interface / Power:
-
USB / +5VDC + 10% / < 200mA
-
Programmable Keys:
-
All keys can be programmable
-
Multi - Level Programming:
-
support max 3 levels
-
LED Indicator:
-
Number lock,Layer and buzzer
-
Memory:
-
All programmed data are stored in EEPROM, without battery
-
Cable:
-
USB cable stored on the back
-
Electronics Lock:
-
3 section of electronic locks for different level users
Quick Details
-
Operation Style:
-
Membrane
-
Style:
-
Mini, Numeric Keyboard, Multifunctional Keyboard
-
Type:
-
Wired
-
Interface Type:
-
usb
-
Keyboard Standard:
-
21 KEYS
-
Brand Name:
-
HCCTG
-
Model Number:
-
KB21U
-
Place of Origin:
-
Guangdong, China
-
Key Switch Mechanism:
-
Electrostatic Capacity Key Switch with over 30 million life cycle time
-
Total Travel Distance:
-
4 + 0.5mm
-
Interface / Power:
-
USB / +5VDC + 10% / < 200mA
-
Programmable Keys:
-
All keys can be programmable
-
Multi - Level Programming:
-
support max 3 levels
-
LED Indicator:
-
Number lock,Layer and buzzer
-
Memory:
-
All programmed data are stored in EEPROM, without battery
-
Cable:
-
USB cable stored on the back
-
Electronics Lock:
-
3 section of electronic locks for different level users
Product Paramenters

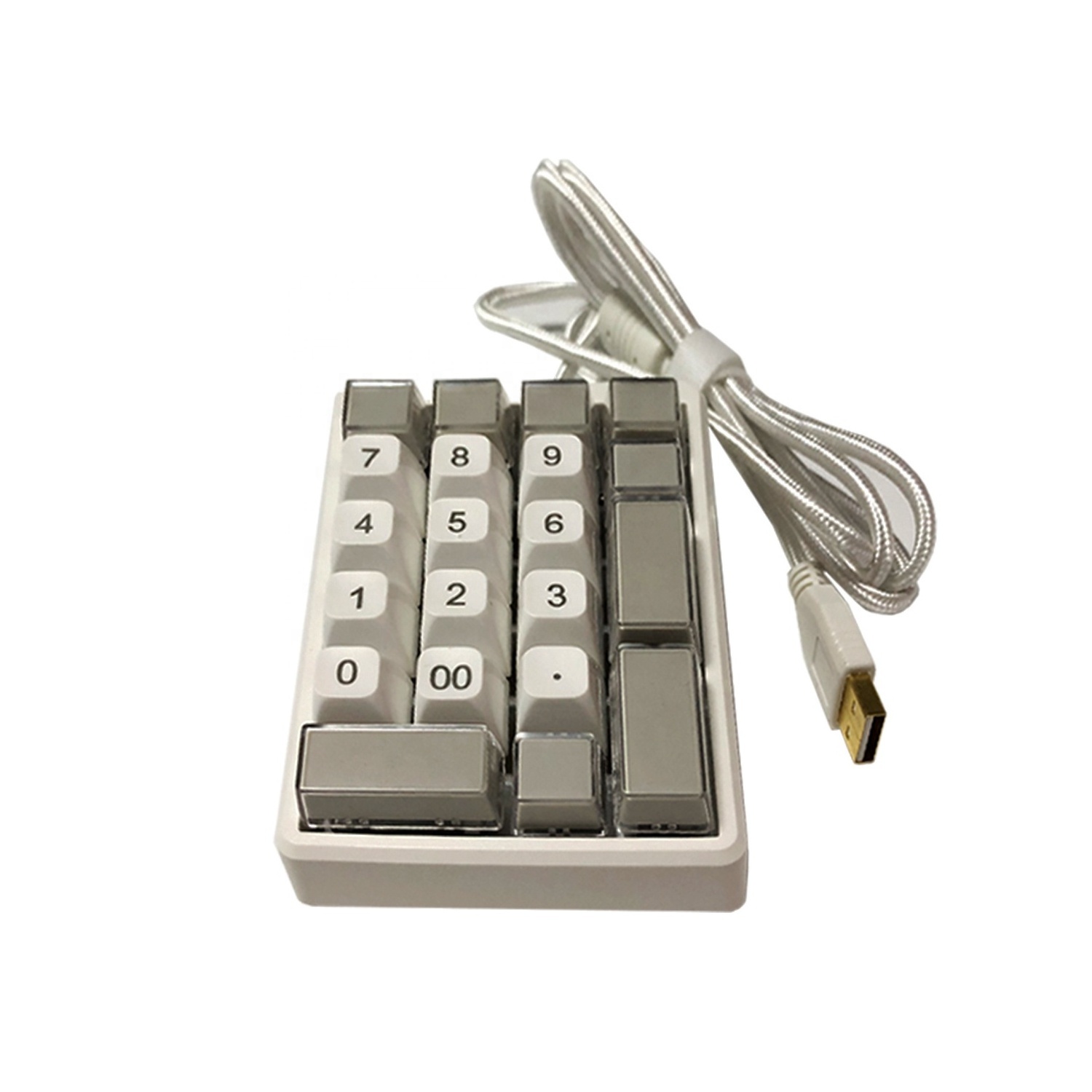

21 Keys Numpad POS Numeric Programmable Membrane Custom Mini Keyboard with USB KB21U
|
Key Number
|
|
21 keys
|
||
|
Key Switch Mechanism
|
|
Electrostatic Capacity Key Switch with over 30 million life cycle time
|
||
|
Black light
|
|
Backlight switch and layer exchange operation as shown figure. The lower-left corner of independent lamp is layer indicator. Off
is first layer; On is second layer; Breathe is three layer. |
||
|
Total Travel Distance
|
|
4 + 0.5mm
|
||
|
Key Force (Peak Load
|
|
45 + 5cN
|
||
|
Interface / Power
|
|
USB / +5VDC + 10% / < 200mA
|
||
|
Cable
|
|
USB cable stored on the back
|
||
|
Programmable Features
|
|
|
||
|
Programmable Keys
|
|
All keys can be programmable
|
||
|
Multi-level Programming
|
|
support max 3 levels
|
||
|
Time Delay Support
|
|
Provide a variable time delay, 0.5 sec per interval
|
||
|
Software Compatibility
|
|
Support USB programming in Window ME/ 9X/2K/ XP/7/8/10
|
||
|
Memory
|
|
All programmed data are stored in EEPROM, without battery
|
||
|
LED Indicator
|
|
Number lock,Layer and buzzer
|
||
|
Others
|
|
|
||
|
Electronics Lock
|
|
3 section of electronic locks for different level users
|
||
|
Environment
|
Operating
|
-10℃ ~ 50℃(32°F ~ 122°F) , 10% ~ 90% (no condensation)
|
||
|
Physical
|
Storage
|
- 20℃ ~ 55℃(-4°F ~ 131°F) , 10% ~ 90% (no condensation)
|
||
|
|
Dimension
|
131 (L) x 89 (D) x 37 (H) mm, 250 g (NW)
|
||
|
|
Box / Weight
|
147 (L) x 146 (D) x 40 (H) mm/ 340g (GW)
|
||
Details Images
Related Products
Company Introduction
Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research,
development,production, sale and service of POS & POS Peripheral Products. Our company are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service.
development,production, sale and service of POS & POS Peripheral Products. Our company are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service.
Our Strength
In the past 11 years, we have deepened the printing and payment industry and expanded markets in Southeast Asia, Central Asia,the Middle East, Central and South America, Eastern Europe and Western Europe. Our products have a growing market share in these regions, and also exported to clients over 100 foreign countries and regions.
In the past 11 years, we have deepened the printing and payment industry and expanded markets in Southeast Asia, Central Asia,the Middle East, Central and South America, Eastern Europe and Western Europe. Our products have a growing market share in these regions, and also exported to clients over 100 foreign countries and regions.
Main production line
1.Multiple Payment -- Android POS
2.Transit Fare Payment -- Automatic Fare Collection (AFC) / Bus Validator Machine
3.E-commerce Express Logistic -- Android PDA (Mobile Receipt/ Label Printer)
1.Multiple Payment -- Android POS
2.Transit Fare Payment -- Automatic Fare Collection (AFC) / Bus Validator Machine
3.E-commerce Express Logistic -- Android PDA (Mobile Receipt/ Label Printer)
Company's Mission
Make Payment & Printing Faster & Easier!
Make Payment & Printing Faster & Easier!
Our Factory
Payment & logistics
FAQ
1.Are you a manufacturer?
Yes, we have focused on the printers and printing solutions for 10 years.
2.Do you have the items in stock?
Most of the product are in stock, and can be sent to you within 3 days after payment received, bulk qty lead time is about 5-15 days
3.Whether support samples ?
Samples are available for test.
4.Do you offer spare parts?
Yes, we can offer printer head, thermal paper, ribbon cartridge ,passbook parts and so on.
5.Can customize according to the customers'request?
Yes, we provide OEM/ODM service.
6.What kind of products you mainly produce?
We mainly produce thermal printer, panel/embedded printer, POS receipt printers, mobile/portable printer and barcode/label printer etc
7.How about the delivery time?
1-3days for sample, We usually ship by DHL, FedEx or TNT. It usually takes 3-5 days to arrive. 25 days for full order. Airline and sea shipping also optional.
8.How about the shipping way?
There are DHL,FEDEX,TNT,UPS,E-EMS(we also can ship goods by your shipping account or other agent you proivded
9.How we control quality?
First, each part of products is strictly inspected according to quality system certification before production. Second, we will do 100% quality checking before shipment. Third, welcome your third-party for product checking.
