Quick Details
-
wheel types:
-
aluminum,alloy,steel
-
drive system:
-
electric/air
-
sell point:
-
Not use crowbar
-
Locked manner:
-
Pneumatic lock
-
max wheel diameter:
-
47"
-
max wheel width:
-
16"
-
max rim diameter:
-
26"
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12 Months
-
color:
-
optional
-
wheel types:
-
aluminum,alloy,steel
-
drive system:
-
electric/air
-
sell point:
-
Not use crowbar
-
Locked manner:
-
Pneumatic lock
-
max wheel diameter:
-
47"
-
max wheel width:
-
16"
-
max rim diameter:
-
26"

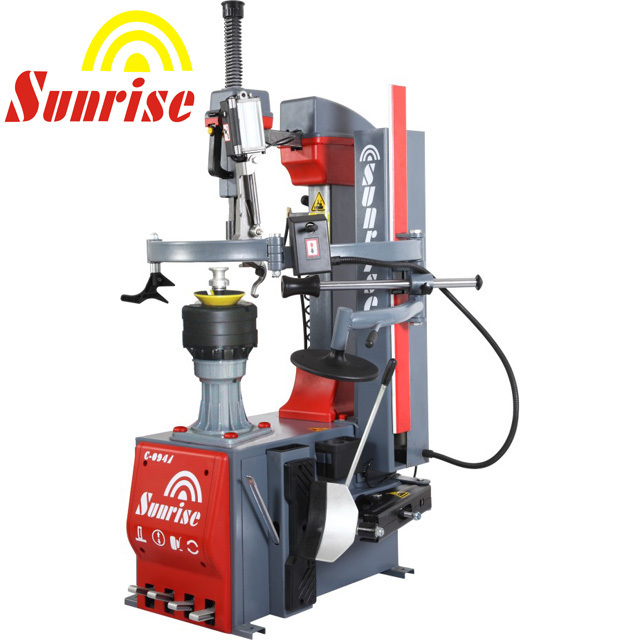

Leverless tire changer C-094A:
Product description:
C-094A is a super-automatic tyre changer for car, racing and van wheels from 10" to 26" in diameter and 16" wide. Solid and sturdy, it is especially suitable for intensive use. The machine may also be equipped with the helper device for working easily and in complete safety even with low profile and RFT tyres.
Product Features:
1.
with
tilting column,pneumatic locked
at optional position
2.Inside and outside of clamps totally protected by
plastic guards
to prevent damage to the most delicate rims
3. Turntable with two
pneumatic cylinders
4. Manually-operated tilting arm support column with high torsional rigidity in all working positions
5. M/D Head with
interchangeable plastic parts
to
protect rims
6.Bead breaking unit with pneumatic cylinder
7.
Ergonomic pedal control
unit to make the working procedure quicker and safer
8. Pneumatic powered leverless head
Technical Specification:
| Motor power | 0.75-1.1KW |
| Power supply | 110V/220V1Ph 220V/380V3Ph |
| Wheel diameter | 1000mm |
| Wheel width | 3"-15" (76-410mm) |
| Outside clamping | 12"-24" |
| Inside clamping | 14"-26" |
| Air supply | 0.8~1MPa |
| Bead breaker force | 2500Kg |
| Noise level | <70dB |
| Package size(mm) | 1200×1000×1100 |
| Weight | 266/276kg |
Package:
Workshop Tour:
Warranty
We aim to provide the best parts warranty for our customers.
We offer 12 months parts warranty and require photographic proof or the item to be sent back to our workshop for assessment and review.
Our warranty does not cover the followings :
1.Intentional Misuse
2.Not following maintenances chedules and accidents out of the human control
3.Freight is at the buyers expense
4.All warranty claims will be attended promptly and in a professional manner
Delivery Term
Usually we send the shipments in FOB term.However,the terms of CIF and C&F are acceptable which depend of clients.
Delivery Time
Usually it takes about 20-30days after we received your down payment.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item.
Payment Term
By T/T, 30% previous payment and 70% balance payment before shipping or copy of Bill.
Minmum Order Quantity
The sample order, if we have stocks, we will send out the products within 1 week.
Advantage
We have exported our products and service to more than 50 countries./ we have speclized team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturering technology.
