Quick Details
-
Brand Name:
-
GINYI
-
Dimension(L*W*H):
-
151*100*213cm
-
Weight:
-
550 KG
-
Power:
-
1.1kw
-
Name:
-
Needle Loom machine
-
Heads:
-
6pcs
-
Reed Width:
-
45/55 mm
-
Heald Frame:
-
12 pcs
-
Creel Ends:
-
18 pcs
-
Pick Repeat:
-
8-40
-
Weft Density:
-
3.5-36.7 Weft/cm
-
Motor. HP:
-
1.5 HP
-
Speed. RPM:
-
800-1000 RPM
Quick Details
-
Type:
-
Shuttleless Loom
-
Application:
-
Webbing, Ribbon, Elastic Band, Narrow Belt
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GINYI
-
Dimension(L*W*H):
-
151*100*213cm
-
Weight:
-
550 KG
-
Power:
-
1.1kw
-
Name:
-
Needle Loom machine
-
Heads:
-
6pcs
-
Reed Width:
-
45/55 mm
-
Heald Frame:
-
12 pcs
-
Creel Ends:
-
18 pcs
-
Pick Repeat:
-
8-40
-
Weft Density:
-
3.5-36.7 Weft/cm
-
Motor. HP:
-
1.5 HP
-
Speed. RPM:
-
800-1000 RPM

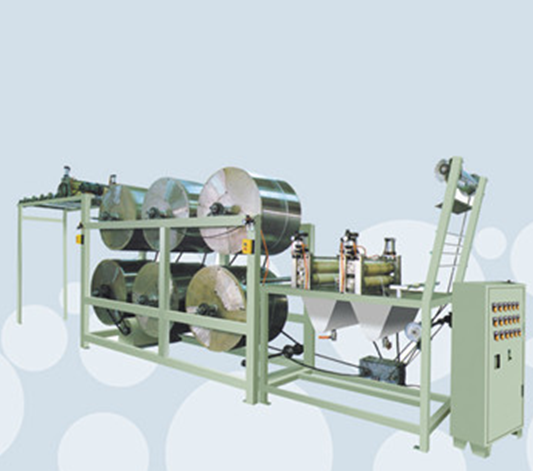

GINYI Automatic Narrow Fabric Starching Finishing Machine 6 Rollers Stainless Steel Elastic Band Ironing Machine
Product Description
| MODEL | GNR-501 |
| ROLLER NUMBER | 6PCS |
| ROLLER SIZE | DIA 600MM*L600MM |
| ROLLER MATERIAL | STAINLESS STEEL/ WITH TEFLONE COVERED |
| HEATING WAY | ELECTRIC HEATING/ STEAM HEATING |
| MOTOR | 4HP |
| ELECTRIC HEATING WHEN WORKING | 45KW |
| MAX TEMPERATURE | 0-300°C |
| SPEED | 30-40M/MIN/TAPE |
| INPUT WIDTH | 32CM |
OTHER MODEL
| MODEL | GNR-500 | GNR-501 |
| ROLLER NUMBER | 2PCS | 6PCS |
| ROLLER SIZE | DIA 800MM*L1500MM | DIA 600MM*L600MM |
| ROLLER MATERIAL | STAINLESS STEEL/ WITH TEFLONE COVERED | |
| HEATING WAY | ELECTRIC HEATING/ STEAM HEATING | |
| MOTOR | 4HP | |
| ELECTRIC HEATING WHEN WORKING | 27KW | 45KW |
| MAX TEMPERATURE | 0-300°C | |
| SPEED | 30-40 M/MIN/TAPE | 20-25 M/MIN/TAPE |
| INPUT WIDTH | 32CM | |
