Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SOLID
-
Model Number:
-
Double Socket Taper
-
Color:
-
Request
-
Standard:
-
ISO2531 EN545/598 BS4772
-
Application:
-
Pipe Quick Easy Pipe Repair Clamp
-
Pressure:
-
PN10 PN16 PN25 PN40
-
Socket Joint:
-
T type ( push-on type) / K type ( MJ type)
-
Surface treatment:
-
Fusion Bond Epoxy powder/paiting or bitumen
-
Certificate:
-
ISO 9001
-
Coating:
-
Black Bitumen/Blue Epoxy
-
Packing:
-
Wooden Case OR Pallet
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SOLID
-
Model Number:
-
Double Socket Taper
-
Color:
-
Request
-
Standard:
-
ISO2531 EN545/598 BS4772
-
Application:
-
Pipe Quick Easy Pipe Repair Clamp
-
Pressure:
-
PN10 PN16 PN25 PN40
-
Socket Joint:
-
T type ( push-on type) / K type ( MJ type)
-
Surface treatment:
-
Fusion Bond Epoxy powder/paiting or bitumen
-
Certificate:
-
ISO 9001
-
Coating:
-
Black Bitumen/Blue Epoxy
-
Packing:
-
Wooden Case OR Pallet

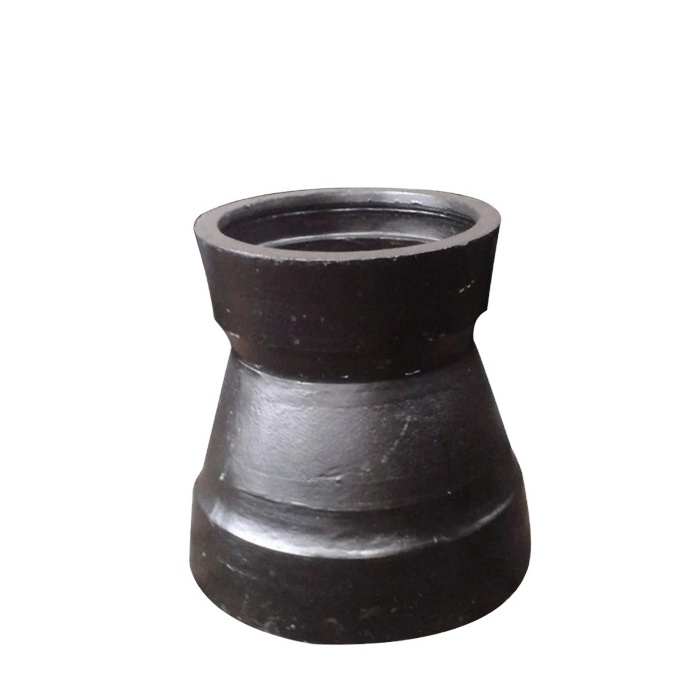

Ductile Iron Pipe Fitting Tyton Double Socket Taper for PVC pipes
1. Briefs :
* mainly used for transferring the drinkable water, waste water and for irrigation
* working pressure PN16
* Standard: ISO2531/EN545/EN598/AWWA C110/C153
2. Surface treament :
Metallic zinc spray with Bituminous Coating (Outside)
Cement mortar lining (Inside).
Epoxy power coating available upon your request.
3. Dimension Sheet :
| S/N | DNxdn | S | S1 | t |
| mm | mm | mm | mm | |
| 1 | 100x80 | 150 | 150 | 90 |
| 2 | 150x80 | 200 | 150 | 190 |
| 3 | 150x100 | 200 | 150 | 150 |
| 4 | 200x100 | 200 | 150 | 250 |
| 5 | 200x150 | 200 | 200 | 150 |
| 6 | 250x150 | 200 | 200 | 250 |
| 7 | 250x200 | 200 | 200 | 150 |
| 8 | 300x150 | 200 | 200 | 350 |
| 9 | 300x200 | 200 | 200 | 250 |
| 10 | 300x250 | 200 | 200 | 150 |
| 11 | 350x200 | 200 | 200 | 360 |
| 12 | 350x250 | 200 | 200 | 260 |
| 13 | 350x300 | 200 | 200 | 160 |
| 14 | 400x250 | 200 | 200 | 360 |
| 15 | 400x300 | 200 | 200 | 260 |
| 16 | 400x350 | 200 | 200 | 160 |
| 17 | 450x350 | 200 | 200 | 260 |
| 18 | 450x400 | 200 | 200 | 160 |
| 19 | 500x350 | 200 | 200 | 360 |
| 20 | 500x400 | 200 | 200 | 260 |
| 21 | 500x450 | 200 | 200 | 160 |
| 22 | 600x400 | 200 | 200 | 460 |
| 23 | 600x500 | 200 | 200 | 260 |
| 24 | 700x500 | 200 | 200 | 480 |
| 25 | 700x600 | 200 | 200 | 280 |
| 26 | 800x600 | 200 | 200 | 480 |
| 27 | 800x700 | 200 | 200 | 280 |
| 28 | 900x700 | 250 | 200 | 480 |
| 29 | 900x800 | 280 | ||
| 30 | 1000x800 | 250 | 200 | 480 |
| 31 | 1000x900 | 250 | 200 | 280 |
| 32 | 1100x1000 | 250 | 250 | 280 |
| 33 | 1200x1000 | 250 | 250 | 480 |
| 34 | 1400x1200 | 300 | 250 | 360 |
| 35 | 1500x1400 | 300 | 250 | 260 |
| 36 | 1600x1400 | 300 | 300 | 360 |
| 37 | 1800x1600 | 380 | 300 | 360 |
| 38 | 2000x1800 | 380 | 380 | 360 |
