Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12B
-
Diameter:
-
12mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White Orange Purple Pink
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK08
-
Rated Voltage/Current:
-
AC250V/1A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
micro push button switch
-
Certification:
-
CCC,CE
Quick Details
-
Protection Level:
-
IP65/IK08
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LANBOO
-
Model Number:
-
LB12B
-
Diameter:
-
12mm
-
Switch Combination:
-
1NO-Normal Open
-
Operation type:
-
Momentary or Latching
-
Emitting Type:
-
Ring LED/Dot LED/Symbol LED
-
Lamp color:
-
Red Green Yellow Blue White Orange Purple Pink
-
Lamp voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Waterproof/Protection:
-
IP65/IK08
-
Rated Voltage/Current:
-
AC250V/1A
-
Shell Metal:
-
Stainless Steel/Copper plating/Aluminum oxide
-
Product name:
-
micro push button switch
-
Certification:
-
CCC,CE
| Model Description | |

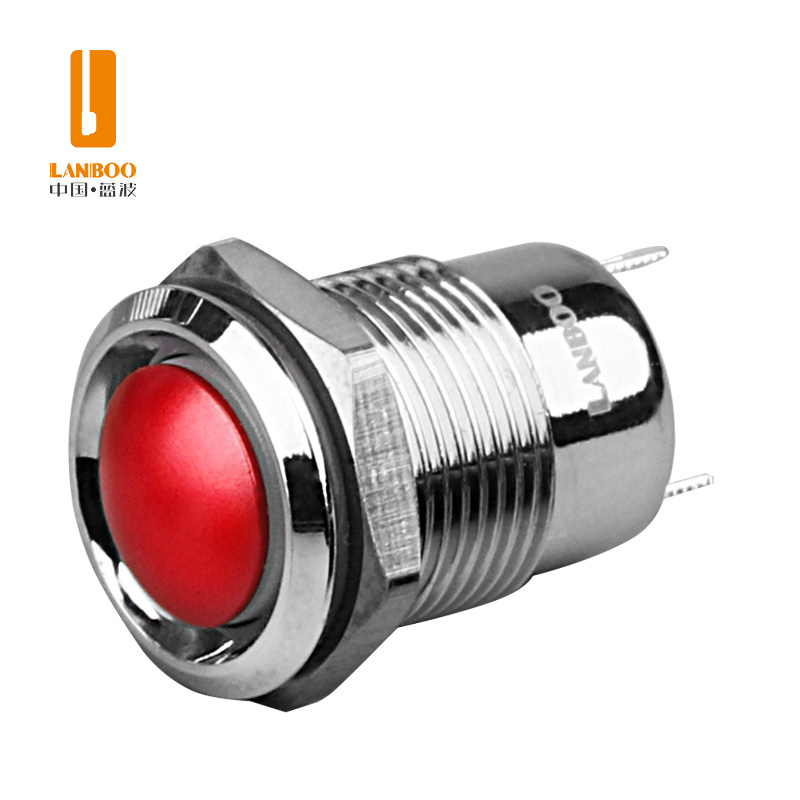

| Model NO. | LB-12B push button switch small |
| Mounting diameter | 12mm |
| Head shape | Plat/High/Ball Head |
| Switch Combination | 1NO |
| Operation type | Momentary/Latching |
| Illuminating type | Ring LED/Symbol LED/Dot LED |
| Illuminating color | red,green,blue,yellow,white |
| Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V |
| Shell material | Stainless Steel/chromium plated brass/Aluminum oxide/Stainless steel titanium plated |
| The Others Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow acting double contact | Operation Schedule | Connected:0.85+0.15mm,Total:2.8±0.2mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 4±0.5N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤8mm. customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 0.8~1.2N.m |
| Ambient Temperature | -40℃~+80℃ |
Outshell
Press Key |
304 Stainless Steel/6063 aluminum oxide/copper plate 316 Stainless Steel/6063 aluminum oxide |
| Protection Levels | IK08 | Diffuser | PC |
| Electrical Life |
Resistant load AC220V/0.5A, DC24V/2A: 10,000 times |
Nut Base Seat/ Bottom Seat |
Nickel brass
PA66 |
| Mechanical Life |
Latching: 200,000 times,
|
Pins Contact |
H65 Silver Plated (RoHS) copper plated Gold/silver |
| Waterproof | IP65 | Spring | Improved steel wire |
| Switch Rated Load | ||||||
|
Project |
Parameter | |||||
| Reated Insulation Voltage | AC250V | |||||
| Fusing Current | 2A | |||||
| Rated Voltage | DC12V | DC 24V | DC 110V | AC 110V | AC 220V | |
| Rated Current | Nonreactive Load | 2A | 2A | - | 1A | 0.5A |
| Inductive Load | - | - | 0.2A | 0.3A | 0.3A | |
