Quick Details
-
Brand Name:
-
MAIXI
-
Model Number:
-
SBW5-200KVA
-
Input Voltage:
-
285-475VAC Or Customize
-
Output voltage:
-
380V±25%
-
Display:
-
Digital Display
-
Color:
-
White,Black,Blue or Customize
-
Efficiency:
-
98.5%
-
Certificate:
-
CE,ISO9001, BV, EAC
-
Protection:
-
Short Circuit/Undervoltage/Overvoltage
-
Warranty:
-
2 Years
-
Technology:
-
IC Controlled Circuit
-
Response Time:
-
0.05S
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MAIXI
-
Model Number:
-
SBW5-200KVA
-
Input Voltage:
-
285-475VAC Or Customize
-
Output voltage:
-
380V±25%
-
Display:
-
Digital Display
-
Color:
-
White,Black,Blue or Customize
-
Efficiency:
-
98.5%
-
Certificate:
-
CE,ISO9001, BV, EAC
-
Protection:
-
Short Circuit/Undervoltage/Overvoltage
-
Warranty:
-
2 Years
-
Technology:
-
IC Controlled Circuit
-
Response Time:
-
0.05S
Product Description
Main Features:
30KVA-3000KVA Power Range
SBW Three Phase Voltage Stabilizer
Intelligent Digital Display
CPU Intelligent Operation Control
Stepless Adjustment
Fully actomatic Compensated voltage stabilizer.
Fully actomatic Compensated voltage stabilizer.
Overvoltage, Undervoltage, Overcurrent, Phase Sequence, Lack of Instructions Functions

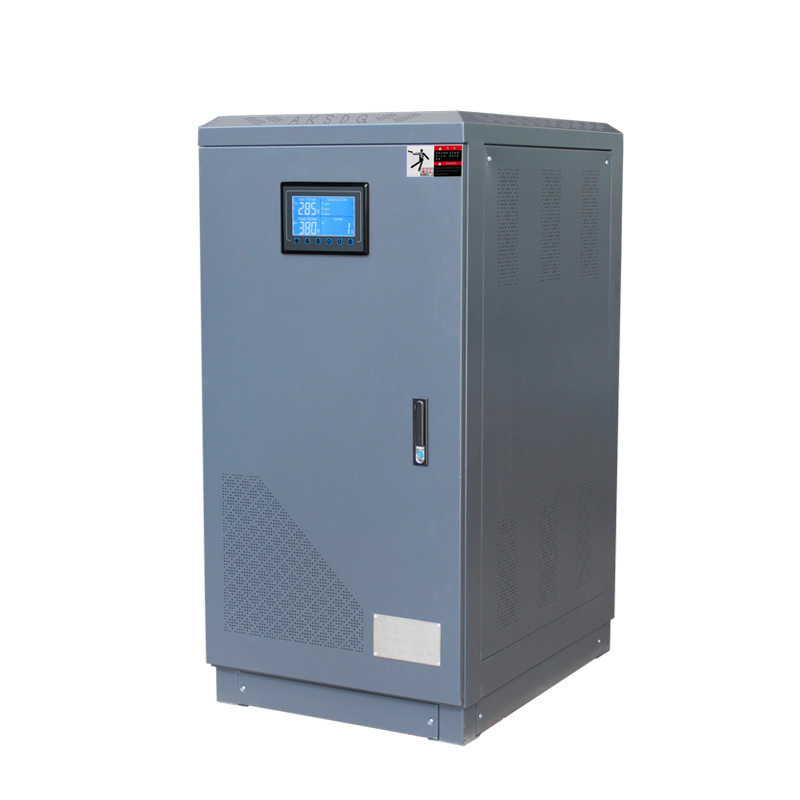

SBW5 200KVA High Frequency Automatic Stabilizer Voltage Regulator
Paramenters
Check line&phase voltage and current, set various functions
|
Capacity
|
30KVA-3000KVA
|
|
Technology
|
CPU Intelligent Control System
|
|
Input Voltage
|
AC285-475V
|
|
Output Voltage
|
380V±25%
|
|
Phase
|
Three Phase
|
|
Frequency
|
47-63Hz
|
|
Adjust Time
|
<1sec.(against 10% input voltage deviation)
|
|
Respone Time
|
≤0.1%
|
|
Setting Time
|
<1.0s
|
|
Regulator Mode
|
Stepless adjustment
|
|
Display
|
LCD display or Customize
|
|
Protection
|
Overvoltage, undervoltage, overcurrent, short circuit, phase loss, etc.
|
|
Ambient Temp.
|
-10~+45℃
|
|
Relative Humidity
|
<90%
|
|
Waveform Distortion
|
≤0.1%
|
|
Efficiency
|
>98.5%
|
|
Insulation Resistance
|
≥5MΩ
|
|
Model
|
Power
|
Unit(pcs)
|
Product Size(mm)
|
G.W(KG)
|
|
SBW5-30KVA
|
30KVA
|
1
|
600*850*1250
|
230
|
|
SBW5-50KVA
|
50KVA
|
1
|
600*850*1250
|
250
|
|
SBW5-80KVA
|
80KVA
|
1
|
600*850*1350
|
300
|
|
SBW5-100KVA
|
100KVA
|
1
|
600*850*1350
|
360
|
|
SBW5-150KVA
|
150KVA
|
1
|
750*950*1500
|
480
|
|
SBW5-180KVA
|
180KVA
|
1
|
750*950*1500
|
500
|
|
SBW5-200KVA
|
200KVA
|
1
|
750*950*1500
|
630
|
|
SBW5-225KVA
|
225KVA
|
1
|
750*950*1500
|
680
|
|
SBW5-250KVA
|
250KVA
|
1
|
750*950*1500
|
700
|
|
SBW5-300KVA
|
300KVA
|
1
|
1100*900*2000
|
740
|
|
SBW5-320KVA
|
320KVA
|
1
|
1100*900*2000
|
860
|
|
SBW5-350KVA
|
350KVA
|
1
|
1100*900*2000
|
980
|
|
SBW5-400KVA
|
400KVA
|
1
|
1100*900*2000
|
1080
|
|
SBW5-450KVA
|
450KVA
|
1
|
1200*1100*2200
|
1320
|
|
SBW5-500KVA
|
500KVA
|
1
|
1200*1100*2200
|
1470
|
|
SBW5-600KVA
|
600KVA
|
1
|
1200*1100*2200
|
2170
|
|
SBW5-F/800KVA
|
800KVA
|
1
|
1850*1300*2200
|
2650
|
|
SBW5-F/1000KVA
|
1000KVA
|
1
|
1950*1350*2250
|
3150
|
|
SBW5-F/1200KVA
|
1200KVA
|
1
|
1950*1350*2250
|
3650
|
|
SBW5-F/1600KVA
|
1600KVA
|
1
|
1950*1350*2250
|
4700
|
|
SBW5-F/1800KVA
|
1800KVA
|
1
|
1100*1200*2200
(4 cabinets)
|
5200
|
|
SBW5-F/2000KVA
|
2000KVA
|
1
|
1100*1200*2200
(4 cabinets)
|
5800
|
Product Details
Packing & Delivering
Application
Customer Reviews
Highly Recommended
FAQ
Q. How to select Servo Voltage Stabilizer?
A. When you select any stabilizer it requires some data as follows:
> Input Voltage range
> Output Voltage range
> KVA rating.
> Type of load: balance/unbalance.
> Type of voltage: balance / unbalance.
> Type of protection required.
> Type of cooling: air / oil
Q. Which protection to use in your Stabilizer?
A. We provide protection against bypass, short circuit, over load, over voltage/under voltage and also if customers have any specific requirement.
Q. What is the efficiency of your Stabilizer?
A. The efficiency of our Stabilizer is more than 97% in comparison with other type available in the market.
