Quick Details
-
Brand Name:
-
SDAPO
-
Model Number:
-
PSE 1008GSR
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
Quick Details
-
Transmission Rate:
-
10/100/1000
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
20g
-
Brand Name:
-
SDAPO
-
Model Number:
-
PSE 1008GSR
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
Products Description
Product Overview
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.compatible to IEEE802.3af/at. It can power both existing 10/100Base-T network devices Wi-MAX and wireless
IEEE 802.11n access points.
Ordering Information
Part Number Description
PSE1008GSR: 8-Port 100/1000Mbps 8Port PoE +2 Gigabit
TP/SFP not Combo Ports Switch (150W)
Modern business networks are used for increasingly diverse applications – traditional data streams, VoIP voice traffic, video output from digital security cameras and remote control devices to name a few. The range of devices attached to today’s converged network often need to be supported not just in terms of data – equipment such as VoIP IP telephones and Wireless Access Points frequently need to be powered in physical locations where mains power is not available or difficult to deliver. Providing power to such devices via an Ethernet UTP cable is an elegant and easy to implement solution.compatible to IEEE802.3af/at. It can power both existing 10/100Base-T network devices Wi-MAX and wireless
IEEE 802.11n access points.
Ordering Information
Part Number Description
PSE1008GSR: 8-Port 100/1000Mbps 8Port PoE +2 Gigabit
TP/SFP not Combo Ports Switch (150W)
High Performance Wire-Speed Switching

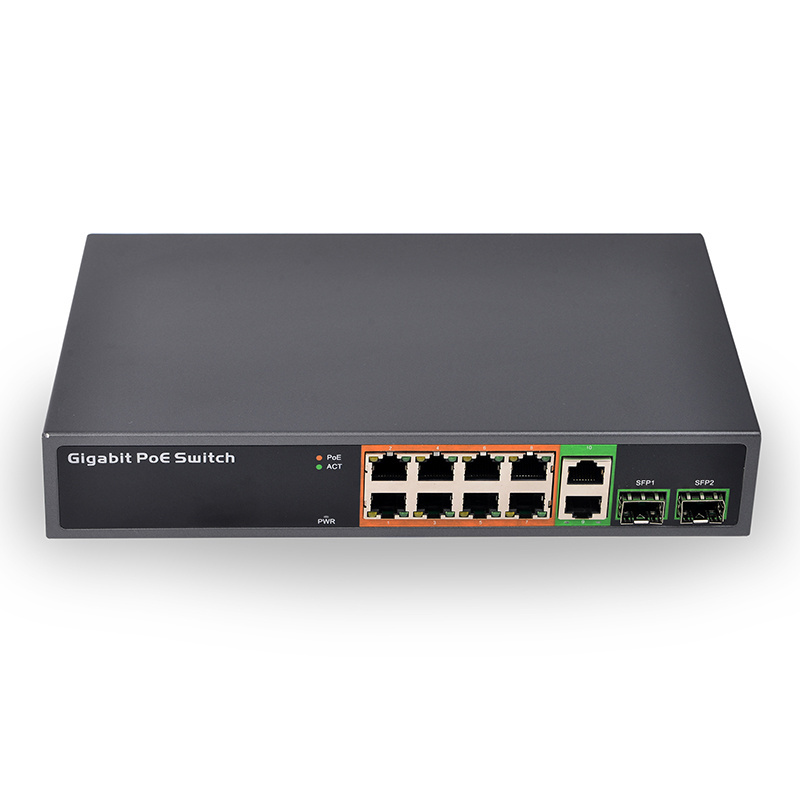

The PSE1008GSR offers 8 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP ports. The two Gigabit TP ports can be either 1000Base-T for 10/100/1000Mbps o interface. PSE1008GSR boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 5.6Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
The PSE1008GSR offers 8 10/100Mbps Fast Ethernet ports and 2 Gigabit TP/SFP ports. The two Gigabit TP ports can be either 1000Base-T for 10/100/1000Mbps o interface. PSE1008GSR boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 5.6Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.
Features
*Up to 30W of Power on
*Up to 30W of Power on
*IEEE 802.3af/at
*Compatible With All IEEE 802.3af/at or Legacy
*Safe: Low Power Devices Receive Only the Power They Need
*Safe and Reliable Power to WLAN Access Points
*Automatic Detection and Protection of Non–standard Ethernet Terminals
*Supports 10/100 Base-T applications
*Compact Design Fits Easily in WLAN Access
*Plug-and-Play no configuration required
*Internal power supply
*Easy installation and maintenance
*Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
*Compatible With All IEEE 802.3af/at or Legacy
*Safe: Low Power Devices Receive Only the Power They Need
*Safe and Reliable Power to WLAN Access Points
*Automatic Detection and Protection of Non–standard Ethernet Terminals
*Supports 10/100 Base-T applications
*Compact Design Fits Easily in WLAN Access
*Plug-and-Play no configuration required
*Internal power supply
*Easy installation and maintenance
*Save up to 83% power with Green Technology
*complies to IEEE 802.3af PoE standard and is backward
|
Hardware Specification
|
|
|
|
100/1000Mbps Copper Ports
|
8* 100/ 1000Base-TX RJ-45 Auto-MDI/MDI-X ports
|
|
|
1000Mbps Copper Ports
|
2* 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports
|
|
|
SFP/mini-GBIC Slots
|
2* 1000Base-SX/LX, shared with Port-9~Port-10
|
|
|
Switch Architecture
|
Store-and-Forward
|
|
|
Switch Fabric
|
24 Gbps / non-blocking
|
|
|
Switch Throughput
|
4.17Mpps @64Bytes
|
|
|
Address Table
|
8K entries
|
|
|
Share Data Buffer
|
512Kbytes
|
|
|
Maximum Frame Size
|
9K Bytes
|
|
|
Flow Control
|
Back pressure for Half-Duplex
IEEE 802.3x Pause Frame for Full-Duplex |
|
|
LED
|
Power （yellow ）;POE(yellow)
10/100 LINK / ACT (Green) 1000 ACT(Green);1000 LINK(yellow) |
|
|
Reset Button
|
< 5 sec: System reboot
> 5 sec: Factory Default |
|
|
Dimension (W x D x H)
|
250 x 150 x 44 mm, 1U height
|
|
|
Weight
|
1.6 kg
|
|
|
Power Requirement
|
100~240V AC, 50-60 Hz
|
|
|
Power Consumption / Dissipation
|
150 Watts maximum /510 BTU/hr maximum
|
|
|
Power over Ethernet
|
|
|
|
PoE Standard
|
IEEE 802.3af/at Power over Ethernet / PSE
|
|
|
PoE Power Supply Type
|
End-Span
|
|
|
PoE Power Output
|
Per Port 52V DC, 350mA~600ma . Max. 30 Watts
|
|
|
Power Pin Assignment
|
1/2(+), 3/6(-)
|
|
|
PoE Power Budget
|
130 Watts
|
|
|
Max. number of Class 3 PD
|
8
|
|
|
Standards Conformance
|
|
|
|
Standards Compliance
|
IEEE802.3:10Base-T IEEE802.3u: 100BaseTX
IEEE802.3z:1000Base-SX/LX IEEE802.3ab:1000Base-T IEEE802.3af/at: Power over Ethernet |
|
|
Environemmental
|
|
|
|
Operating
|
Temperature: 0 ~ 50 Degree C Relative Humidity: 20 ~ 95%
|
|
|
Storage
|
Temperature: -10 ~ 70 Degree C
Relative Humidity: 20 ~ 95% (non-condensing) |
|
