Quick Details
-
Max. Spindle Speed (r.p.m):
-
3000 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
0 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
350
-
Travel (X Axis)(mm):
-
240 mm
-
Travel (Z Axis)(mm):
-
400 mm
-
Positioning Accuracy (mm):
-
enquiry us
-
Repeatability (X/Y/Z) (mm):
-
enquiry us
-
Place of Origin:
-
Shanghai, China
-
Dimension(L*W*H):
-
2000*2000*2000 mm
-
Brand Name:
-
ANTISHICNC
-
Model Number:
-
TCK450A
-
Voltage:
-
380V50HZ
-
Weight (KG):
-
3200
-
Marketing Type:
-
New Product 2023
-
Machine Type:
-
Slant Bed Linear Guide CNC Lathe
-
Swing over bed:
-
560mm
-
Swing over cross slide:
-
260mm
-
Max.Work piece Length:
-
350mm
-
Spindle bore taper:
-
A2-6/8
-
Spindle speed ranges:
-
3000 rpm
-
Turret/tool post:
-
Hydraulic 8/12 position
-
Payment:
-
T/T
-
Packing:
-
Factory standard package
-
Net weight:
-
3200kg
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
350
-
Year:
-
Latest Date
-
Max. Spindle Speed (r.p.m):
-
3000 r.p.m
-
Max. Weight of Workpiece(kg):
-
enquiry us
-
Width of bed (mm):
-
0 mm
-
Spindle Motor Power(kW):
-
11
-
Max. Turned Length (mm):
-
350
-
Travel (X Axis)(mm):
-
240 mm
-
Travel (Z Axis)(mm):
-
400 mm
-
Positioning Accuracy (mm):
-
enquiry us
-
Repeatability (X/Y/Z) (mm):
-
enquiry us
-
Place of Origin:
-
Shanghai, China
-
Dimension(L*W*H):
-
2000*2000*2000 mm
-
Brand Name:
-
ANTISHICNC
-
Model Number:
-
TCK450A
-
Voltage:
-
380V50HZ
-
Weight (KG):
-
3200
-
Marketing Type:
-
New Product 2023
-
Machine Type:
-
Slant Bed Linear Guide CNC Lathe
-
Swing over bed:
-
560mm
-
Swing over cross slide:
-
260mm
-
Max.Work piece Length:
-
350mm
-
Spindle bore taper:
-
A2-6/8
-
Spindle speed ranges:
-
3000 rpm
-
Turret/tool post:
-
Hydraulic 8/12 position
-
Payment:
-
T/T
-
Packing:
-
Factory standard package
-
Net weight:
-
3200kg
ANTISHICNC TCK50A Slant Bed Automatic CNC Lathe Horizontal High Precision CNC Turning Center Turning Milling Heavy Duty Machine
|
Specifications
|
Units
|
TCK50A
|
|
Swing over bed
|
mm
|
560
|
|
Swing over cross slide
|
mm
|
260
|
|
Guide width
|
mm
|
-
|
|
Max.Work piece Length
|
mm
|
400/320
|
|
Spindle bore
|
mm
|
66/66/86
|
|
Spindle bore taper
|
|
A2-6/8
|
|
Spindle speed steps
|
-
|
Stepless
|
|
Spindle speed range
|
rpm
|
3000
|
|
Turret/tool post
|
-
|
Hydraulic 8/12 position
|
|
Tool size
|
mm
|
25*25
|
|
X axis travel
|
mm
|
240
|
|
Z axis travel
|
mm
|
400/540/900
|
|
X axis rapid traverse
|
mm/min
|
24000
|
|
Z axis rapid traverse
|
mm/min
|
24000
|
|
Tailstock quill diameter
|
mm
|
70/88
|
|
Tailstock quill taper
|
-
|
MT5
|
|
Tailstock quill travel
|
mm
|
80
|
|
Main spindle motor
|
kw
|
2011-11-15
|
|
Weight
|
kg
|
3200/3600/4500
|
|
Dimension
|
mm
|
2700/2700/3300*2000*2000
|

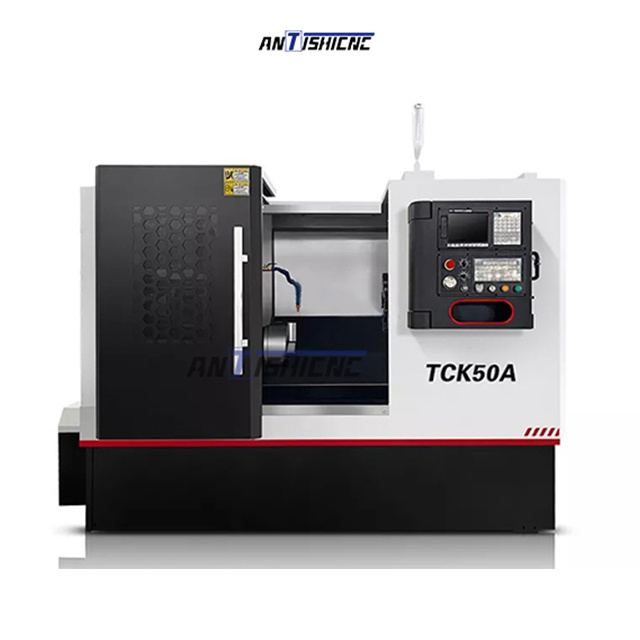

TCK50A Slant Bed Automatic CNC Lathe Horizontal High Precision CNC Turning Center
Product Details
The TCK50A High Precision CNC Turning Center Slant Bed CNC Lathe product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
TCK50A Slant Bed Automatic CNC Lathe Horizontal High Precision CNC Turning Center
Features
1.The inclined guide rail is mainly used to overcome gravity and have better stability to improve the precision of the machine tool
2.The inclined machine tool can effectively utilize the space and greatly reduce the plane occupied by the machine tool.
3.The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.
TCK50A Slant Bed Automatic CNC Lathe Horizontal High Precision CNC Turning Center
Standard accessories
GSK CNC controller
Taiwan linear guide way
10 inch hydraulic chuck
8 station hydraulic turret
Automatic lubrication system
Automatic cooling system
Work light
Tools & tool box
TCK50A Slant Bed Automatic CNC Lathe Horizontal High Precision CNC Turning Center
Optional accessories
Power turret
Chip conveyor
Siemens or FANUC CNC controller
12 inch hydraulic chuck
