Product show

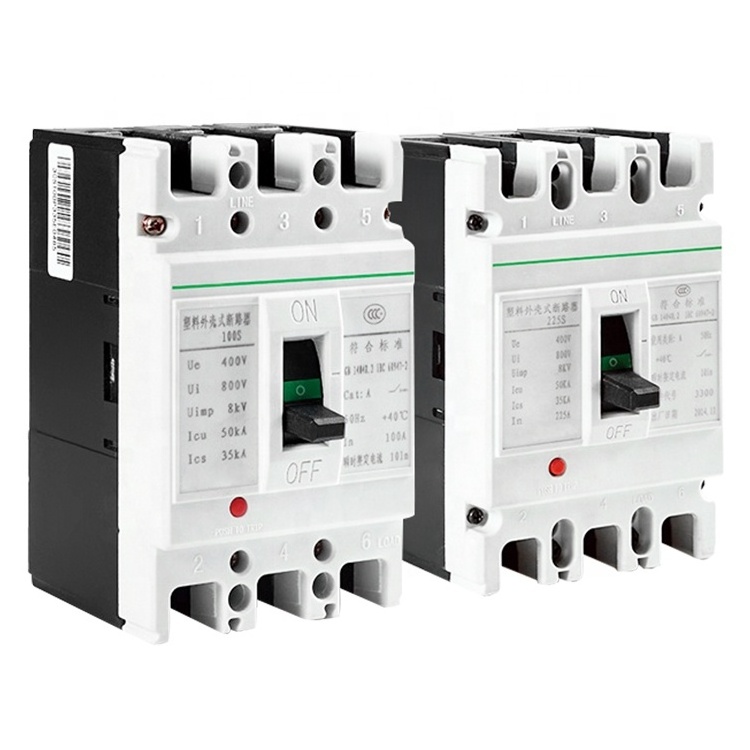

MCCB Moulded Case Circuit Breaker
Description
GPM11 series molded case circuit breaker is suitable for AC 50/ 60Hz rated working voltage 400V, rated current up to 800A of power distribution network for the distribution of power and protection circuits, power supply and electrical equipment against overload, under-voltage and short circuit hazards, it improves the reliability of power supply under normal use conditions which are not frequent start as infrequent line conversion and motor. And with isolation function as well. It meet with standard of GB/T 14048.2 and IEC 60947-2.
MAIN FEATURES
1.Indoor altitude above sea level: Maximum installation altitude: 2000m
2..Ambient air temperature: -5℃~+40℃ and the average temperature should not exceed +35℃ in 24h
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually.
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
7.Any specific requirement, consult with manufacture.
Technology & details
|
GPM11
|
Molded Case Circuit Breaker
|
|
100
|
Shield frame current
|
|
H
|
Short-circuit breaking capacity: N: Normal type S: Standard type H: High-breaking type
|
|
P
|
Operating way: Motorized operation: P
Rotate handle operate: Z
Direct operation (no code) |
|
2
|
Protection feature Selection: Distribution protection: No code Motor protection: 2
|
|
4
|
phase number
2: Two phases
3: Three phases
4: Four phases
|
|
208
|
Trip way and internal accessories code
|
|
In=100
|
Rated current (A)
|
|
B
|
4 Phase breaker N phase have 4 different types marked as A, B, C, D
A: N phase will not install current tripper, and N connected always, not operated with other 3 phases.
B: N phase not install current tripper, and N phase not operated with other 3 phases.
C: N phase installed current tripper, and N phase operated with other 3 phases. D: N phase installed current tripper, and N phase connected always, Not operated with other 3 phases. |
|
Q
|
Wiring way:
Front of plate wiring: Q
Rear of plate wiring: H
Plug-in type wiring: R
|
|
Type
|
Frame class rated current InmA
|
Rated current In(A)
|
phase number
|
Rated max
short-circuit breaking capacity code |
Rated
max short-circuit breaking capacity |
Rated
running short-circuit breaking capacity Lcs(KA) |
Operation performance
|
|
|
|
|
|
|
|
|
|
|
Live
|
No-live
|
|
|
GPM11-63
|
63
|
10,16,20,25,32,40,50,63
|
3
|
N
|
10
|
5
|
3000
|
7000
|
|
|
|
|
|
3,4
|
S
|
25
|
18
|
|
|
|
|
|
|
|
3,4
|
H
|
50
|
35
|
|
|
|
|
GPM11-100
|
100
|
16,20,25,32,40,50,63,60,100
|
3
|
N
|
35
|
25
|
3000
|
7000
|
|
|
|
|
|
3,4
|
S
|
50
|
35
|
|
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
|
GPM11-160
|
160
|
100,125,140,160
|
3
|
N
|
35
|
25
|
1500
|
6500
|
|
|
|
|
|
3,4
|
S
|
50
|
35
|
|
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
|
GPM11-225
|
225
|
100,125,140,160,180,200,225
|
3
|
N
|
35
|
25
|
1500
|
6500
|
|
|
|
|
|
3,4
|
S
|
50
|
35
|
|
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
|
GPM11-250
|
250
|
100,125,140,160,180,200,225,250
|
3
|
N
|
35
|
25
|
1500
|
6500
|
|
|
|
|
|
3,4
|
S
|
50
|
35
|
|
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
|
GPM11-400
|
400
|
225,250,315,350,400
|
3
|
N
|
35
|
25
|
1000
|
4000
|
|
|
|
|
|
3,4
|
S
|
50
|
35
|
|
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
|
GPM11-630
|
630
|
400,500,630,630,700,800
|
3
|
N
|
35
|
25
|
1000
|
4000
|
|
|
|
|
|
3,4
|
S
|
50
|
35
|
|
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
|
GPM11-800
|
800
|
630,700,800
|
3,4
|
S
|
50
|
35
|
1000
|
4000
|
|
|
|
|
|
3,4
|
H
|
65
|
50
|
|
|
|
