- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
weikay
-
Model Number:
-
PG1501D-LT
-
Max. Current:
-
10mA
-
Certification:
-
ROHS
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
weikay
-
Model Number:
-
PG1501D-LT
-
Max. Current:
-
10mA
-
Certification:
-
ROHS

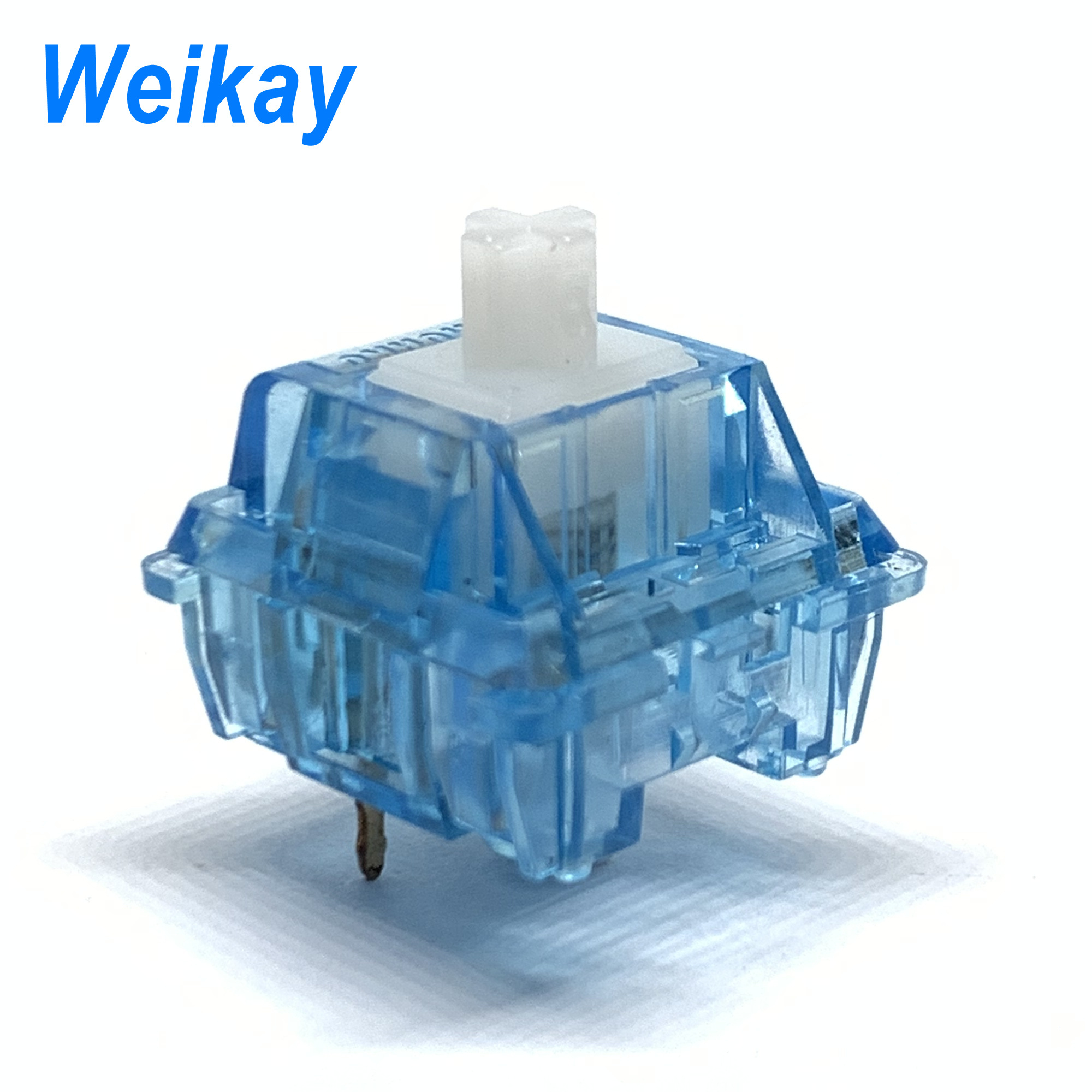

Product Description
Specification
|
I.Rating:12 VAC/DC max.2 VDC min. 10mA AC/DC max.10u A DC min.
2.Contact Resistance:200mMax
3.Insulation Resistance:100MQ Min(DC100V)
4.Withstand Voltage:AC500V(50-60Hz) for 1 minute 5.Bounce Time:≤5msec(at 16 in/sec. actuation speed) 6.OperationForce:62±5gf
7.Pressure Point Force:68+5gf 8.Pretravel:2.0mm±0.4mm
9.Total travel:4.0+0/-0.4mm
10.Operating Life:50,000,000Cycles(min)
11.Protection class:IP40
|
|
|
|
|
|
|
|
|
|
|
Packing & Delivery
Plastic Bag Packing: 500pcs per bag, one box of two bags
Packing in carton: 1 box 1000PCS
Carton Packing: 10000PCS, 10 boxes per box
