Quick Details
-
Specification:
-
D:80mm, L:10m
-
Length:
-
D:75mm - 750mm(3.5''-30'')
-
Thickness:
-
132~ 135 micron
-
Standard:
-
5m, 6m, 7.5m, 10m
-
material of duct:
-
pvc/aluminum/spring steel ring
-
Temperature Range:
-
-30 °C/+150 °C
-
Fire resistance:
-
yes
-
Operating Pressure:
-
3000 Pa
-
application:
-
air conditioner,air conditioning
-
shape:
-
round ,oval
-
color of pvc:
-
grey,black ,white
-
desgin:
-
new design
-
compare rate:
-
1:8
-
free samples:
-
available
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
QianJing
-
Model Number:
-
XY-201
-
Specification:
-
D:80mm, L:10m
-
Length:
-
D:75mm - 750mm(3.5''-30'')
-
Thickness:
-
132~ 135 micron
-
Standard:
-
5m, 6m, 7.5m, 10m
-
material of duct:
-
pvc/aluminum/spring steel ring
-
Temperature Range:
-
-30 °C/+150 °C
-
Fire resistance:
-
yes
-
Operating Pressure:
-
3000 Pa
-
application:
-
air conditioner,air conditioning
-
shape:
-
round ,oval
-
color of pvc:
-
grey,black ,white
-
desgin:
-
new design
-
compare rate:
-
1:8
-
free samples:
-
available
Production Paramenters
|
Product Code
|
XY-201/XY-202
|
|
|
Construction
|
1/2 Aluminum Foil + 1 PET+1PVC film
|
|
|
Color
|
White/Black/Grey/Brown
|
|
|
Available Diameter
|
40mm-650mm(1.5"-25")
|
|
|
Carbon Steel Wire Diameter
|
0.6mm-2.5mm
|
|
|
Standard Length
|
10m(Max)
|
|
|
Thickness
|
0.125mm-0.127mm
|
|
|
Fire Resistance
|
Limited Combustibility
(Fire Will Out Within 3 Seconds) |
|
|
Compress Ratio
|
1: 25
|
|
|
Temperature Range
|
-30℃/+150℃
|
|
|
Operating Pressure
|
2500Pa/3000Pa
|
|
|
Maximum Air Velocity
|
30m/s
|
|
|
|
||

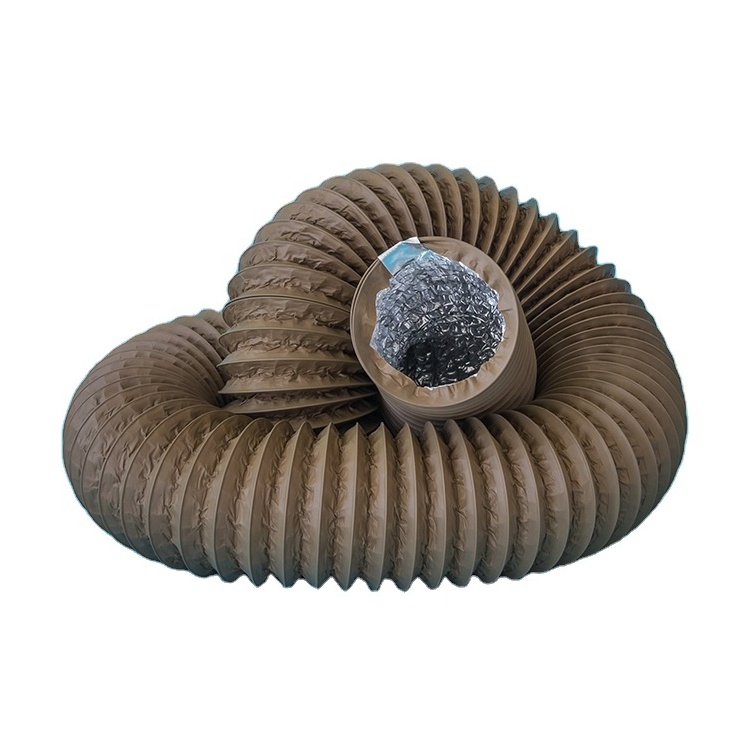

COMBI PVC Flexible Duct
Features：
1.COMBI PVC flexible duct is made of aluminum+PVC.Aluminum can be single layer 0.025mm,double layers 0.032mm.
2.No need special tools for cutting and it is easy to connect to ducting.
3.In case of fire no toxic gas are emitted, excellent resistance to chemicals.
4.The product has been successfully tested for fire resistance.
5.The product has been successfully tested for pressure.
6.Can be bent in any direction.(Small bending radius)
7.Standard length is 10 meters or as customized request.
8.Space saving, compress rate 25:1.
9.Easy installation with long service life. Ideal for using in general purpose exhaust applications.
Production Packing
|
Carton Measurement for packing(length 10m/pc)
|
|
|
|
|
||||
|
Diamter(mm)
|
PVC Duct
|
COMBI PVC Duct
|
Aluminum Duct
|
Insulated Duct
|
||||
|
75mm
|
100*100*300mm
|
100*100*900mm
|
100*100*410mm
|
150*152*1010mm
|
||||
|
102mm
|
125*125*300mm
|
130*130*450mm
|
125*125*410mm
|
182*182*1010mm
|
||||
|
125mm
|
150*150*300mm
|
150*150*450mm
|
150*150*410mm
|
200*200*1010mm
|
||||
|
152mm
|
175*175*260mm
|
180*180*410mm
|
175*175*370mm
|
230*230*1010mm
|
||||
|
165mm
|
185*185*260mm
|
190*190*410mm
|
185*185*370mm
|
240*240*1010mm
|
||||
|
203mm
|
225*225*260mm
|
230*230*410mm
|
225*225*370mm
|
280*280*1010mm
|
||||
|
254mm
|
275*275*260mm
|
280*280*410mm
|
275*275*370mm
|
330*330*1010mm
|
||||
|
305mm
|
325*325*260mm
|
330*330*410mm
|
325*325*370mm
|
380*380*1010mm
|
||||
|
315mm
|
340*340*260mm
|
340*340*410mm
|
340*340*370mm
|
390*390*1010mm
|
||||
|
355mm
|
375*375*260mm
|
380*380*410mm
|
375*375*370mm
|
430*430*1010mm
|
||||
|
405mm
|
425*425*260mm
|
430*430*410mm
|
425*425*370mm
|
480*480*1010mm
|
||||
|
455mm
|
475*475*260mm
|
480*480*410mm
|
475*475*370mm
|
530*530*1010mm
|
||||
|
505mm
|
520*520*260mm
|
530*530*410mm
|
520*520*370mm
|
580*580*1010mm
|
||||
|
555mm
|
575*575*260mm
|
580*580*410mm
|
575*575*370mm
|
630*630*1010mm
|
||||
