Corrosion Resistant Offshore Platform Reinforced Floor FRP Grating
FRP grating is a type of plate material with certain open area.It is made of unsaturated polyester resin and glass fiber roving. The glass fiber roving is intersected weaving at the mold and then pour polyester resin to form the molded grating. The glass fiber roving and polyester resin mixed together to maximize the corrosion resistance performance. Different content of color pigments are added to form transparent, half transparent and non-transparent molded gratings.
|
Properties
|
Corrosion Resistant,Slip Resistant
|
|
|
||
|
|
High Strength to Weight Ratio,High load capacity
|
|
|
||
|
|
Long Service Life,Bi-directional Strength(Equally Strong in Both Directions)
|
|
|
||
|
|
Lightweight,an Alternative to Steel Grating
|
|
|
||

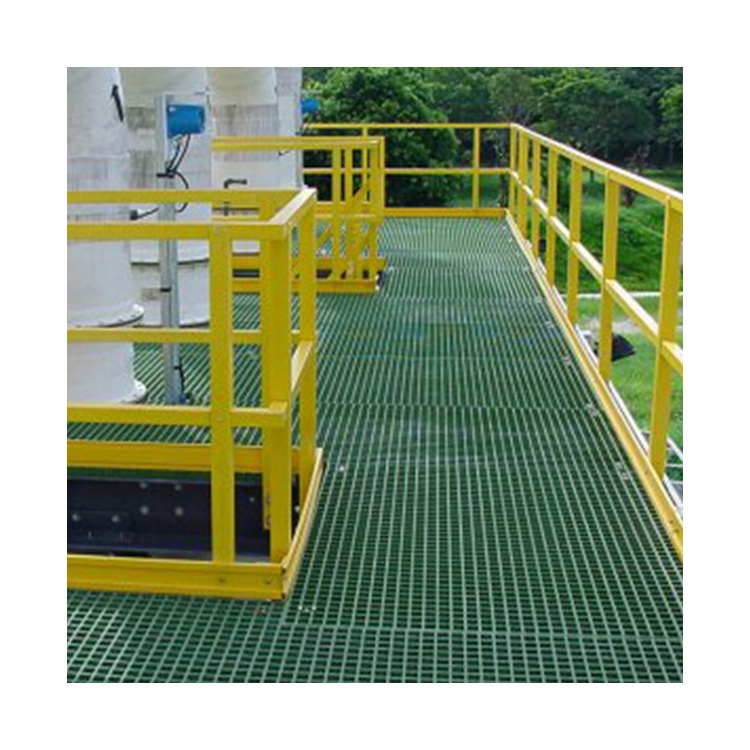

FRP grating is widely used in industrial, public and residences for drainage, ventilation and protecting as trench cover, walking stair treads,fence or platform.Especially in chemical industry, paper industry, power plant, sewage treatment plant, food processing plant, smelter, mine, salt field, nuclear power plant, battery factory,etc.
--------------------------------------Main Size Parameter----------------------------------
Thickness:25mm
Open Rate:70%
Mesh Size:38x38mm
Panel Size:1.22x3.66m
Weight:12.6KGS/M
2
TOP:Smooth or gritted or covered
Thickness:25mm
Open Rate:68%
Mesh Size:25x100mm
Panel Size:1.22x3.66m
Weight:13.05KGS/M
2
TOP:Smooth or gritted or covered
Thickness:30mm
Open Rate:68%
Mesh Size:38x38mm
Panel Size:1.22x3.66m
Weight:15.9KGS/M
2
TOP:Smooth or gritted or covered
Thickness:38mm
Open Rate:68%
Mesh Size:38x38mm
Panel Size:1.525x4m
Weight:19.5KGS/M
2
TOP:Smooth or gritted or covered
Thickness:38mm
Open Rate:46%
Mesh Size:25x100mm
Panel Size:1.22x3.745m
Weight:21.7KGS/M
2
TOP:Smooth or gritted or covered
Thickness:40mm
Open Rate:66%
Mesh Size:40x40mm
Panel Size:1.527x4.047m
Weight:21.43KGS/M
2
TOP:Smooth or gritted or covered
Thickness:50mm
Open Rate:71%
Mesh Size:50x50mm
Panel Size:1.525x4m
Weight:23.43KGS/M
2
TOP:Smooth or gritted or covered
Thickness:50mm
Open Rate:40%
Mesh Size:25x50mm
Panel Size:1.22x1.83m
Weight:47KGS/M
2
TOP:Smooth or gritted or covered
