Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
cmorsun
-
Model Number:
-
HB12
-
Operation type:
-
Momentory
-
Product name:
-
Power Button Switch
-
Color:
-
Red
-
Head shape:
-
Ball Head
-
Terminal type:
-
Pin Teminal
-
Product type:
-
Mini Push Button Swicth
-
Application:
-
Electrical Appliance
-
Material:
-
Aluminum
-
Certificate:
-
CE RoHS
-
Function:
-
Momentary 1NO1NC
-
Certification:
-
ce
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
cmorsun
-
Model Number:
-
HB12
-
Operation type:
-
Momentory
-
Product name:
-
Power Button Switch
-
Color:
-
Red
-
Head shape:
-
Ball Head
-
Terminal type:
-
Pin Teminal
-
Product type:
-
Mini Push Button Swicth
-
Application:
-
Electrical Appliance
-
Material:
-
Aluminum
-
Certificate:
-
CE RoHS
-
Function:
-
Momentary 1NO1NC
-
Certification:
-
ce
Product Description

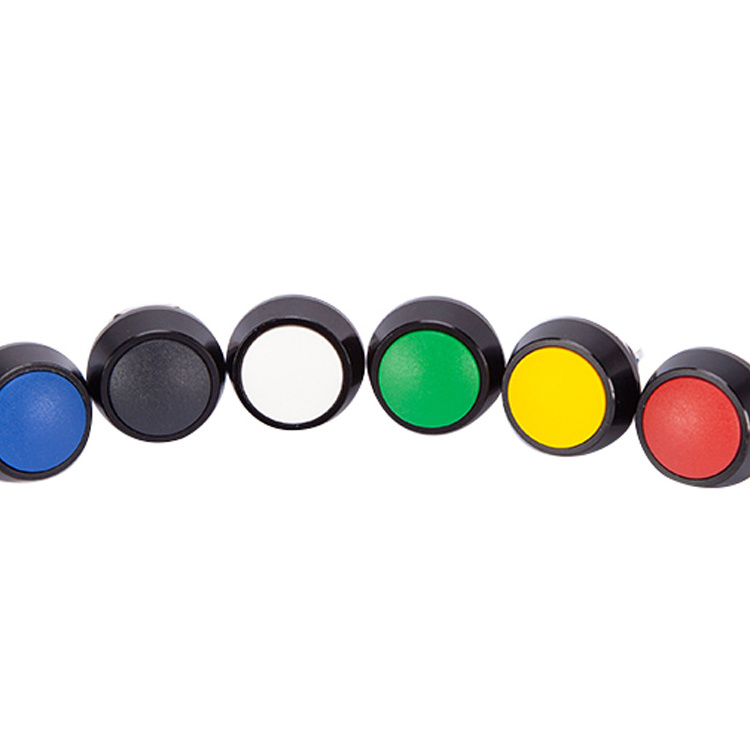

PBS 12mm 220v Round Waterproof Ip67 Metal Push Button Momentary push button Switch
|
Rating value
|
3A 250VAC 3A 125VAC
|
|
Mechanical life
|
≥500,000 times
|
|
Electrical life
|
≥200,000 times
|
|
Contact resistance
|
<50MΩ
|
|
Insulation resistance
|
≥100MΩ
|
|
Withstand Voltage
|
1000V 50/60Hz last for 1min
|
|
Base material
|
PBT,Zn Alloy,Brass,Stainless Steel
|
|
Ambient temperature
|
-25°c~+80°c
|
|
Vibration
|
10~55Hz 1.5mm Double Amplitude
|
|
Operating force
|
<6N
|
|
Wiring
|
welding, Epoxy seal
|
|
Dimensions
|
Diameter:Φ12.0mm+0.2
|
|
Installation
|
Bushing mount
|
|
Waterproof grade
|
IP67
|
