Quick Details
-
Output Power:
-
7kW/11KW/22KW
-
Input Voltage:
-
90V-265V/380V
-
Product name:
-
AC EV Charger Pile
-
Application:
-
Charging Electric Car Charging
-
Certificate:
-
CE REACH FCC RoHS UL
-
Warranty:
-
2 Years
-
Cable length:
-
5 Meters, support custom
-
IP Grade:
-
IP 67
-
Installation:
-
Wall/groundmounting
-
Function:
-
Energy Vehicle Charging
-
Advantage:
-
APP Control RFID Card Optional
-
MOQ:
-
1piece
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
YL- MB206 MB207 MB212
-
Brand Name:
-
CF
-
Output Power:
-
7kW/11KW/22KW
-
Input Voltage:
-
90V-265V/380V
-
Product name:
-
AC EV Charger Pile
-
Application:
-
Charging Electric Car Charging
-
Certificate:
-
CE REACH FCC RoHS UL
-
Warranty:
-
2 Years
-
Cable length:
-
5 Meters, support custom
-
IP Grade:
-
IP 67
-
Installation:
-
Wall/groundmounting
-
Function:
-
Energy Vehicle Charging
-
Advantage:
-
APP Control RFID Card Optional
-
MOQ:
-
1piece
Recommend Products
Product Description

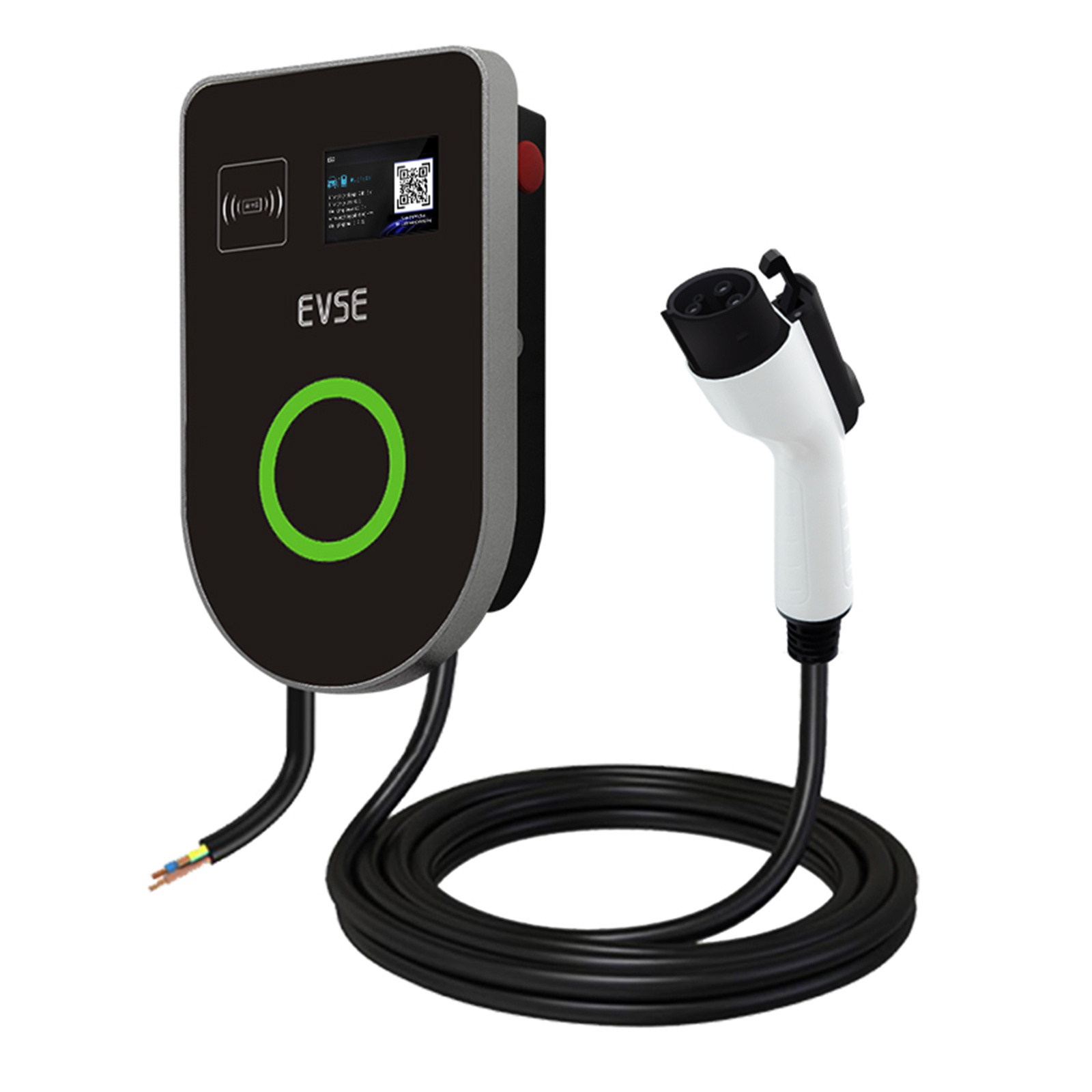

home wallbox Type1 7.6KW 32a 11.5KW 48 Amp EV Charger Stations Fast Charging Station For Electrical Car
Product Parameters
|
Appearance
structure
|
Name
|
AC 32A RFID Indicator B* Ev Charger
|
|
||
|
|
Model
|
RFID to Charge
|
|
||
|
|
Enclosure
|
Charging Gun PC9330 /Control Box ABS/Glass style
|
|
||
|
|
Size
|
Charging Gun 230*98*58mm/Wall Box 268*228*100mm【H*W*D】
|
|
||
|
|
Installation Method
|
Wall -Mounted/Column
|
|
||
|
|
Install Components
|
Column( Option* )
|
|
||
|
|
Power Direction
|
Input(Down) & Output(Down)
|
|
||
|
|
Net Weight
|
About 5KG
|
|
||
|
|
Cable Size
|
3 * 6mm²+0 . 7 5mm²
|
|
||
|
|
Cable Length
|
5M or Negotiation
|
|
||
|
Electrical index
|
Input Voltage
|
AC90V-265V
|
|
||
|
|
Input Frequency
|
50Hz / 60Hz
|
|
||
|
|
Max Power
|
7KW
|
|
||
|
|
Output Voltage
|
AC90V-265V
|
|
||
|
|
Output Current
|
32A
|
|
||
|
|
Stand by Power
|
3W
|
|
||
|
Environment index
|
Applicable scene
|
Indoor or Outdoor
|
|
||
|
|
Work Humidity
|
5％~95％(non- condensing)
|
|
||
|
|
Work Temperature
|
-30℃~+50℃
|
|
||
|
|
Work Altitude
|
＜2000M
|
|
||
|
|
Protection Class
|
Charging Gun IP6 7 / Control Box IP5 4
|
|
||
|
|
Cooling Method
|
Natural Cooling
|
|
||
|
|
Standard
|
SAE J1772
|
|
||
|
|
Flammability rating
|
UL94 V0
|
|
||
|
|
Certificate
|
UL、FCC
|
|
||
|
Functional
design
|
Interface
|
LED Indicator Light
|
|
||
|
|
Communication
|
/
|
|
||
|
Safety design
|
Over Curren Protection、Residual Current Protection、Ground Protection、Surge
Protection、Over /Under Voltage , Frequency , Temperature Protection
|
|
|
||
|
Packaging
specification
|
L *W*H:460*300*250mm【5.5KG】
|
|
|
||
We support charging piles with different power according to customer requirements
Products Details
✔For Europe market, we've got CE, ROHS, REACH for 7kw, 11kw, 22kw wallbox ev charger.
✔ For North America, we're getting UL certification of 7kw, 10kw wallbox for whole charger.
✔ Customize designs, logos, colors available even for small quantity and small business.
✔4.3 inch LED screen, Type B RCD leakage protection for ev chargers.
✔Manual available in different languages, English, Geman, Dutch, Italian, Spanish etc.
✔1 year warranty, 2 years and 3 years warranty(optional).
✔Each EV charging station is with emergency stop button.
✔ Each wallbox EV charger comes with its own MCB/OCCP.
✔ Independently designed, different from other existing models in the market.
✔ Easy installation, maintaining and stable functioning.
Can provide charging equipment that meets the following standards
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA, Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.
The Charging piles are widely used in Residential, Wokeplace Business, Gas Station, High-speed Service Station, Parking
Lot,Household.
