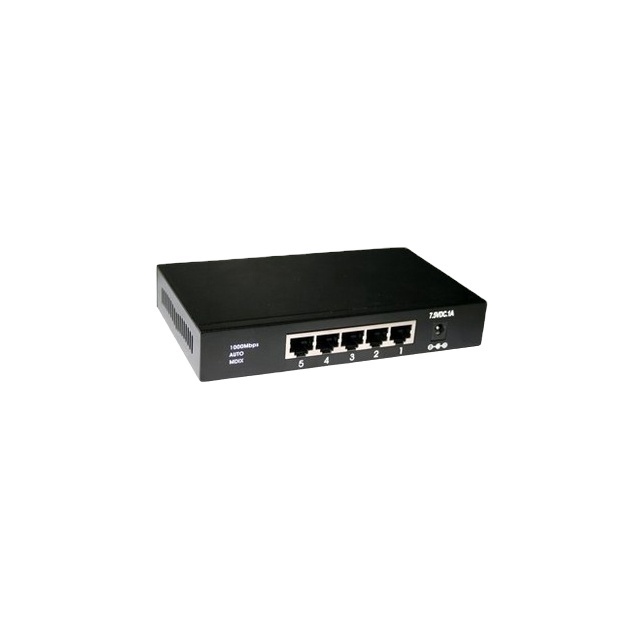

gigabyte LAN port 5 10/100/1000 switch network, poe ethernet switch, Wire-speed Performance

gigabyte LAN port 5 10/100/1000 switch network, poe ethernet switch, Wire-speed Performance

FOB Reference Price: Get Latest Price

≥1000 Sets

US $6

≥3000 Sets

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OEM

Model Number:: DLS-105TP

Place of Origin:: Guangdong, China

Certification:: CE,FCC,ROHS

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 10Gbps

Brand Name:: OEM

Model Number:: DLS-105TP

Place of Origin:: Guangdong, China

Certification:: CE,FCC,ROHS

Specification

Standards and Protocols	IEEE802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP
Basic Function	Wire-speed Performance
		MAC Address Auto-Learning and Auto-aging
		IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth	10Gbps
MAC Address Table	1k
Forwarding Rate	10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port 1000BASE-T: 1488000pps/port
Transmission Method	Store-and-Forward
Ports	5 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators	Power, Link/Act (100M, 1000M)
Safety & Emission	FCC, CE
Dimensions (WDH)	6.54.31.1 in. (16510828 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Power	External Power Adapter

poe ethernet switch
20 pcs/carton

Q: Cannot log in to the web UI of the router, what should I do?
A: Try the following solutions and log in again:
Ensure that your Ethernet cable with internet connectivity is plugged into the WAN port of the router rather than a LAN port.
Ensure that your wireless device is connected to the router's SSID.
Ensure that your wired device is connected to port 1, 2 or 3/IPTV of the router properly by Ethernet cable. And the device is also
set to Obtain an IP address automatically and Obtain DNS server address automatically.
Replace the web browser and log in again.
Reset the router and log in again.
Q: Cannot access the internet after the configuration, what should! do?
A: Log in to the web UI of the router, and check your router's connection status on the Status page.
If your router is connected to the internet successfully, try connect your wireless devices to the WiFi network of the router
using the new WiFi name and password.
If Connection failed appears on the page:
— Click WAN Settings on the web UI to check whether the connection type and parameters you entered are correct.
And connect the Ethernet cable with internet connectivity to your computer directly.
If your computer cannot access the internet, consult your ISP. Otherwise, reconnect the Ethernet cable with internet connectivity
to your router, reset your router and configure it again.
Q: Why all the indicators are off?
A: Check the following:
The connection between the power adaptor and the power socket.
The status of the power switch.
Q: Why the LAN indicator is off?
A: Check the following:
The connection between the router and your computer, hub, or switch.
The running status of your PC, hub, or switch.
Q: How to load the default settings after incorrect configuration?
A: To restore the factory default settings, turn on the device, and press the reset button for about 1 second, and then release
it. The default IP address and the subnet mask of the DSL router are 192.168.1.1 and 255.255.255.0, Please find default user name
and password on the sticker of device bottom.
