Color: black (or according to your need) Bearing brand: NSK,UBC
Application:
bars,solid pipe,solid tube
Certification:
ISO 9001-2008, CE Warranty: 12 months
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FEDA
-
Voltage:
-
380V 3P 50Hz
-
Power:
-
5.5HP (4KW)
-
Dimension(L*W*H):
-
1500*1380*1140 mm
-
Weight:
-
1700
-
Product name:
-
Grape leaves rolling machine
-
Outside diameter of rolling die:
-
135mm-170mm
-
Max.length of thread rolled:
-
In feed or Thru feed
-
Inside diameter of rolling die(keyway):
-
54mm
-
Diameter for the threads rolled:
-
4-42mm
-
Min.center distance between die spindles:
-
120mm
-
Thickness of rolling die:
-
110mm
-
Range of pitch rolled:
-
0.7-3.5P
-
Hydraulic motor:
-
3HP (2.2KW)
-
Spindle speed:
-
36/47/60/78rpm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Application:
-
Bars,solid pipe,solid tube
-
Production Capacity:
-
5-35 pcs/min
-
Brand Name:
-
FEDA
-
Voltage:
-
380V 3P 50Hz
-
Power:
-
5.5HP (4KW)
-
Dimension(L*W*H):
-
1500*1380*1140 mm
-
Weight:
-
1700
-
Product name:
-
Grape leaves rolling machine
-
Outside diameter of rolling die:
-
135mm-170mm
-
Max.length of thread rolled:
-
In feed or Thru feed
-
Inside diameter of rolling die(keyway):
-
54mm
-
Diameter for the threads rolled:
-
4-42mm
-
Min.center distance between die spindles:
-
120mm
-
Thickness of rolling die:
-
110mm
-
Range of pitch rolled:
-
0.7-3.5P
-
Hydraulic motor:
-
3HP (2.2KW)
-
Spindle speed:
-
36/47/60/78rpm
Product Overview

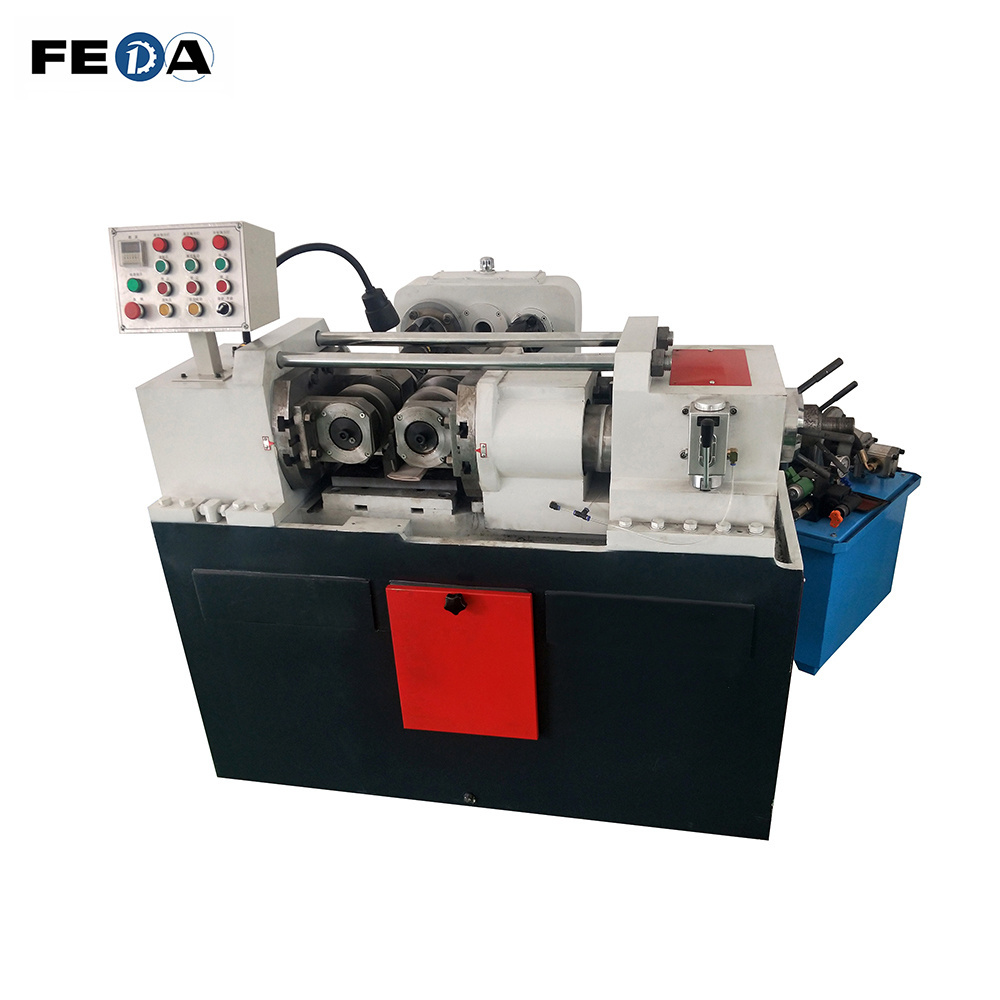

FD-25E FEDA Thread Rolling Machine
2. Speed is adjutable for different products
3. 54mm hole diamter for SKD11 thread rolling dies
4. Max. Rolling pressure is about 150KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
|
Working diameter
|
5-40mm
|
|
|
|
Thread pitch
|
0.7-3.5mm
|
|
|
|
Thread length
|
In feed or Thru feed
|
|
|
|
Spindle speed
|
36/47/60/78rpm
|
|
|
|
Outside diameter of rolling die
|
135-170mm
|
|
|
|
Inside diameter of rolling die
|
54mm
|
|
|
|
Thickness of rolling die
|
110mm
|
|
|
|
Min.center distance between die spindles
|
120mm
|
|
|
|
Max.center distance between die spindles
|
240mm
|
|
|
|
Output(pcs/min)
|
5-35 pcs/min
|
|
|
|
Machine motor
|
5.5HP (4KW)
|
|
|
|
Hydraulic motor
|
3HP (2.2KW)
|
|
|
|
Max. Rolling pressure
|
15T
|
|
|
|
Supply voltage
|
380V 3P 50Hz
|
|
|
|
Weight(reference)
|
1700(KG)
|
|
|
|
Package Dimension(L*W*H)
|
1600*1480*1240 mm
|
|
|
|
Dimension(L*W*H)
|
1500*1380*1140 mm
|
|
|
If you want to know more, please contact us, we will answer patiently all your questions!
Email:
jeff@szfeda.com
Website:
www.szfeda.com
Skype:
adolph168
Whatsapp/Wechat/Phone:
+86 13612982050
Sincerely wish us a happy cooperation!
