Quick Details
-
Model Number:
-
2W040-10
-
Brand Name:
-
YXPC
-
Product name:
-
solenoid valve gas lpg
-
Model:
-
2W040-10
-
Way and position:
-
2 position 2 way
-
Body material:
-
Brass ,stainless steel
-
solenoid coil:
-
leading wire type
-
Pressure:
-
0.1~1.0Mpa
-
working mode:
-
direct acting
-
working medium:
-
air ,water ,oil ,gas
-
Coil Voltage:
-
12v 24v 110v 220v DC
-
mounting way:
-
PIPE thread
Quick Details
-
Port Size:
-
G3/8"
-
Warranty:
-
one year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W040-10
-
Brand Name:
-
YXPC
-
Product name:
-
solenoid valve gas lpg
-
Model:
-
2W040-10
-
Way and position:
-
2 position 2 way
-
Body material:
-
Brass ,stainless steel
-
solenoid coil:
-
leading wire type
-
Pressure:
-
0.1~1.0Mpa
-
working mode:
-
direct acting
-
working medium:
-
air ,water ,oil ,gas
-
Coil Voltage:
-
12v 24v 110v 220v DC
-
mounting way:
-
PIPE thread

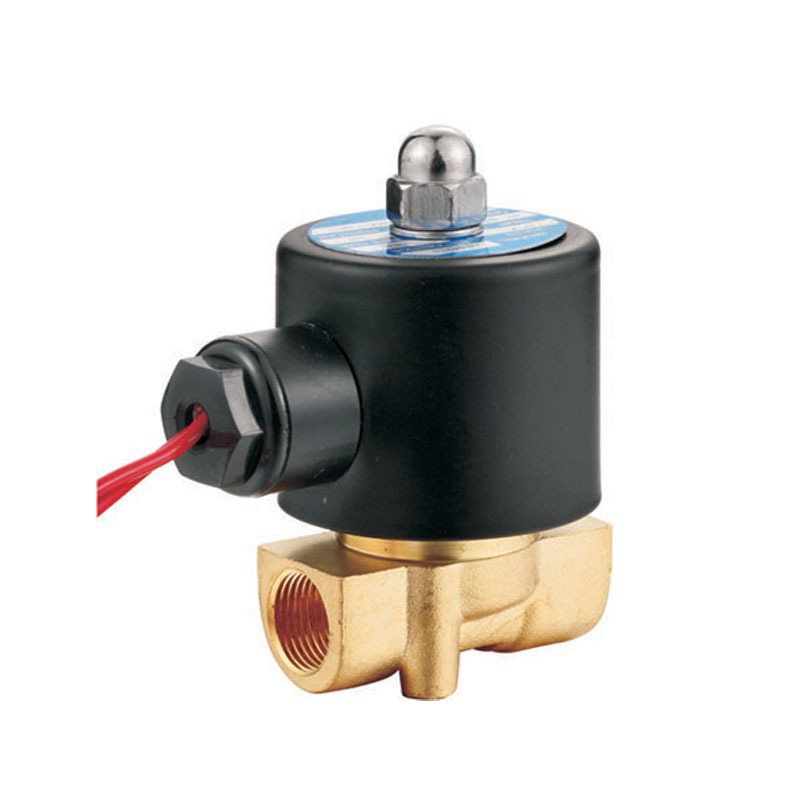

Product Description
factory direct supply 220 volt normally closed brass normally closed 3/8 port 2w solenoid valve gas lpg shut off
1)Brass valve body
2)Water and gas universal
3)Water saving energy saving
4)Big flow rate, Refuse to leak
5)Copper core coil, ,long service life
6)Stainless steel armature ,forging forming valve body
7)Suitable for all kinds of occasions and working environments, flow control, liquid control,gas control
8) Provide explosion-proof solenoid coil and water-proof coils .
9) normally closed or normally open
9) normally closed or normally open
|
Product name
|
solenoid valve gas lpg
|
|
model
|
2W040-10
|
|
working mode
|
direct acting
|
|
air medium
|
Air, Water, Oil ,gas
|
|
Orifice
|
4mm
|
|
2way and position
|
2/2 way
|
|
pipe size
|
G 3/8"
|
|
Coil voltage
|
12VDC,24VDC,110VAC,220VAC,380VAC
|
|
Viscosity limit
|
Under 20CST
|
|
material of body
|
Brass or stainless steel
|
|
CV valve
|
0.6
|
|
working pressure
|
0.15Mpa~1.0Mpa
|
|
Operating pressure
|
Water and oil:0~5.0kgf/cm² Air,gas: 0~7.0kgf/cm²
|
|
initial status
|
normally closed
|
|
Working temperature
|
5~80℃
|
|
thread type
|
Female thread
|
|
seal material
|
NBR,EPDM,VITON
|
Dimension size
