Quick Details
-
Product name:
-
Motor Electric Commutator
-
Type:
-
Commutator
-
Size:
-
Customers' Requirement
-
Color:
-
Specifications
-
Quality:
-
Drawing Standard
-
Commutator Type:
-
Hook type/Raiser type
-
Application:
-
Apply To Automotive Industry, And Other Motors.
Quick Details
-
Place of Origin:
-
ZHEJIANG
-
Brand Name:
-
NIDE
-
Model Number:
-
NDPJ-HXQ-2
-
Product name:
-
Motor Electric Commutator
-
Type:
-
Commutator
-
Size:
-
Customers' Requirement
-
Color:
-
Specifications
-
Quality:
-
Drawing Standard
-
Commutator Type:
-
Hook type/Raiser type
-
Application:
-
Apply To Automotive Industry, And Other Motors.
Custom Motor Electric Commutator
Nide produces more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.
Technical requirement of commutator:
1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.
2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.
3. Insulation resistance: 500V, more than 50MΩ
Technical parameter of commutator:
|
Materials |
0.03% or 0.08% sliver copper or customized |
|
Dimension |
Customized |
|
Commutator type |
Hook type/Raiser type |
|
Application |
apply to automotive industry, power tools, household appliances, and other motors |
|
Package |
Suitable for land and sea transportation |
|
Production capacity |
1000000pcs/month |
Product advantages:
High dielectric strength between chips,
no breakdown or flicker occurs;
insulation resistance ≥ 100MΩ,
AC frequency at 50HZ / 60HZ,
excellent electrical and mechanical properties,
stable structure,
high dimensional accuracy,
small uniform angular error of commutator,
high product hardness ,
Good abrasion resistance,
high tensile strength,
stable thermal performance and long service life.

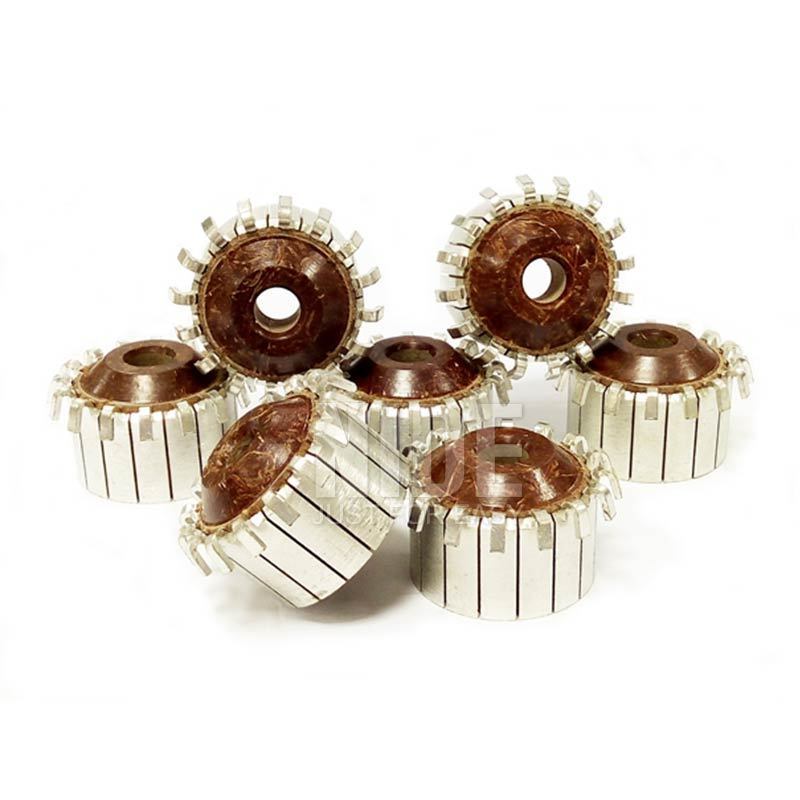

Picture show:
NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
