Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
4200*1100*1650mm
-
Weight:
-
850 KG
-
Certification:
-
CE Certification
-
Warranty:
-
1 Year
-
Model No.:
-
LC-5070PV+UV
-
Machine Name:
-
Automatic plane screen printer with UV dryer
-
Application area:
-
paper, PVC card, PCB, Paper PVC Sheet Bags Cosmetics Package etc
-
Workbench Area:
-
600*800mm
-
Max Print Area:
-
500*700mm
-
Max Screen Size:
-
1050*1150mm
-
Air pressure:
-
6 Bar
-
Printing Speed:
-
500-1200pcs/hr
-
UV dryer belt:
-
900*3000mm(WxL)
-
UV dryer power supply:
-
380V,50HZ
Quick Details
-
Condition:
-
New
-
Color & Page:
-
one or multi color
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
4200*1100*1650mm
-
Weight:
-
850 KG
-
Certification:
-
CE Certification
-
Warranty:
-
1 Year
-
Model No.:
-
LC-5070PV+UV
-
Machine Name:
-
Automatic plane screen printer with UV dryer
-
Application area:
-
paper, PVC card, PCB, Paper PVC Sheet Bags Cosmetics Package etc
-
Workbench Area:
-
600*800mm
-
Max Print Area:
-
500*700mm
-
Max Screen Size:
-
1050*1150mm
-
Air pressure:
-
6 Bar
-
Printing Speed:
-
500-1200pcs/hr
-
UV dryer belt:
-
900*3000mm(WxL)
-
UV dryer power supply:
-
380V,50HZ
product information

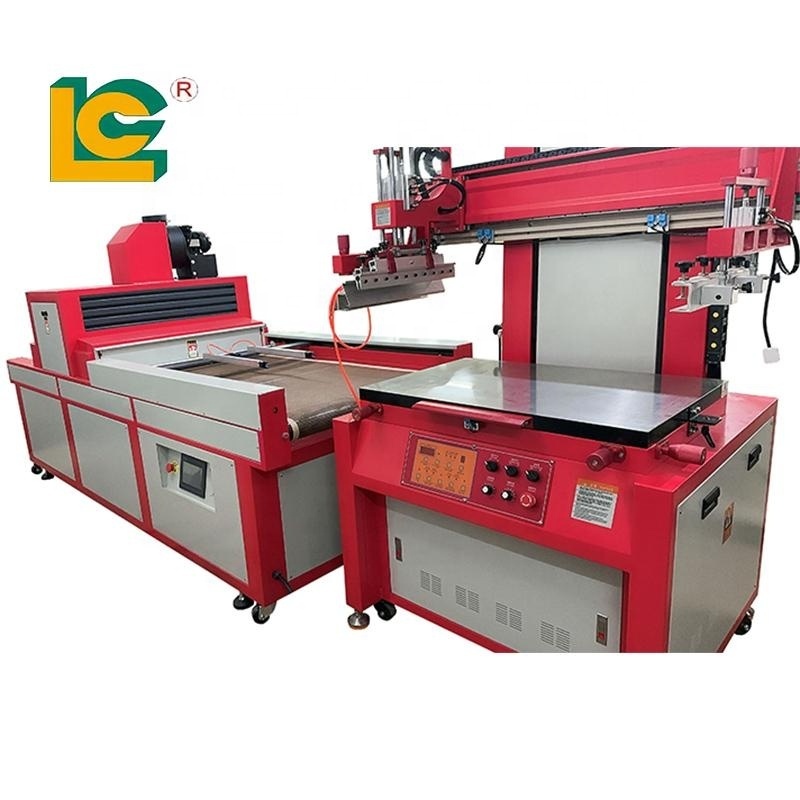

Automatic Flatbed Screen Printer Machine With UV Dryer For Paper PVC Sheet Bags Cosmetics Package LC-5070PV+UV
This machine loading by hand, then automatic screen printing, with mechanical arm can uloading the product from screen printer to UV curing machine.
Application Scope:
The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is
widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting,
computer keyboard, new year picture, transfer paper, label-bond, credit card. Add UV curing machine, can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder.
Machine parameter:
Flat screen printing machine parameter as below :
1.Model name: LC-5070PV
2.Product Max height:50 mm
3.Air supply: 45 Liter/Min
4.Working table dimension:600*800 mm
5.Max Frame dimension:1050*1150 mm
6.Max printing area:500*700mm
7.Max printing speed:800 PCS/h
8.Max Stroke of up-and-down frame:200mm
9.Max stroke of Squeegee:600mm
10.Squeegee motor wattage:200W
Automatic flatbed screen printing machine(Tip: We can manufacture according to customer's requirement.)
Welcome to send inquiry to our sales manager!
UV dryer(Tip: We can manufacture according to customer's requirement.)
1. Model NO. TM-9000UVF
2. Max products width:9000mm
3. Max product length:3000mm
4.Conveyor belt size:L3000* W9000MM
5. UV Lamp power:2PCS*8KW /380V
6. Total wattage:26KW
7. Wind fan wattage: 500W/380V
8. motor wattage:1000W/1P/380V
9. Conveyor speed:0~10m/min
10. Speed change ways:Continue
11.UV Machine Dimension:L*W*H4020*1050*1450
12. Weight:380kg
Machine detail pictures:
Application Scope:
The major parts are imported components, so as to ensure the precision of the machine and the quality stability. This machine is
widely used in printing of cigarette, wine, gifts, and cosmetics package, printing of trademark, wall calendar, oil painting,
computer keyboard, new year picture, transfer paper, label-bond, credit card. Add UV curing machine, can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder.
Machine parameter:
Flat screen printing machine parameter as below :
1.Model name: LC-5070PV
2.Product Max height:50 mm
3.Air supply: 45 Liter/Min
4.Working table dimension:600*800 mm
5.Max Frame dimension:1050*1150 mm
6.Max printing area:500*700mm
7.Max printing speed:800 PCS/h
8.Max Stroke of up-and-down frame:200mm
9.Max stroke of Squeegee:600mm
10.Squeegee motor wattage:200W
Automatic flatbed screen printing machine(Tip: We can manufacture according to customer's requirement.)
Welcome to send inquiry to our sales manager!
UV dryer(Tip: We can manufacture according to customer's requirement.)
1. Model NO. TM-9000UVF
2. Max products width:9000mm
3. Max product length:3000mm
4.Conveyor belt size:L3000* W9000MM
5. UV Lamp power:2PCS*8KW /380V
6. Total wattage:26KW
7. Wind fan wattage: 500W/380V
8. motor wattage:1000W/1P/380V
9. Conveyor speed:0~10m/min
10. Speed change ways:Continue
11.UV Machine Dimension:L*W*H4020*1050*1450
12. Weight:380kg
Machine detail pictures:
