Quick Details
-
Model Number:
-
big diameter layflat hose
-
Specification:
-
10-15"
-
Length:
-
50-200M, according to customer requirements
-
Thickness:
-
3mm-10mm
-
Standard:
-
CE/ISO
-
Product name:
-
Large Diameter TPU Layflat Hose
-
Color:
-
red/orange/blue/black/white/yellow etc.
-
MMQ:
-
1000 meters
-
Usage:
-
Agriculture Irrigation &general industrial use
-
Inner tube:
-
TPU/PVC
-
Application:
-
Agriculture Irrigation &general industrial use
-
Reinforcement:
-
High strength polyester filament
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
sanjiang
-
Model Number:
-
big diameter layflat hose
-
Specification:
-
10-15"
-
Length:
-
50-200M, according to customer requirements
-
Thickness:
-
3mm-10mm
-
Standard:
-
CE/ISO
-
Product name:
-
Large Diameter TPU Layflat Hose
-
Color:
-
red/orange/blue/black/white/yellow etc.
-
MMQ:
-
1000 meters
-
Usage:
-
Agriculture Irrigation &general industrial use
-
Inner tube:
-
TPU/PVC
-
Application:
-
Agriculture Irrigation &general industrial use
-
Reinforcement:
-
High strength polyester filament
China factory TPU Material oil delivery hose lay flat air compressor polyurethane layflat hose

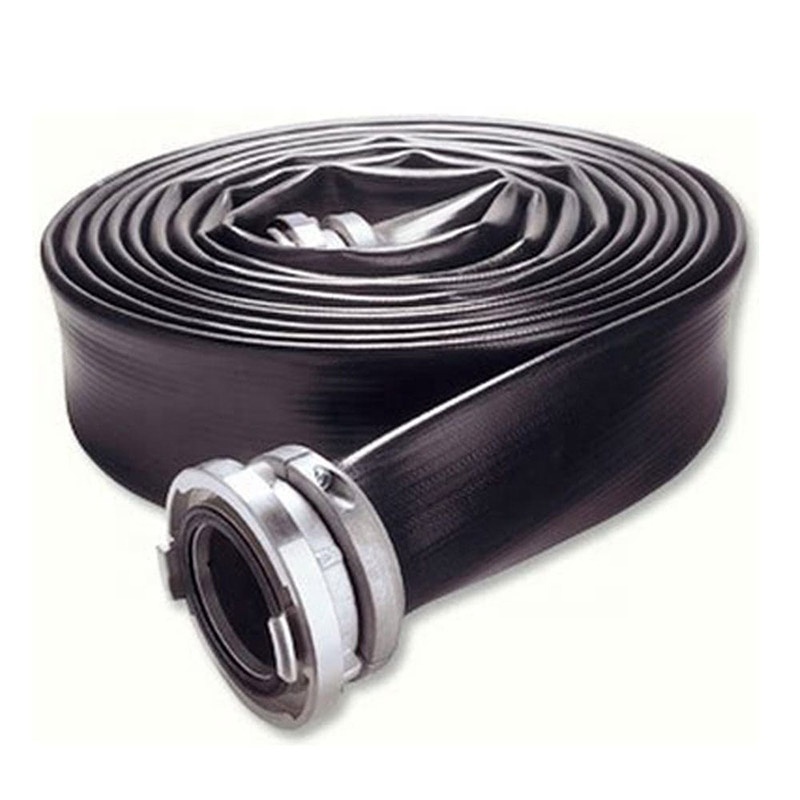

8‘’ 10‘’ 12‘’ TPU Layflat Hose pipe with large diameter High Pressure
1. Structure:
This hose is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. Production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
2. Features
Lightweight and easy to handle
High Pressure rating
Good resistance to fuel and chemicals
Easy to repair and patch
Compact storage
UV Stabilised hard wearing
Supplied with copper anti-static wire for electrical continuity
Available in different colors
3. Applications
Refueling truck, rail & ship, Fuel Terminals & Depots, Bulk Fuel Distribution, Ship to Shore transfer, Recommended for Temporarily Oil Transfer Solutions.
4. Working Temperature
-50C deg to 65C deg(-58 F deg to +85 F deg)
5. Length of per roll
Standard lengths up to 660ft (200 meters). Longer lengths available on request.
6.Specification
| Diameter | Inner Diameter | Thickness | WP | BP | Weight | Tensile Strength | |||
| inch | mm | inch | mm | psi | psi | Lb/ft | Kg/m | lbs | kg |
| 4 | 102+2.5 | 0.138 | 3.5 | 200 | 600 | 0.89 | 1.34 | 27503 | 12500 |
| 4 | 102+2.5 | 0.118 | 3 | 150 | 450 | 0.76 | 1.14 | 19802 | 9000 |
| 6 | 152+3.0 | 0.157 | 4 | 200 | 600 | 1.5 | 2.25 | 48405 | 22000 |
| 6 | 152+3.0 | 0.118 | 3 | 150 | 450 | 1.12 | 1.68 | 37404 | 17000 |
| 8 | 203+3.0 | 0.165 | 4.2 | 200 | 600 | 2.15 | 3.2 | 77000 | 35000 |
| 8 | 203+3.0 | 0.146 | 3.7 | 150 | 450 | 1.81 | 2.7 | 52900 | 24000 |
| 10 | 254+4.0 | 0.177 | 4.5 | 200 | 600 | 2.88 | 4.3 | 99200 | 45000 |
| 10 | 254+4.0 | 0.165 | 4.2 | 150 | 450 | 2.55 | 3.8 | 66100 | 30000 |
| 12 | 305+5.0 | 0.173 | 4.4 | 150 | 450 | 3.20 | 4.8 | 92600 | 42000 |
