Quick Details
-
Productivity:
-
16 M³/H
-
Place of Origin:
-
Henan, China
-
Year:
-
2021
-
Brand Name:
-
Tatooine
-
Weight:
-
1300 kg
-
Dimension(L*W*H):
-
2.8m*1.3m*1.6m
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Diesel/eEectric Concrete Pump
-
Power:
-
43 KW
-
Model:
-
ZS-35 DIESL
-
Engine type:
-
Diesel Engine Power
-
Brand:
-
Tatooine
-
Max Aggregate Size:
-
30 mm
-
SIZE:
-
2.5*1.2*1.5 m
-
Capacity:
-
8-14 m*3/h
-
Certification:
-
CE,ISO
-
Application:
-
roads, railways, tall buildings, bridges, tunnels
Quick Details
-
Power Type:
-
Diesel/Electric
-
Max. vertical conveying distance:
-
40M
-
Max. horizontal conveying distance:
-
130m
-
Productivity:
-
16 M³/H
-
Place of Origin:
-
Henan, China
-
Year:
-
2021
-
Brand Name:
-
Tatooine
-
Weight:
-
1300 kg
-
Dimension(L*W*H):
-
2.8m*1.3m*1.6m
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Diesel/eEectric Concrete Pump
-
Power:
-
43 KW
-
Model:
-
ZS-35 DIESL
-
Engine type:
-
Diesel Engine Power
-
Brand:
-
Tatooine
-
Max Aggregate Size:
-
30 mm
-
SIZE:
-
2.5*1.2*1.5 m
-
Capacity:
-
8-14 m*3/h
-
Certification:
-
CE,ISO
-
Application:
-
roads, railways, tall buildings, bridges, tunnels
Product Description
Concrete delivery pumps are widely used in compacting grouting, chemical grouting, foundation reinforcement, waterproof and plugging, soil anchor rod construction, rotary spray construction, drilling construction, tree root pile, double overflow grouting, thunderbolt grouting, etc.

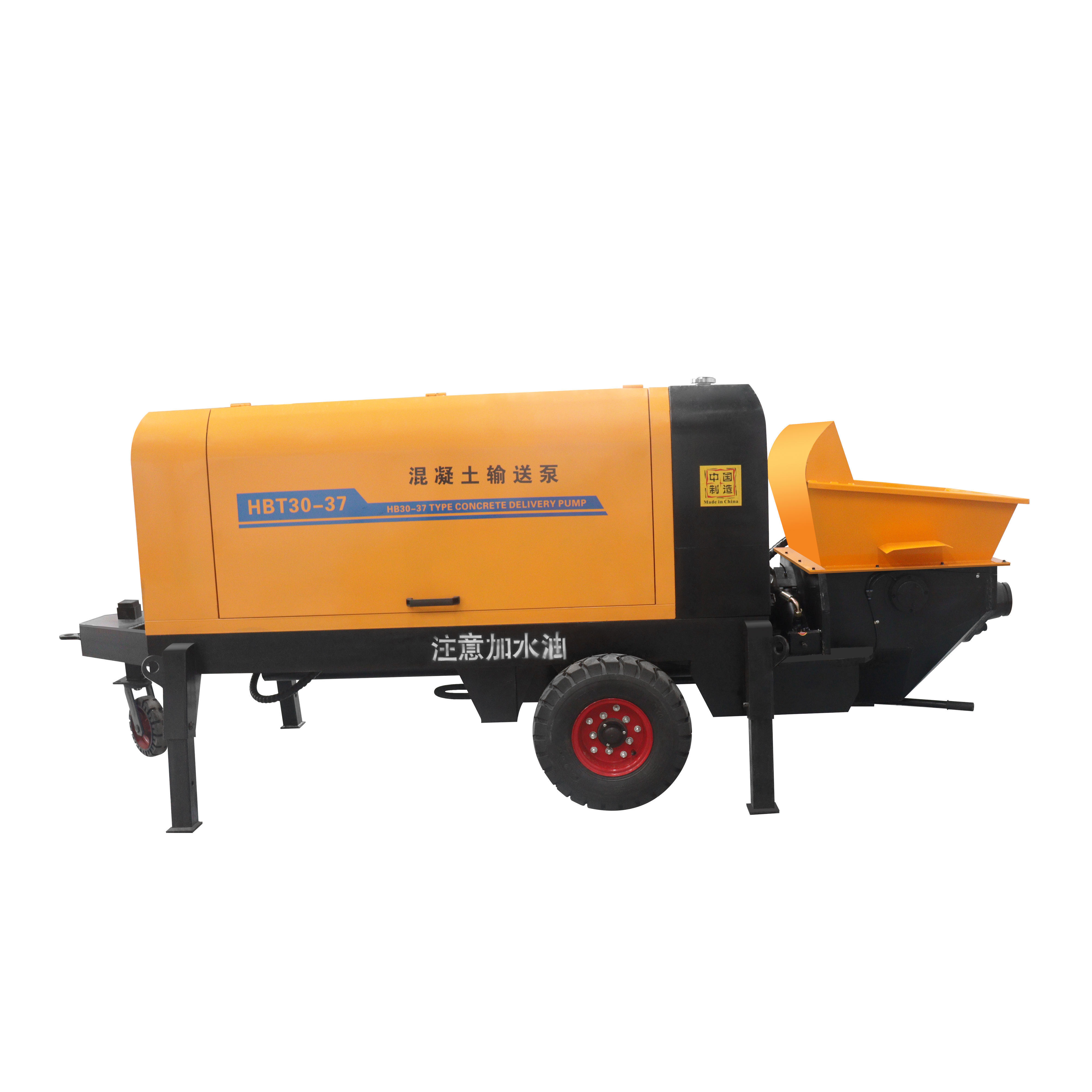

Tatooine Putzmeister Cifa Concrete Pumps 85kw Diesel Concrete Mixer Pump Trailer-mounted Concrete Pump
Specification
|
Metric dimensions specifications
|
|
|
|
|
||||
|
Model
|
XK-15
|
XK-20
|
XK-30
|
XK-37
|
||||
|
Weight (KG)
|
600
|
1000
|
1300
|
1400
|
||||
|
Aggregate size (MM)
|
＜20
|
＜20
|
＜30
|
＜30
|
||||
|
Conveying pipe diameter (MM)
|
Φ80
|
Φ80
|
Φ100/Φ80
|
Φ100/Φ80
|
||||
|
Dimension (M)
|
1.8*0.7*1.1
|
2.7*1.1*1.2
|
3.0*1.2*1.3
|
3.0*1.2*1.3
|
||||
|
Conveying height (M)
|
15-20
|
25-40
|
40-80
|
50-100
|
||||
|
Conveying distance (M)
|
40-50
|
50-80
|
80-160
|
100-200
|
||||
|
Power (KW)
|
15
|
22
|
30
|
37
|
||||
|
Theoretical efficiency (M³/H)
|
6-8
|
8-12
|
10-15
|
15-20
|
||||
|
Metric dimensions specifications
|
|
|
|
|
||||
|
Model
|
XK-45
|
XK-50
|
ZS-45 Diesel
|
ZS-50Diesel
|
||||
|
Weight (KG)
|
2300
|
2500
|
2200
|
2980
|
||||
|
Aggregate size (MM)
|
＜30
|
＜40
|
＜30
|
＜40
|
||||
|
Conveying pipe diameter (MM)
|
Φ100/Φ80
|
Φ100/Φ80
|
Φ100/Φ80
|
Φ100/Φ120
|
||||
|
Dimension (M)
|
4.7*1.5*1.6
|
4.2*1.5*1.6
|
3.6*1.2*1.5
|
4.2*1.4*1.5
|
||||
|
Conveying height (M)
|
80-150
|
100-180
|
80-120
|
100-150
|
||||
|
Conveying distance (M)
|
180-250
|
200-300
|
150-250
|
200-300
|
||||
|
Power (KW)
|
45
|
55
|
Diesel 4108 72KW
|
Diesel 6105 130KW
|
||||
|
Theoretical efficiency (M³/H)
|
20-25
|
30-40
|
18-25
|
30-40
|
||||
Product Details
Product advantage
1. The power system, hydraulic system and pumping system are reasonably matched to effectively exert the power of the motor and improve the material absorption.
2. The configuration is more optimized, and the original imported hydraulic parts and electrical components are adopted to greatly improve the reliability of the equipment. The unique distribution oil circuit buffer technology ensures that the S tube swings in place and prolongs the service life of the S tube.
3. The application of high and low voltage switching simplifies the operation mode.
4. The lubrication system adopts a forced filtration and pre-pressure dual-pump energy-saving automatic centralized oil supply system, which provides sufficient oil supply, better lubrication effect, and reduces consumption by more than 50% compared with ordinary continuous oil injection.
5. The application of new wear-resistant materials and welding technology improves the service life of commonly used wearing parts.
6.
The hydraulic system has proprietary hydraulic buffering technology, which makes the system have less reversing impact and less heating.
Tatooine Putzmeister Cifa Concrete Pumps 85kw Diesel Concrete Mixer Pump Trailer-mounted Concrete Pump
Related Accessories Display of Concrete Pump
Packing & Delivery
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient
