- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v three phase 50hz, others
-
Power:
-
6.0-8.0kw
-
Dimension(L*W*H):
-
2900*1500*1800mm
-
Weight:
-
2200 kg
Quick Details
-
Production Capacity:
-
60 pcs/Min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DUSH
-
Voltage:
-
380v three phase 50hz, others
-
Power:
-
6.0-8.0kw
-
Dimension(L*W*H):
-
2900*1500*1800mm
-
Weight:
-
2200 kg

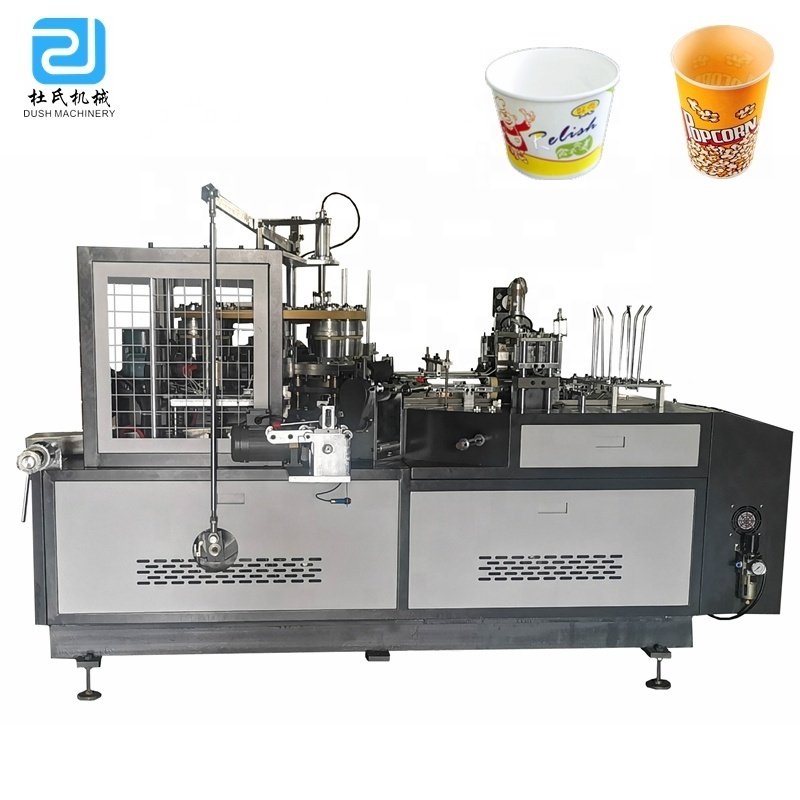

DS-L100 Paper Bowl Making Machine with Ultrasonic System
You are in : Home >> Paper Bowl Machine >>
| DS-L100 Paper Bowl Making Machine with Ultrasonic System |
| It is a developing equipment on normal ultrasonic gear box paper bowl machine. We add open cam & chains |
| cooperated,install direct bottom single plate system together with automatic lubricating oil system to support the |
| stable running of machine, which is updated equipment of producing soup bowl, bigger size paper bowl, such as |
| soup bowl, fast noodle bowl, large food cone-shaping containers etc. Then in one type machine you can produce |
| both double sides PE coated paper cups and single side for hot& cold food. Another one type machine you can |
| produce single PE coated paper cups for hot food. PE coated paper cups only exchanging the raw material. The |
| KFC super big bowl should be Made by another machine. |
|
TECHNICAL DATA |
|
| Model Name | DS-L100 |
| Suitable Size | <50oz, max top=140mm, max height=115mm, max bottom=125mm |
| Raw Material |
170-400gsm single/double PE coating/side paper, PLA paper, etc |
| Capacity | 45-55pcs/min |
| Total Power | >=7.0kw |
| Air Flow/Pressure | >0.6mpa, 0.4m 3 /min,(need to buy an air compressor) |
| N.W./G.W. | 2750/2850kg |
| Power | 380v three phase,50hz, pls consult supplier for other type. |
| Packaging | 3000*1100*1980mm |
|
MAIN CHARACTERISTICS: |
|
1-Machine is with ultrasonic sealing. |
|
2-Steel anix is Φ30mm instead of Φ25mm. |
|
3-Protective door and counting system is optional. |
|
4-Speed reducer is 1:30 100 type instead of 1:20 80 type. |
|
5-It is easy to make cups with different sizes by changing molds. |
|
6-Knurling device for bottom heating is three times power than former old type. |
|
7-Machine is open cams replace the gear box, and cooperate with auto oil lubricant system. |
|
Pingyang Dush Machinery Co., Ltd is developed in various aspects for usage of machines. F or example, the machine for |
|
coffee cups, tea cups, cold drinking cups(double sleeve), paper cups with handle, cake cups, paper plates/dishes, ripple |
|
wave papers, paper lunch boxes, tea hidden cups, hotel cups covers, paper bowls , some machines is not listed above, as |
|
tulip cups, automotive filters, filling and sealing cups, etc. I f you have great interest in these machine, please click here for |
|
all catalog to check, or send an email to Ms. Daisy Shen for enquiry. |
