Quick Details
-
Container Size(mm):
-
Dia855*1500
-
Weight:
-
266kg
-
Capacity:
-
15-37 personS
-
Shape:
-
rectangular octagon
-
Cylinder:
-
12.5Lx2
-
Type:
-
D25
-
Certificate:
-
CCS EC
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KHZD
-
Color:
-
Orange
-
Container Size(mm):
-
Dia855*1500
-
Weight:
-
266kg
-
Capacity:
-
15-37 personS
-
Shape:
-
rectangular octagon
-
Cylinder:
-
12.5Lx2
-
Type:
-
D25
-
Certificate:
-
CCS EC
[ Application]
It is suitable for installing ships on international voyages.
[Product Standard]
It meets the requirements of <<Regulations for the Statuory Surveys of Ships and Offshore Installations>>"Technical
Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages (2011)"of P.R.C. and SOLAS
74/96 Amendment, LSA and MSC18 (70)&MSC218(82)&MSC293(87)&MSC226(82)&MSC295(87)&MSC323(89).
[Equipment Outfit]
A Pack or B Pack (Ships engaged on Short international voyage)
[Inflation method]
After throw-over from ship, the life-raft can be inflated and
opened automatically.
[Max. Storage Height]
The installation height is 18- 50m from water surface.
[ Certificate ]
China classification Society (CCS) Certificate of Type Approval
Register of Fishing Vessel of P.R.C (ZY) Certificate of Type Approval
Germanischer Lloyd (GL) EC Type Examination Certificate
It is suitable for installing ships on international voyages.
[Product Standard]
It meets the requirements of <<Regulations for the Statuory Surveys of Ships and Offshore Installations>>"Technical
Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages (2011)"of P.R.C. and SOLAS
74/96 Amendment, LSA and MSC18 (70)&MSC218(82)&MSC293(87)&MSC226(82)&MSC295(87)&MSC323(89).
[Equipment Outfit]
A Pack or B Pack (Ships engaged on Short international voyage)
[Inflation method]
After throw-over from ship, the life-raft can be inflated and
opened automatically.
[Max. Storage Height]
The installation height is 18 36m from water surface.
[ Certificate ]
China classification Society (CCS) Certificate of Type Approval
Register of Fishing Vessel of P.R.C (ZY) Certificate of Type Approval
Germanischer Lloyd (GL) EC Type Examination Certificate

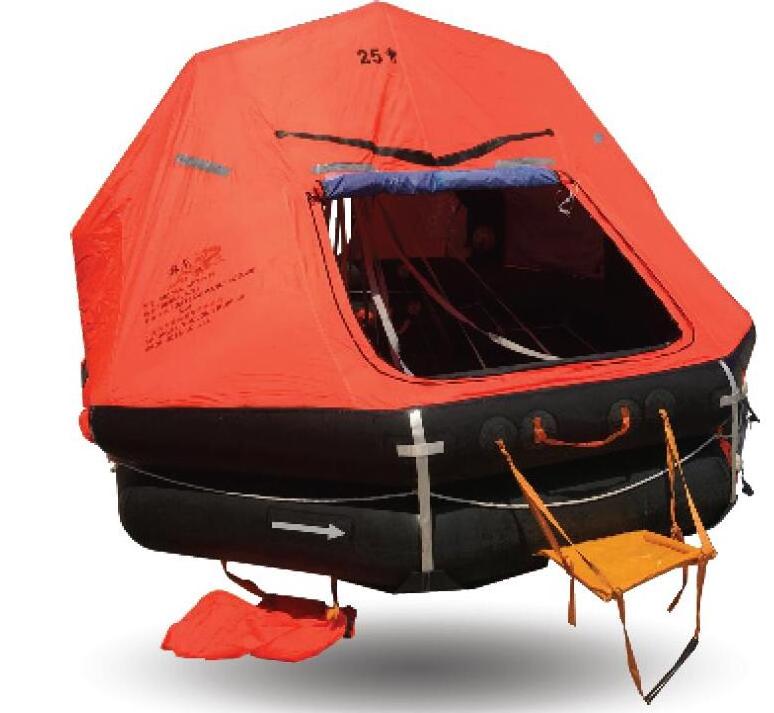

Inflatable Life Raft Series
A type Throw over board
|
D type davit- launched
|
Z type self-righting
|
| ZD type self-righting & davit-launched | R type both sides of a canopied reversible |
K type open reversible (HSC)
|
| Y type inflatable leisure liferafts ISO 9650-1 | Y(SR) type self- righting ISO 9650-1 | KHYJ type simple inflatable leisure liferafts ISO 9650-2 |
| QJF-Y type for fishing vessels | Marine evacuation systems | |
[SOLAS I nflatable Liferafts]
KHA
type throw over board inflatable liferafts,
KHD
type davit- launched inflatable liferafts,
KHZ
type self-
righting inflatable liferafts,
KHZD
type self-righting & davit-launched inflatable liferafts,
KHR
type both sides
of a canopied reversible inflatable liferafts
SOLAS I
nflatable Liferafts
are in accordance with SOLAS 74/96, MSC.81(70), LSA, MSC.218(82),
MSC.226(82),
MSC.295(87), MSC.323(89) etc. applicable in commercial ships on category I
for voyage area (ocean
voyage area).
KHK
type open reversible inflatable liferafts are manufactured in accordance
with International Code of Safety
for High Speed Craft 2000 (HSC) and can be
used in international category A High Speed Craft.
KHY
type inflatable leisure liferafts,
KHY(SR) type self- righting inflatable
leisure liferafts are manufactured in
accordance with ISO 9650-1:2005 <small
craft liferaft> .
KHYJ
type simple inflatable leisure liferafts are manufactured in accordance
with ISO 9650-2:2005 <small craft liferaft>.
QJF-Y
type inflatable liferafts for fishing vessels are manufactured in
accordance with 2000 Sea Fishing Vessels
Safe Rules and applicable in ships on
category inshore area.
Marine evacuation systems
are manufactured in accordance with SOLAS 74/96,
MSC.81(70), LSA, MSC.218(82),
MSC.295(87) and applicable in ships on category
I voyage area (ocean voyage area). And be divided into vertical chute
MES and
inclined passage MES.
