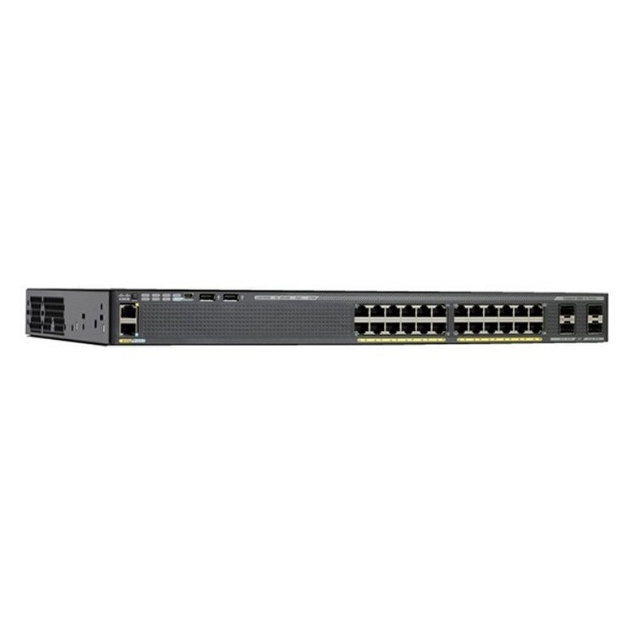

100% Original New Catalys t 2960-X 24 Port SFP Switch WS-C2960X-24TS-L

100% Original New Catalys t 2960-X 24 Port SFP Switch WS-C2960X-24TS-L

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1307.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: WS-C2960X-24TS-L

Place of Origin:: Guangdong, China

Condition:: 100% Original Brand

Warranty:: 1 Year

Feature Set:: LAN Base

Flash memory:: 128MB

DRAM:: 512MB

Certification:: CE RoHS FCC

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 216Gbps

Model Number:: WS-C2960X-24TS-L

Place of Origin:: Guangdong, China

Condition:: 100% Original Brand

Warranty:: 1 Year

Feature Set:: LAN Base

Flash memory:: 128MB

DRAM:: 512MB

Certification:: CE RoHS FCC

Product Description

Overview (WS-C2960X-24TS-L)

catalyst 2960X-24TS-L LAN Base Layer 2 stackable switch provides enterprise-class access for campus and branch applications.

Table 1 shows the Quick Spec of the 2960X-24TS-L switch.

WS-C2960X-24TS-L Specification
Product Code	WS-C2960X-24TS-L
Enclosure Type	Rack-mountable - 1U
Feature Set	LAN Base
Uplink Interfaces	4 x 1G SFP
Ports	24 x Ethernet 10/100/1000 Gigabit ports
Maximum stacking number	8
Stack bandwidth	80G
Forwarding Bandwidth	108Gbps
Switching Bandwidth	216Gbps
RAM	512MB
Flash Memory	128MB
Dimensions	44.5 cm x 27.9 cm x 4.5 cm
Package Weight	9.19 Kg

Figure 2 shows the front panel of the 2960X-24TS-L switch.

①	Ethernet management port	⑥	24*10/100/1000 ports
②	Mode button	⑦	SFP module ports
③	Switch LEDs	⑧	CONSOLE LED
④	USB mini-Type B (console) port	⑨	MGMT LED
⑤	USB Type A ports	⑩	RJ-45 console port

·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, and STACK LEDs.

Figure 3 shows the back panel of the 2960X-24TS-L switch.

①	FlexStack-Plus module slot and cover
②	Fan Exhaust
③	RPS Connector
④	AC power connector

This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.

Catalys t 2960-X Series Switches

S-N	Part Number	Description
1-1	WS-C2960X-24PS-L	Catalyst 2960-X 24 GigE PoE 370W. 4 x 1G SFP. LAN Base
1-2	WS-C2960X-24PD-L	Catalyst 2960-X 24 GigE PoE 370W. 2 x 10G SFP+. LAN Base
1-3	WS-C2960X-24TS-LL	Catalyst 2960-X 24 GigE. 2 x 1G SFP. LAN Lite
1-4	WS-C2960X-24TD-L	Catalyst 2960-X 24 GigE. 2 x 10G SFP+. LAN Base
2-1	WS-C2960X-24PSQ-L	Catalyst 2960-X 24 GigE PoE 110W. 2xSFP + 2x1GBT. LAN Base
2-2	WS-C2960X-48FPD-L	Catalyst 2960-X 48 GigE PoE 740W. 2 x 10G SFP+. LAN Base
2-3	WS-C2960X-48FPS-L	Catalyst 2960-X 48 GigE PoE 740W. 4 x 1G SFP. LAN Base
2-4	WS-C2960X-48LPD-L	Catalyst 2960-X 48 GigE PoE 370W. 2 x 10G SFP+ LAN Base
3-1	WS-C2960X-48LPS-L	Catalyst 2960-X 48 GigE PoE 370W. 4 x 1G SFP. LAN Base
3-2	WS-C2960X-48TD-L	Catalyst 2960-X 48 GigE. 2 x 10G SFP+. LAN Base
3-3	WS-C2960X-48TS-L	Catalyst 2960-X 48 GigE. 4 x 1G SFP. LAN Base
3-4	WS-C2960X-48TS-LL	Catalyst 2960-X 48 GigE. 2 x 1G SFP. LAN Lite

The Accessories

Table 2 shows some accessories of the WS-C2960X-24TS-L.

Models	Description
C2960X-STACK	Catalyst 2960-X FlexStack Plus Stacking Module
CAB-STK-E-0.5M	FlexStack Stacking Cables
GLC-LH-SM	GE SFP, LC connector LX/LH transceiver
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
CAB-CONSOLE-RJ45	Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB	Console Cable 6 ft with USB Type A and mini-B
