Quick Details
-
Application:
-
Outdoor, Construction Site
-
Rated Lifting Moment:
-
1.8
-
Span:
-
2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNDO
-
Dia. of wire rope:
-
5/6/7/8 mm
-
Color:
-
Red/ yellow/ blue or customized
-
Rate power:
-
1.5-1.7-2.2-3KW
-
Valid arm length:
-
950mm
-
Rotating arm length:
-
1160mm
-
power supply:
-
220V 50HZ
-
Lift Speed:
-
10-16M/MIN
-
Power Source:
-
Electric
-
Certification:
-
ISO
Quick Details
-
Rated Loading Capacity:
-
0-500kg
-
Max. Lifting Height:
-
120m
-
Engine Brand:
-
JNDO
-
Application:
-
Outdoor, Construction Site
-
Rated Lifting Moment:
-
1.8
-
Span:
-
2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNDO
-
Dia. of wire rope:
-
5/6/7/8 mm
-
Color:
-
Red/ yellow/ blue or customized
-
Rate power:
-
1.5-1.7-2.2-3KW
-
Valid arm length:
-
950mm
-
Rotating arm length:
-
1160mm
-
power supply:
-
220V 50HZ
-
Lift Speed:
-
10-16M/MIN
-
Power Source:
-
Electric
-
Certification:
-
ISO

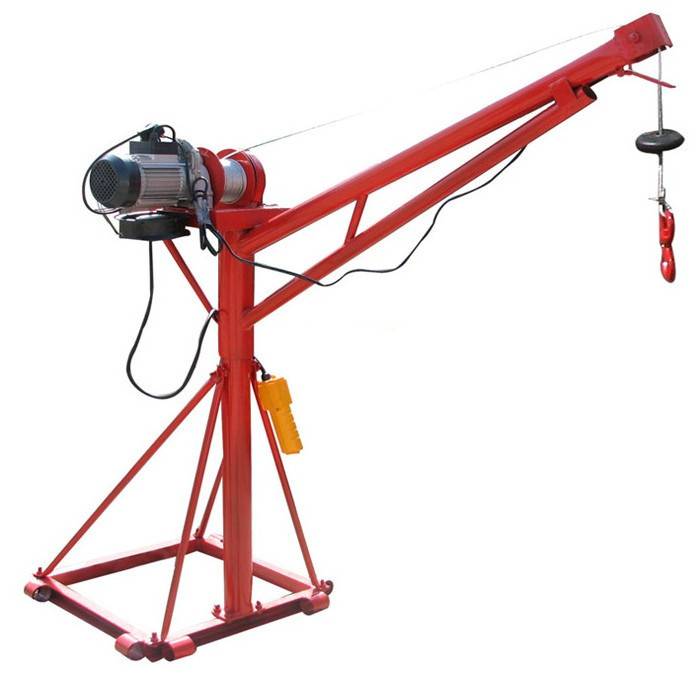

30m mini lifting crane/swing arm hoist
This series can turn around 360degree.Its can ensure the hoisting cable to array orderly during lifting work.It is widely used in various fields like construction,installation and agriculture work.
Features of 30m mini lifting crane
- Convenient to carry: This product small size, light weight, compact structure, easy to carry.
- Installation: placed near the window (or balcony) place, set up the the rest, five minutes can be installed.
- Hoisting fast: Suitable for places (indoor and outdoor) hoisting materials hoist 1 meter just need 4 seconds , Ten floors of the height just need 3 minutes to play back-and-forth
- Wide application scope : Using the 220/380 volts single-phase power, used for decoration company, hoisting company, installation company, moving company, factory workshop, repair departments, storage warehouse etc. for Various industry and households.
- Easy to operate, safe and reliable: A hour can learn to operate the machine,can be learned just according the manual operation. If need to immediately stop, only need to cut off the power supply, it will be safe and reliable.
Parameters of 30m mini lifting crane
|
Item |
Lift capacity (kg) |
Voltage |
Rate power (kw) |
Lift height (m) |
Dia. of wire rope (mm) |
Length of wire rope (m) |
Rotating arm length (mm)
|
Valid arm length (mm) |
Installation height (mm) |
Weight (kg) |
|
Single-column lifting machine |
280 380 480 |
220V 50HZ |
1.3-1.8-2.2 |
30-100 |
6 |
30 |
1160 |
950 |
1800-3200 |
60;63; 68;75 |
|
Double-column lifting machine |
180 280 380 480 |
220V 50HZ |
1.3-1.8-2.2 |
100 |
6 |
15-30 |
1160 |
950 |
1800-3200 |
65;70; 74;80 |
|
Outdoor lifting machine |
380 |
220/380V 50HZ |
3 |
3-100 |
8 |
30 |
1160 |
950 |
1800-3200 |
76 |
|
Full Angle lifting machine |
280, 380, 480 |
220V 50HZ |
1.5;1.7;2.2 |
3-100 |
6/7 |
30 |
1160 |
950 |
1800-3200 |
80;82; 95 |
|
Full Angle lifting machine |
380 |
220/380V 50HZ |
3 |
3-100 |
8 |
30 |
1160 |
950 |
1800-3200 |
100 |
|
Jib lifting machine |
280; 380; 480 |
220V 50HZ |
1.5;1.7;2.2 |
120 |
6/7 |
30 |
1270 |
950 |
1800-3200 |
70;72; 88 |
|
Push-pull lifting machine |
300, 400, 480 |
220V 50HZ |
1.3;1.8;2.2 |
3-100 |
5/6 |
30 |
1270 |
950 |
1800-3200 |
75;77 ;90 |
|
Slide-type lifting machine |
300, 400
|
220V 50HZ |
1.3;1.8;2.2 |
3-100 |
5/6 |
30 |
1160 |
950 |
1800-3200 |
110;112; 125 |
