Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Industrial
-
Type:
-
kwikstage
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCH
-
Model Number:
-
K004
-
Name:
-
real estate use scaffolding cross brace
-
Material:
-
Q235 Steel
-
Surface treatment:
-
Galvanized
-
Certificate:
-
AS1576
-
Diameter:
-
48.3mm
-
Tube thickness:
-
3.0mm
-
Payment:
-
T/T
-
Packing:
-
Steel Pallet
-
function:
-
shoring
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Apartment
-
Design Style:
-
Industrial
-
Type:
-
kwikstage
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JCH
-
Model Number:
-
K004
-
Name:
-
real estate use scaffolding cross brace
-
Material:
-
Q235 Steel
-
Surface treatment:
-
Galvanized
-
Certificate:
-
AS1576
-
Diameter:
-
48.3mm
-
Tube thickness:
-
3.0mm
-
Payment:
-
T/T
-
Packing:
-
Steel Pallet
-
function:
-
shoring

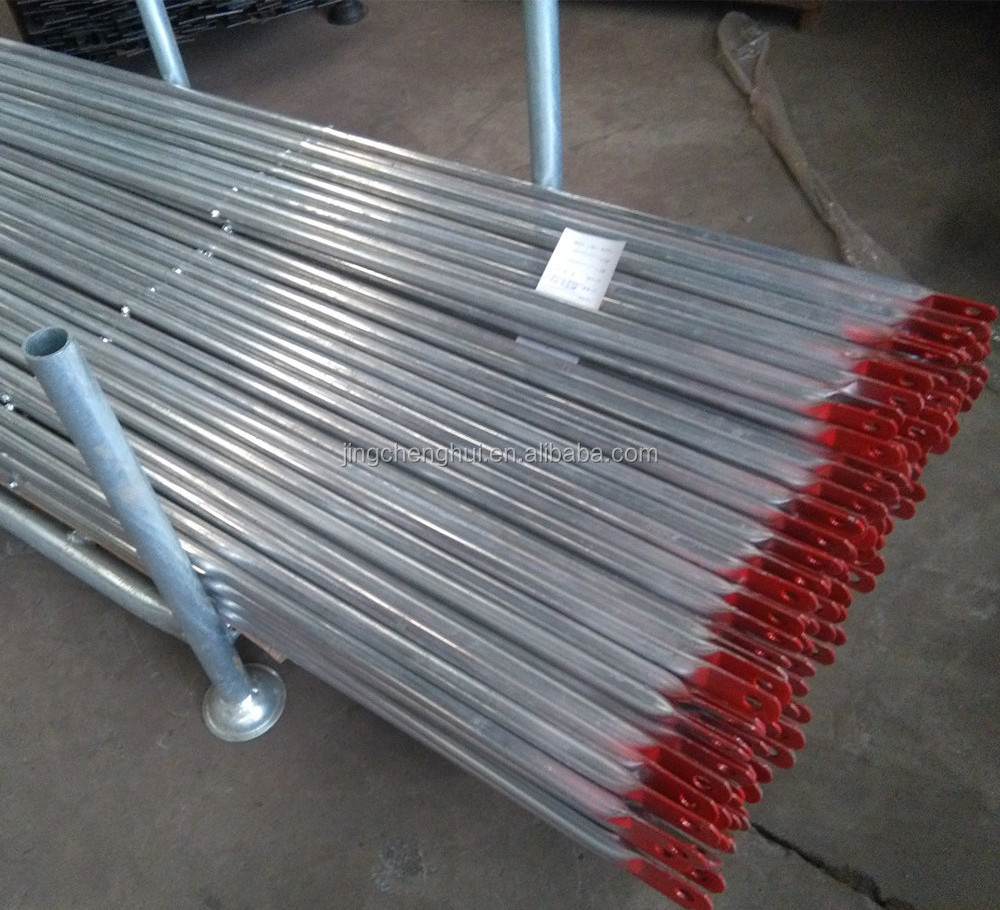

real estate use scaffolding cross brace
Feature:
1. Material: Q235/Q345
2. Surface treatment: paint,galvanized,powder coated
3. Special size can be made according to your design drawing.
4. ISO 9001-2000 approved and OEM service offered
5. Safe and standard package,timely delivery.
6. High quality, resonable price, best service.
Specifications
| Scaffolding diagonal brace | Painted | HDG |
| 48.3*3.0mm | Weight(kg) | Weight(kg) |
| Length:1700mm | 7.9 | 8.2 |
| Length:2100mm | 8.5 | 8.9 |
| Length:2700mm | 11.0 | 11.7 |
| Length:3200mm | 12.7 | 13.6 |
| Length:3600mm | 14.3 | 15.1 |
We supply all kinds of kwikstage scaffoldings,ringlock scaffoldings , and cuplock scaffoldings.
And include the parts: standard, ledger,transom,diagonal braces,tie bar, bracket,steel plank etc.
Adopt dip painting, electro zinc plating and hot dip galvanizing technology to do surface process
