Quick Details
-
Rolling thinckness:
-
0.25-0.8MM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSSMAN
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
9500*1500*1200
-
Weight:
-
8000 kg
-
Material thickness:
-
0.25-0.8mm galvanized steel,color steel
-
Producting speed:
-
8-12m/min
-
Roller station:
-
About 20 roller stations
-
Hydraulic station:
-
7.5KW
-
Main Power:
-
4KW
-
Materia of cutting:
-
Hydraulic Shear, Cr12Mov
-
Decoiler:
-
Includes 10,000 lb manual uncoiler
-
Machine weight:
-
17000lbs
-
Shaft Material and DIA:
-
75mm,material is 45# forge steel, Chrome with quenching
-
Profile height:
-
4 Rib 36'' x 1 1/4'' High Ribs
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
8-12m/min
-
Rolling thinckness:
-
0.25-0.8MM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSSMAN
-
Voltage:
-
380V 50Hz 3phases
-
Dimension(L*W*H):
-
9500*1500*1200
-
Weight:
-
8000 kg
-
Material thickness:
-
0.25-0.8mm galvanized steel,color steel
-
Producting speed:
-
8-12m/min
-
Roller station:
-
About 20 roller stations
-
Hydraulic station:
-
7.5KW
-
Main Power:
-
4KW
-
Materia of cutting:
-
Hydraulic Shear, Cr12Mov
-
Decoiler:
-
Includes 10,000 lb manual uncoiler
-
Machine weight:
-
17000lbs
-
Shaft Material and DIA:
-
75mm,material is 45# forge steel, Chrome with quenching
-
Profile height:
-
4 Rib 36'' x 1 1/4'' High Ribs
Product Description

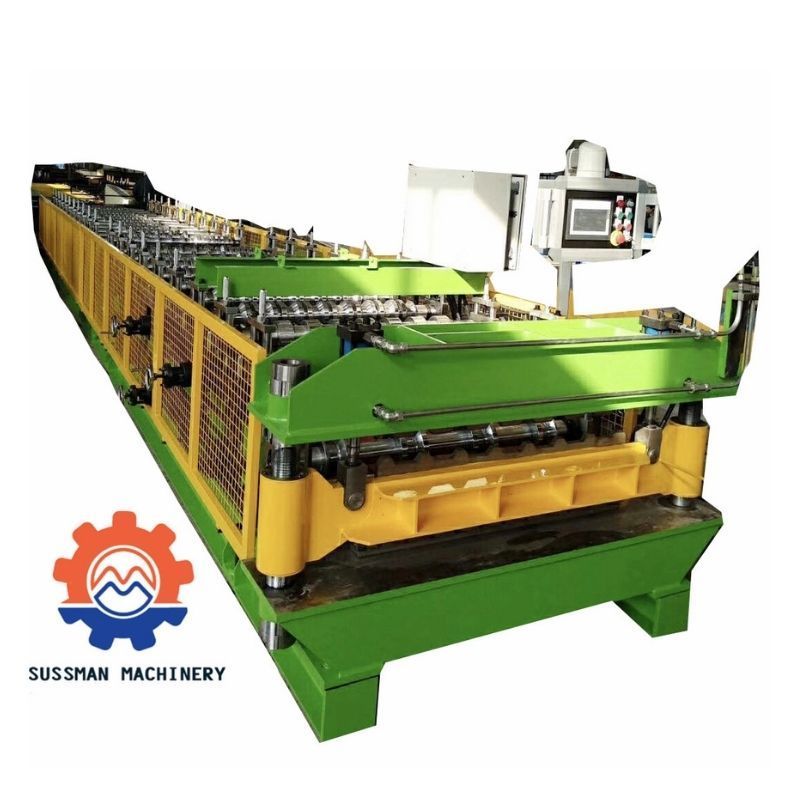

Roofing system roll forming machine has a big range of metal sheet profiles. It includes trapezoidal sheets panel, PV-4, PV-6, 5V, TR4, TR5, TR6, T40, and Spandek, also in America area, PBR profile, PBU profile, R panel, 3'' N deck profile, 2'' N deck profile, etc. Its products are widely used in roof and wall system in workshop construction and housing construction.
Roof Zinc Machine can produce material thickness range 0.3-0.8mm or 0.12-0.4mm, material PPGI, galvalume steel and galvanized steel, also we can customized the machine according to your drawing.
Different countries has different its own commonly used profiles and name. Here are some popular drawing profiles selected by our customers:
America Area:
1.ACANALADORA PARA LAMINA TR-90
2. ACANALADORA DE LAMINA R-72
3. CONFORMADORA PARA PLANCHA PV4/ PV6
4. CONFORMADORA PARA CHAPA R-101
5. CONFORMADORA PARA CALAMINA TR4
6. Acanaladora para lamina TR101
7. Perfil de telha Trapezio 25/1020
8.Acanalada de Onda
9. Acanalada 5-V
10. PBR panel or R panel
11. PBU Panel or U panel
UK: Box profile roll forming machine
Africa: IBR 686 roll forming machine
828mm Tile roll forming machine
|
Name
|
Items
|
Specifications
|
|
Material of coil
|
Material Thickness
|
0.3—0.8mm PPGI, Aluzinc, galvanized steel
|
|
|
Un Coiler
|
5 tons manual
|
|
Forming system
|
Rolling Speed
|
About 8-12m/min
|
|
|
Roller Stations
|
About 20 stations
|
|
|
Roller material
|
45# steel, coated with chrome
|
|
|
Maim Motor Power
|
7.5kw
|
|
|
Hydraulic cutting Power
|
4kw
|
|
Cutting
system |
Material Of Cutting
|
CR12Mov with quench treatment
|
|
|
Hardness
|
HRC58-62
|
|
|
Tolerance
|
+-1.5mm
|
|
Electrical control system
|
Electric Source
|
380V, 50HZ,3 phase
Also can satisfy customer’s require |
|
|
Control System
|
PLC with touch screen
|
|
|
Way Of Drive
|
1.2 inch single chain
|
|
|
Color of the machine
|
Customized
|
|
|
Machine size
|
About 9500*1500*1200mm
|
Detailed Images
Un-coiler: 5 tons passive (
10,000 lbs)
De-coiling Holder: about 1500mm×1500mm×1700mm
Insider diameter of the un-coiler: 460-520mm
Cutting way: Hydraulic cut.
Oil pump statio:1set.
Hydraulic power: 4kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm
Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)
Size:4000*1350*1000mm
Profile we make
R Panel is a multi-use wall and roof panel used primarily in pre-engineered metal building applications. R-Panel is also a popular choice for residential metal roofing system, especially in the Southwest. An optional purlin bearing leg (PBR) rests on purlins and provides support for fastening the panel lap.
Installation of R-panel roofs requires a minimum slope of 1:12 and butyl sealant should be utilized in the laps.
- Standard 26 GA Galvalume (roof and wall panels)
- Optional 24, 22 GA Galvalume (wall panels only)
Other profile we can make
Maintance and the service of the machine
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
