Quick Details
-
Place of Origin:
-
Shandong,china
-
Brand Name:
-
Haniuote
-
Model Number:
-
D320
-
Dimension(Long * Breadth * High):
-
6535*4150*3515
-
Model:
-
D320
-
Engine:
-
Cummins
-
Rated power:
-
257/2000
-
Grounding length:
-
3150mm
-
weight:
-
37.2T
-
pitch:
-
228.6mm
-
Color:
-
Yellow
-
Quality:
-
Excellent
-
Track Gauge:
-
2000mm
-
Gradeability:
-
30°
Quick Details
-
Machine Weight:
-
37.2 KG
-
Dozing Capacity:
-
10m³
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Shandong,china
-
Brand Name:
-
Haniuote
-
Model Number:
-
D320
-
Dimension(Long * Breadth * High):
-
6535*4150*3515
-
Model:
-
D320
-
Engine:
-
Cummins
-
Rated power:
-
257/2000
-
Grounding length:
-
3150mm
-
weight:
-
37.2T
-
pitch:
-
228.6mm
-
Color:
-
Yellow
-
Quality:
-
Excellent
-
Track Gauge:
-
2000mm
-
Gradeability:
-
30°
Product Overview
320 HP Series

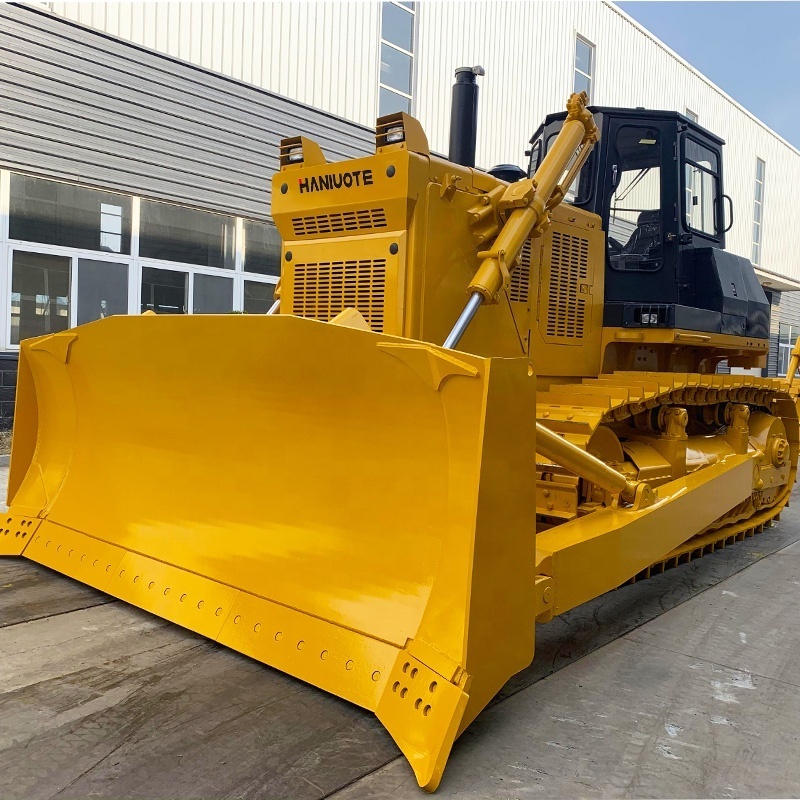

D320 Crawler bulldozers, meeting the national III emission requirements, is a high-power bulldozer that adopts domestic leading process production technology and standardized mass production. The whole machine adopts advanced hydraulic transmission and hydraulic control technology, with advanced and reasonable structure, light and flexible operation, and reliable quality.
D320 Standard Bulldozer Product features
● Resend the
Cummins
QSNT-C345S30 engine with high power, low fuel consumption, and exhaust gas turbocharger, which can still maintain normal operation at 4300m above sea level.
● High reliability power shift gearbox, stable hydraulic torque converter, and final drive with two-stage straight tooth structure can efficiently transmit power, with high transmission power and high production efficiency.
● The independent engine cooling water tank, chassis oil cooler, and the water and air cooler provided by the engine provide excellent cooling performance and simple maintenance operation for this equipment, which can ensure the continuous operation of the machine.
● The standard straight tilt bulldozer has a strong cutting force. The single tooth and three tooth scarifiers have adjustable insertion angles, which can be used for loosening clay, frozen soil and other soil layers, as well as for stripping gravel, hardened salt mines and other hard working surfaces.
PRODUCT SPECIFICATIONS
|
NO.
|
Model
|
D320
|
|
1
|
Dimension (mm) (without scarifier)
|
6535×4150×3515
|
|
2
|
Operating weight (T) (without scarifier)
|
37.2
|
|
3
|
Engine Mode
|
QSNT-C345S31
|
|
4
|
Power (kw/r/min)
|
257/2000
|
|
5
|
Minimum fuel consumption g/KW. h
|
245
|
|
6
|
Grounding length (mm)
|
3150
|
|
7
|
Ground specific pressure (MPa)
|
0.105
|
|
8
|
Minimum ground clearance (mm)
|
500
|
|
9
|
Gradeability (°)
|
30
|
|
10
|
No of track shoes (each side)
|
41
|
|
11
|
Width of Track shoe (mm)
|
560
|
|
12
|
Track Gauge (mm)
|
2000
|
|
13
|
pitch (mm)
|
228.6
|
|
14
|
No of carrier rollers (each side)
|
2
|
|
15
|
No. of Track roller (each side)
|
7
|
|
16
|
Maximum traction force (KN)
|
881
|
|
17
|
Blade type
|
Straight-tilt Blade Semi-U-Blade Angle Blade
|
|
18
|
|
Straight-tilt Blade:4150×1592
|
|
18
|
Blade length x height (mm)
|
Semi-UBlade:4150×1712
|
|
|
|
Angle Blade:5000×1142
|
|
|
|
U:4440×1740 U Blade:4440×1740
|
|
19
|
Blade Capacity( ㎡)
|
Straight-tilt Blade10/ Semi-U-Blade 11.7/ Angle Blade6.2/U Blade 16.2
|
|
20
|
Blade lift height(mm)
|
1560/1560/1703/1560
|
|
21
|
Blade depth(mm)
|
560/560/630/560
|
|
22
|
Maximum inclination of blade (mm)
|
Straight-tilt Blade 100 Angle Blade 500 Semi-U-Blade 1000 U Blade 1000
|
|
23
|
Forward(km/h)
|
F1:0 〜 3.6/F2:0 〜 6.6/F3:0 〜 11.5
|
|
24
|
Reverse (km/h)
|
R1:0 〜 4.4/R2:0 〜 7.8/R3:0 〜 13.5
|
|
25
|
Coolant capacity (L)
|
121
|
|
26
|
Fuel tank capacity (L)
|
640
|
PRODUCT CONFIGURATION
